Intermediate Connector (F-12) Connector End View

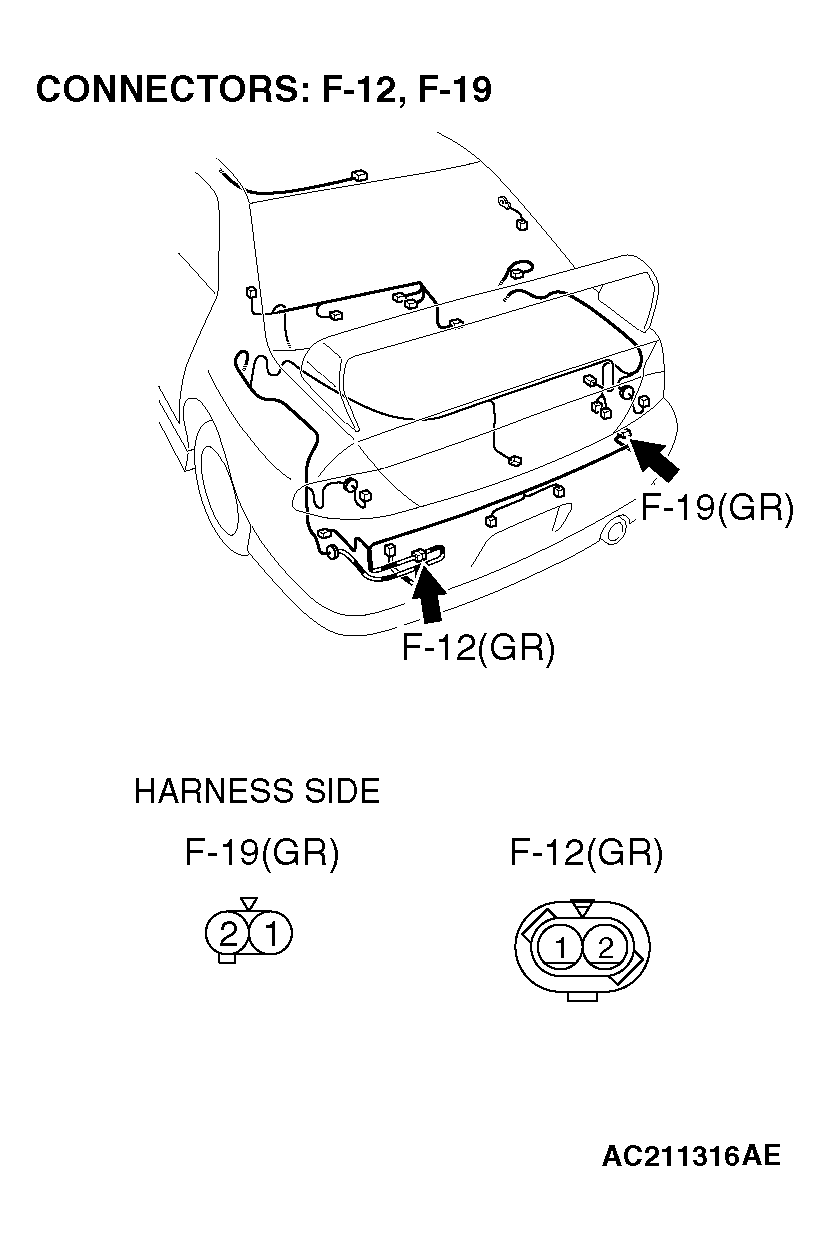

Fig 1: Intermediate Connector (F-12) Connector End View

G04299106

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
