Disassembly And Assembly: Notes

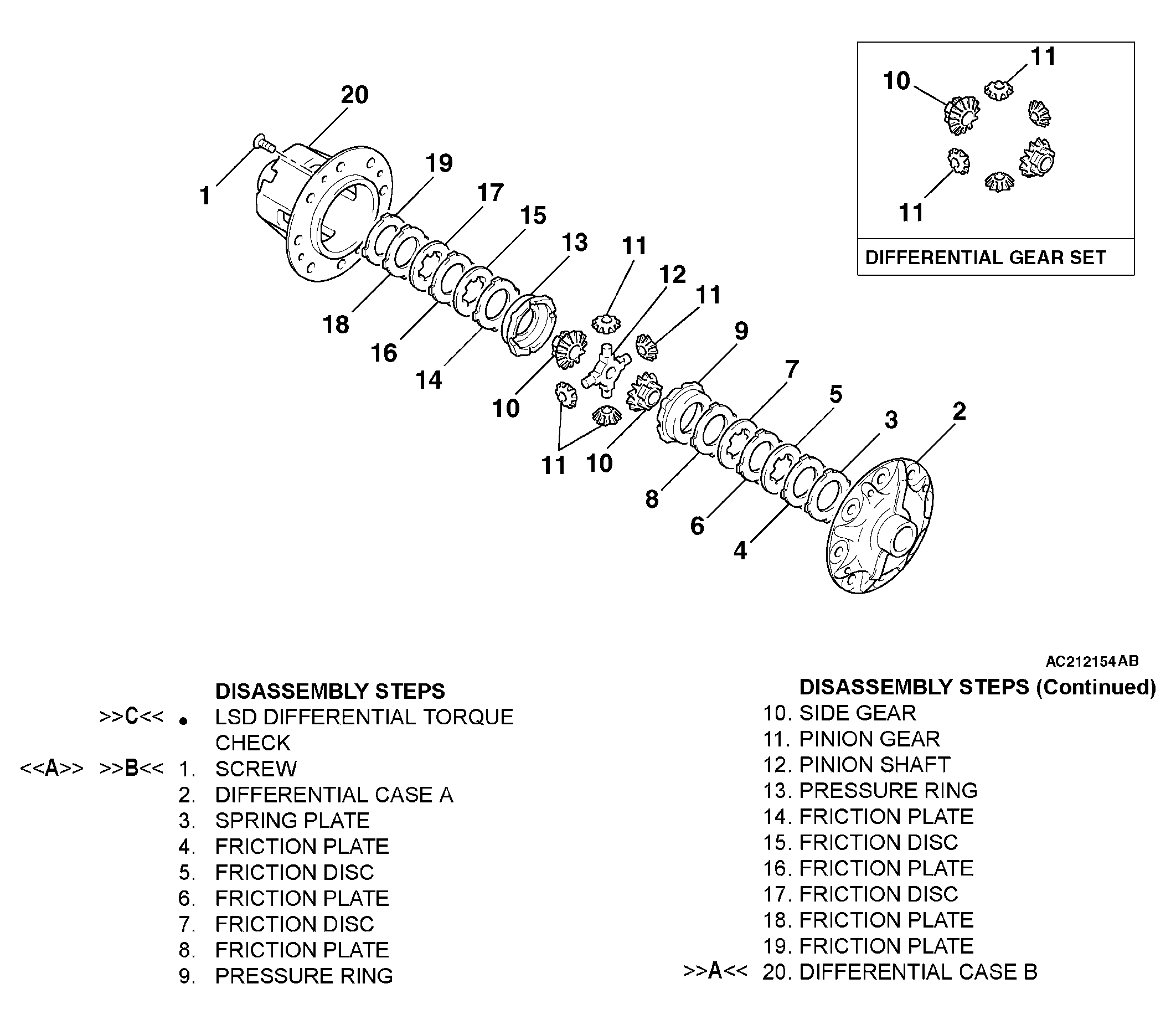

Fig 1: Disassembling/Assembling Of Differential Gears
G04297155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
