Home >> Mitsubishi >> 2006 >> Lancer Evolution >> Repair and Diagnosis (Single Page) >> Transmission >> Manual Trans >> Overhaul >> Select Lever >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

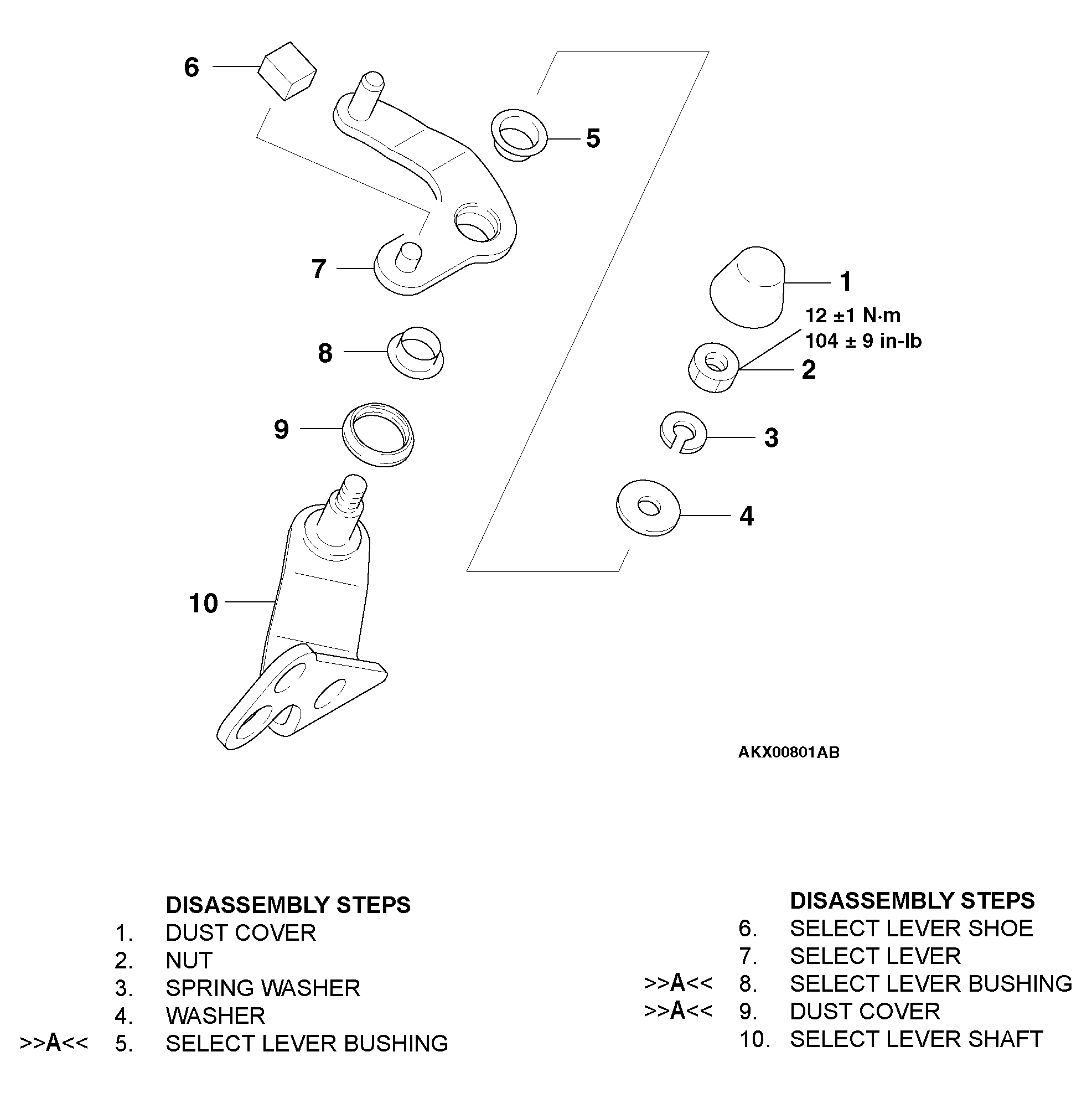

Fig 1: Disassembling/Assembling Of Select Lever

G04275882

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
