>>D<< Synchronizer Spring Installation

Install the synchronizer spring onto the synchronizer ring as shown.

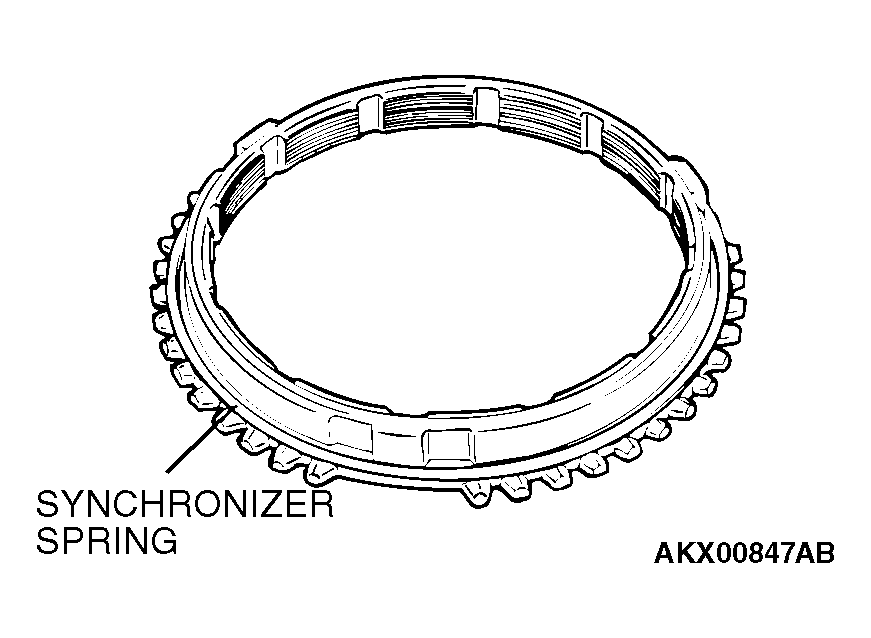

Fig 1: Identifying Synchronizer Ring

G04275825

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
