INSPECTION PROCEDURE 3: The ACD Mode Indicator Light Does Not Light Up When The Ignition Switch Is Turned "ON" (Engine Is Stopped).: Notes

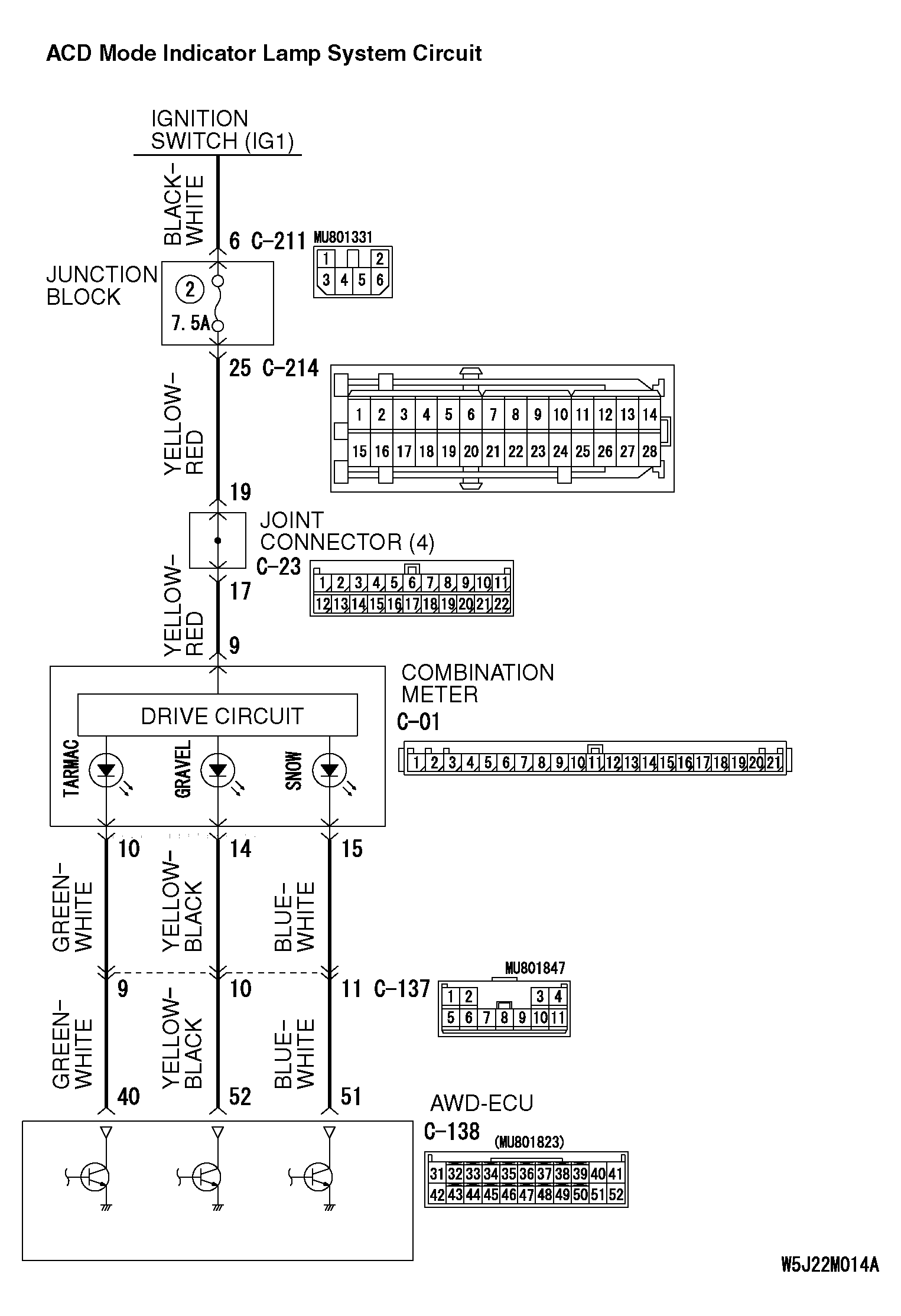

Fig 1: ACD Mode Indicator Lamp System Circuit Diagram (1 Of 2)
G04296577Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
