Home >> Mitsubishi >> 2006 >> Lancer Evolution >> Repair and Diagnosis (Single Page) >> Restraints >> Passive Restraints >> Interior - Lancer Evolution >> Front Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

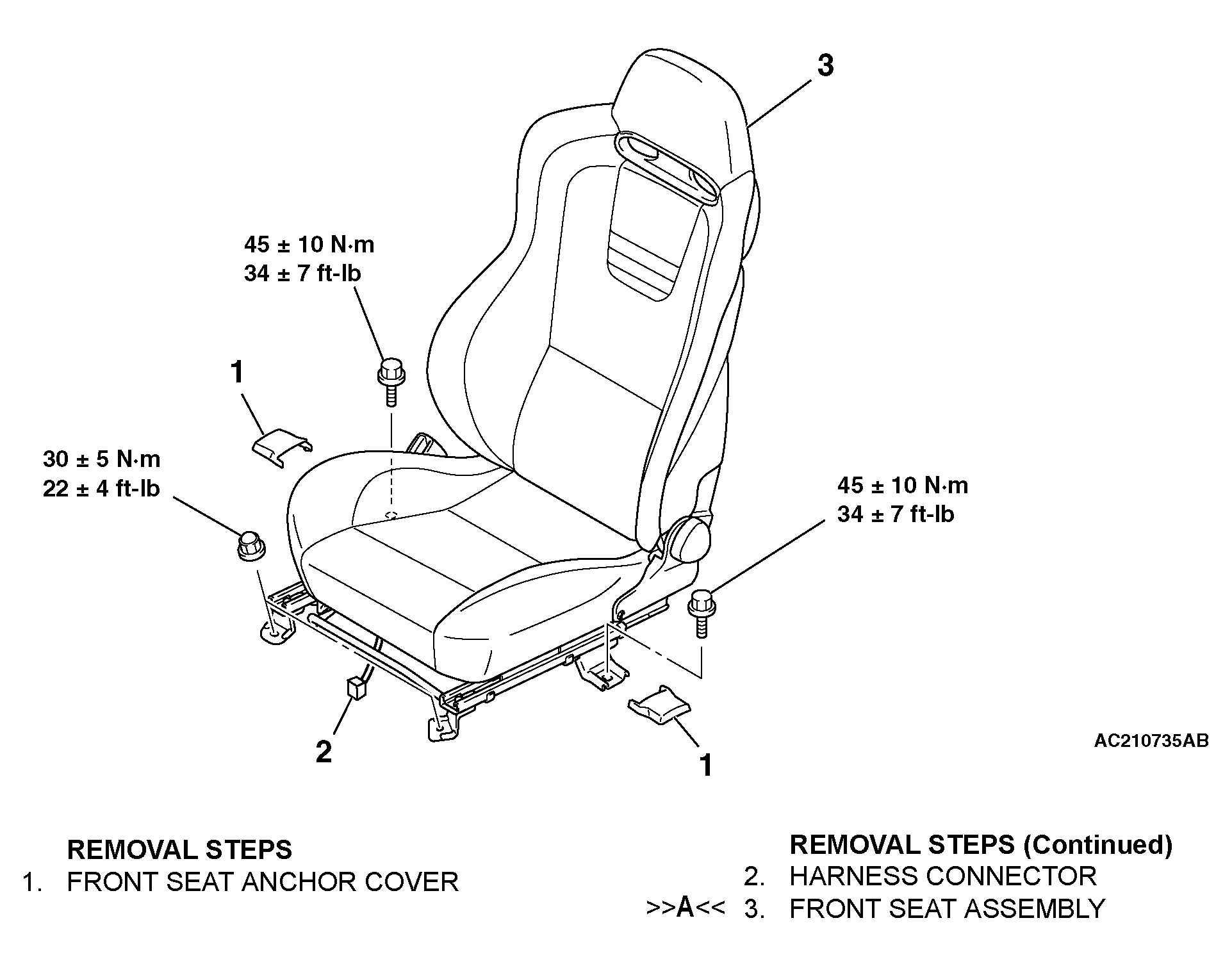

Fig 1: Removing/Installing Front Seat Assembly

G04297866

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
