Fog Light Relay Connector End View
Fog Light Relay Connector End View

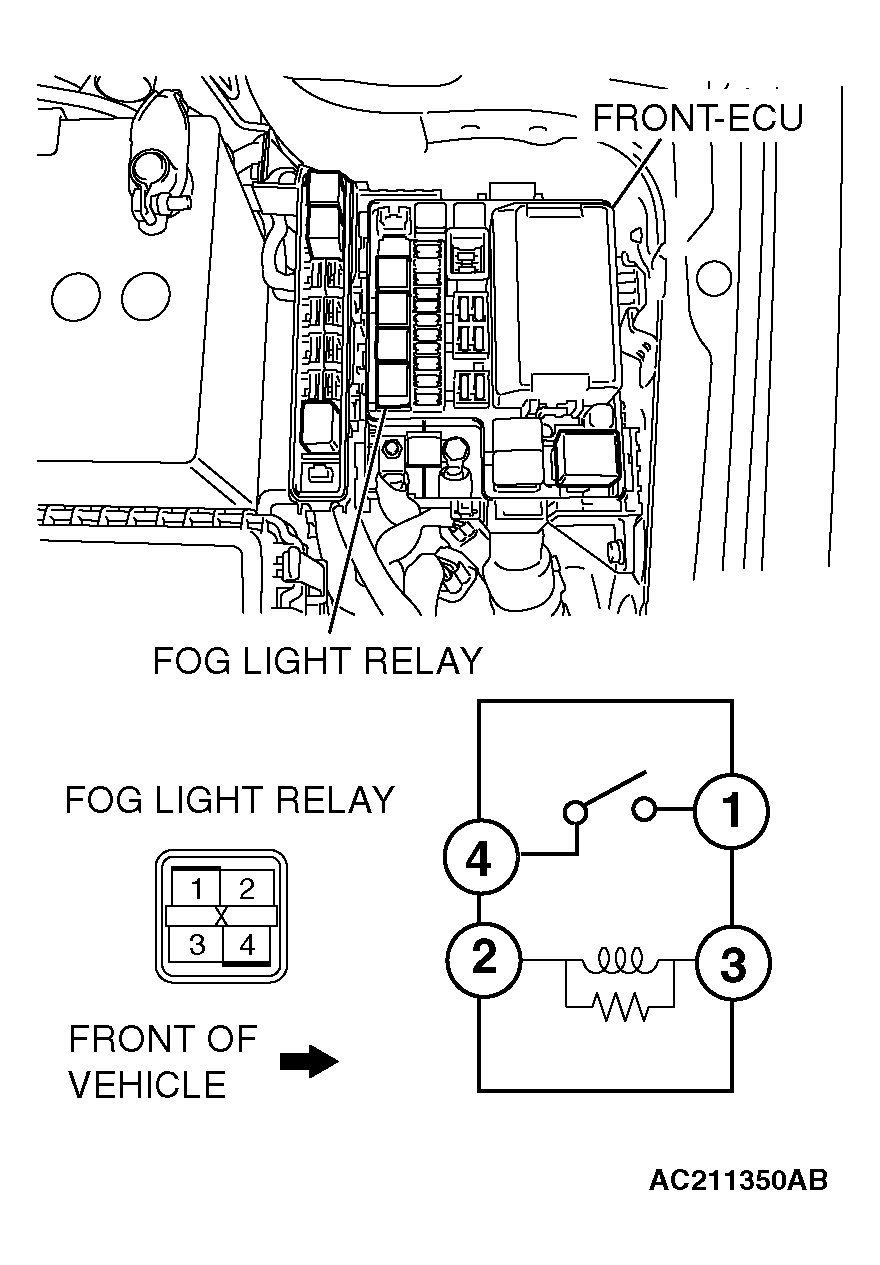

Fig 1: Fog Light Relay Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
