Disassembly And Assembly: Notes

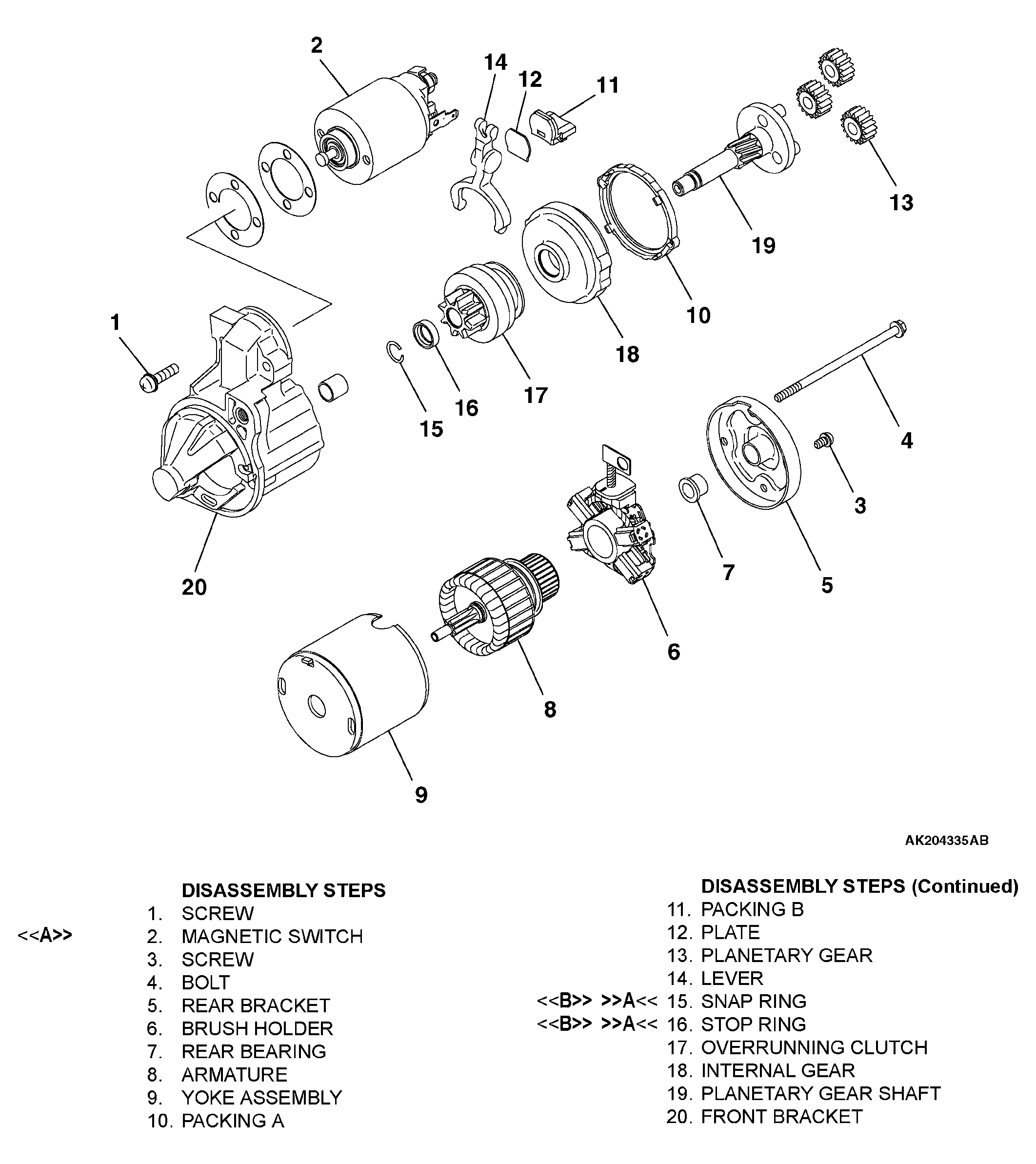

Fig 1: Disassembling/Assembling Starting System

G04296109

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
