<< B >> Alternator Pulley Removal

CAUTION: Perform operation carefully, to prevent damaging the rotor.

Clamp the rotor in a vise with the pulley facing up to remove the pulley.

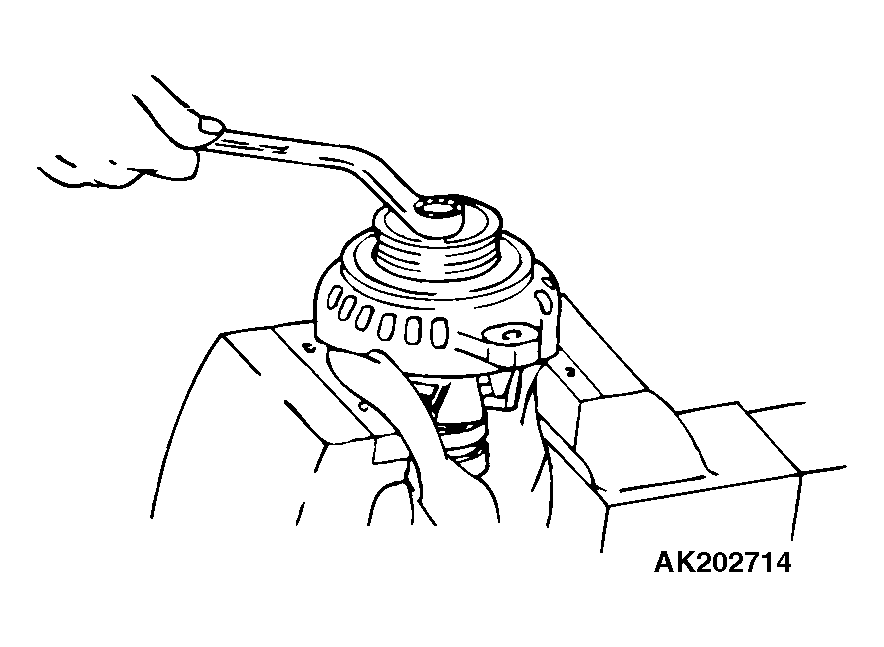

Fig 1: Removing Alternator Pulley
G04296085Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
