Removal And Installation: Notes

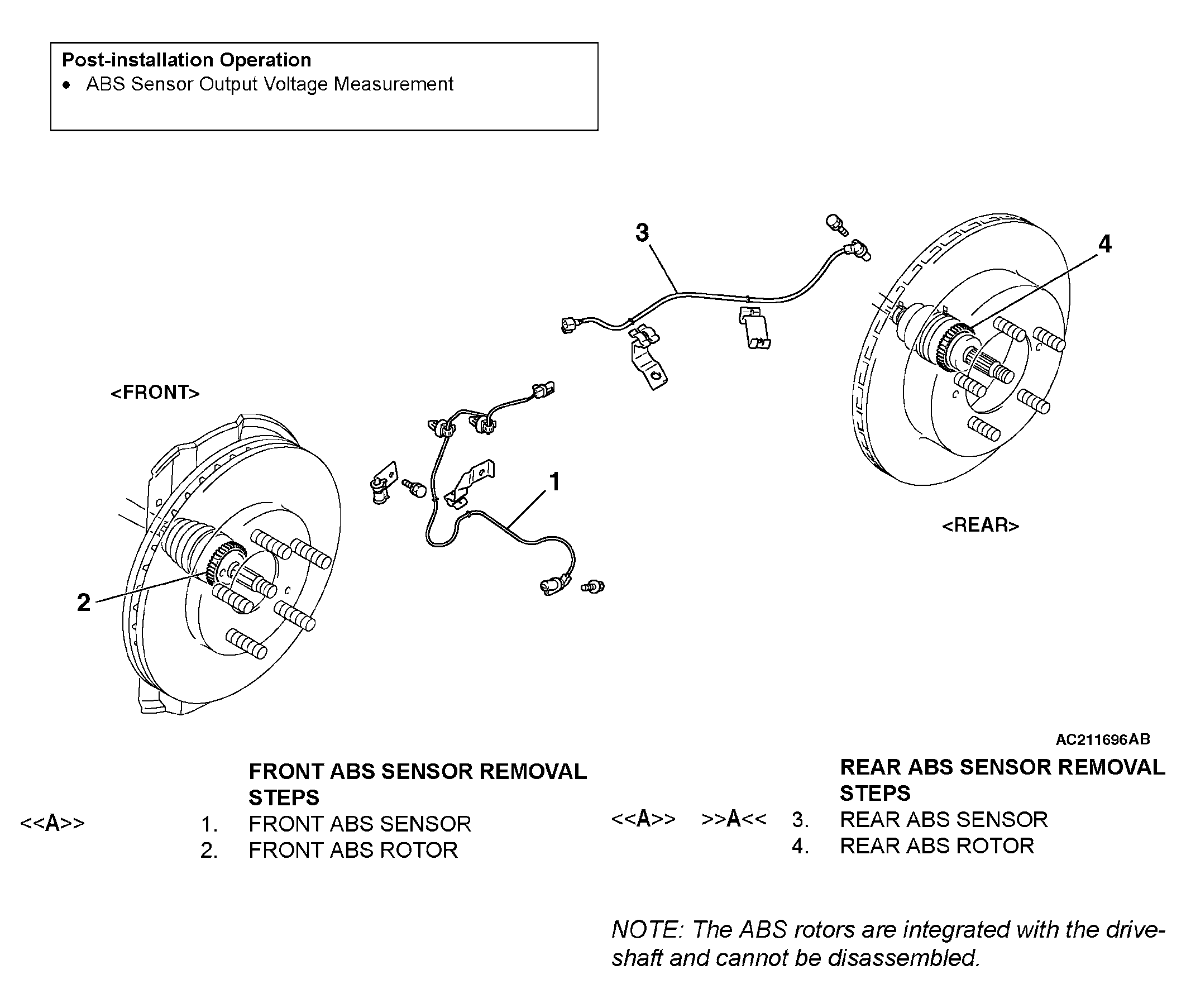

Fig 1: Removing/Installing ABS Sensor
G04297530Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
