INSPECTION PROCEDURE 1: When Power Switch is Turned "ON," No Power is Available.: Notes

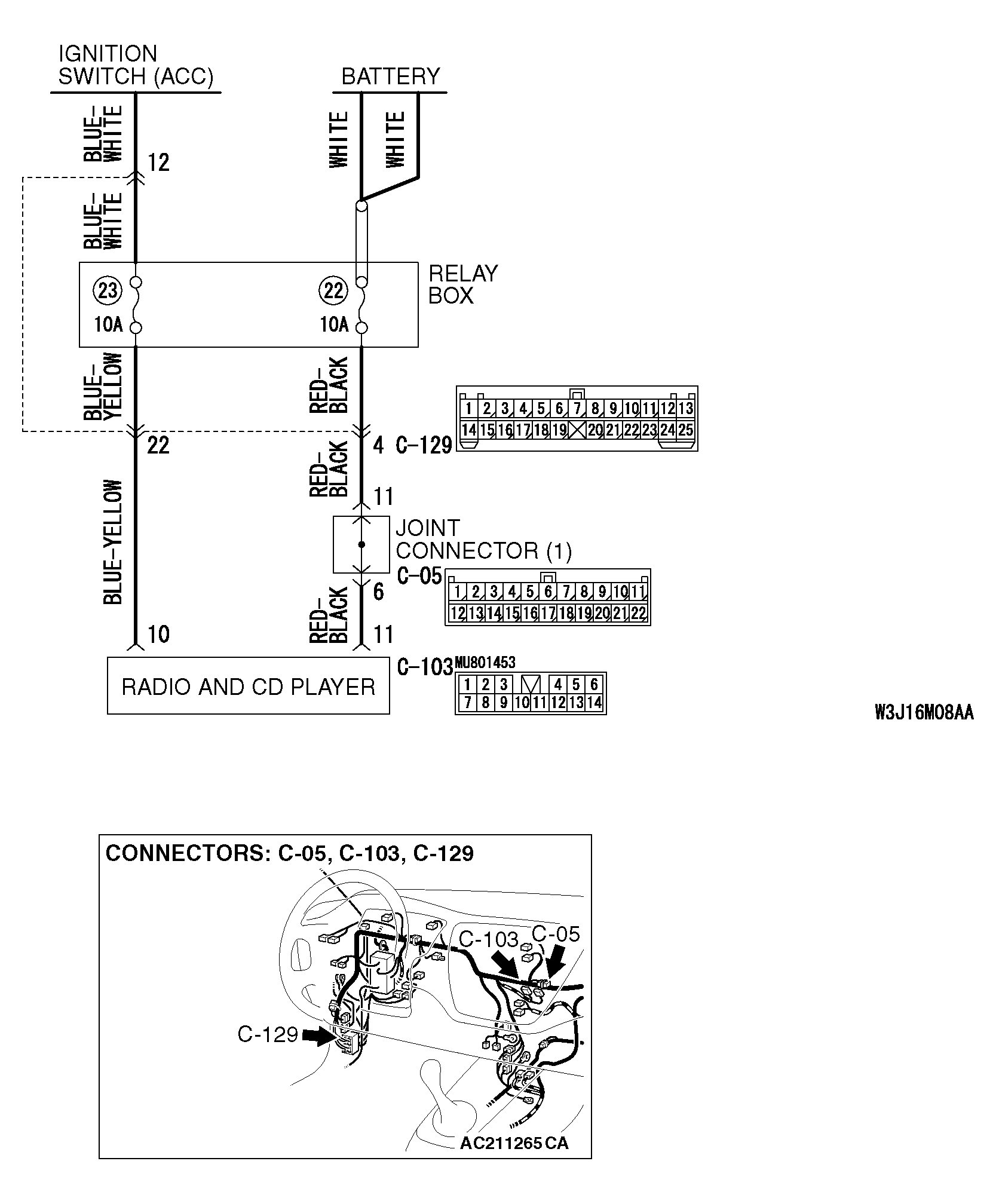

Fig 1: Power Switch Circuit Diagram

G04298414

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
