Disassembly And Assembly: Notes

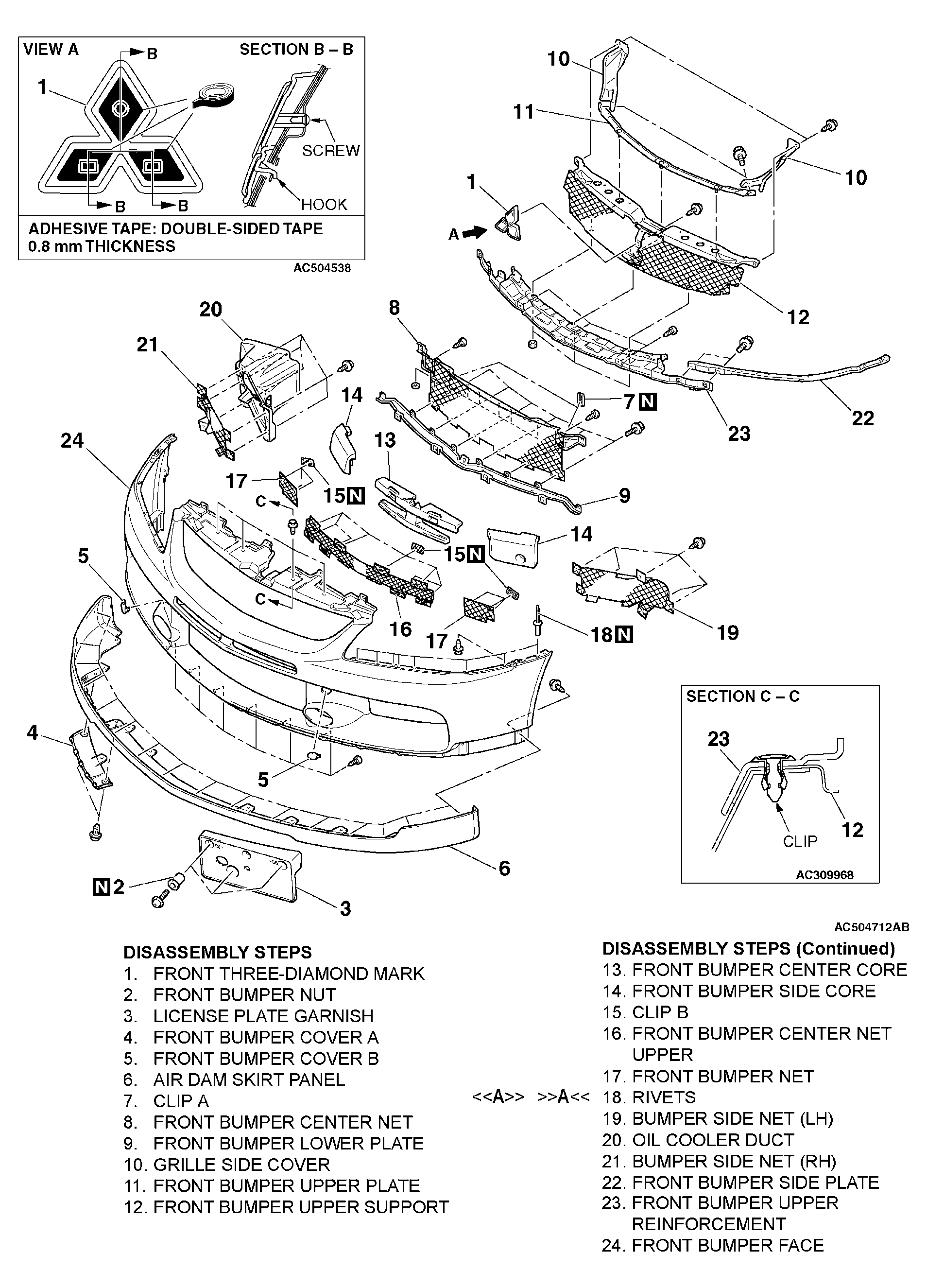

Fig 1: Exploded View Of Front Bumper Assembly

G04297770

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
