Lowers The Driver's Power Window By One-Touch Function

When the front (LH) switch on the power window main switch is pushed down fully, the system energizes its respective power window regulator motor, and then the driver's window glass moves to its lowest position.

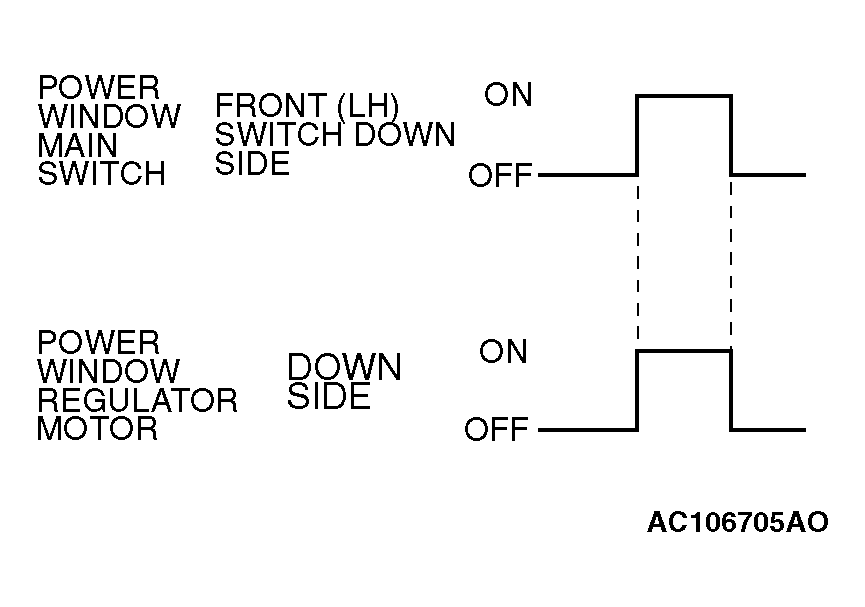

Fig 1: Drive Pattern - Lower Driver's Power Window
G04298705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
