INSPECTION PROCEDURE A-3: Communication with the ETACS-ECU is not possible.: Notes

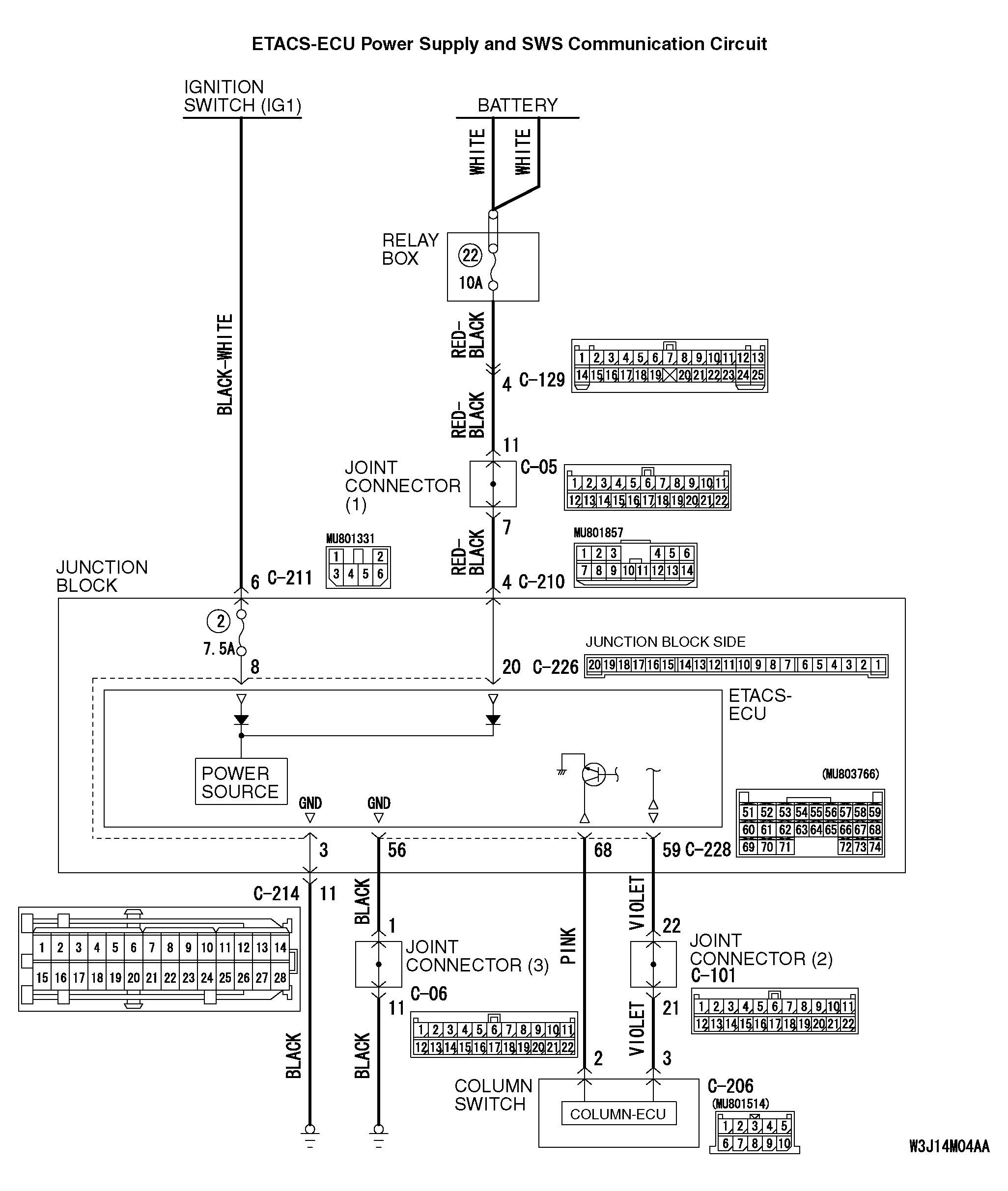

Fig 1: ETACS-ECU Power Supply And SWS Communication Circuit Diagram (1 Of 2)
G04298578Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
