INSPECTION PROCEDURE O-2: The ETACS-ECU does not receive any signal from the hazard warning light switch.: Notes

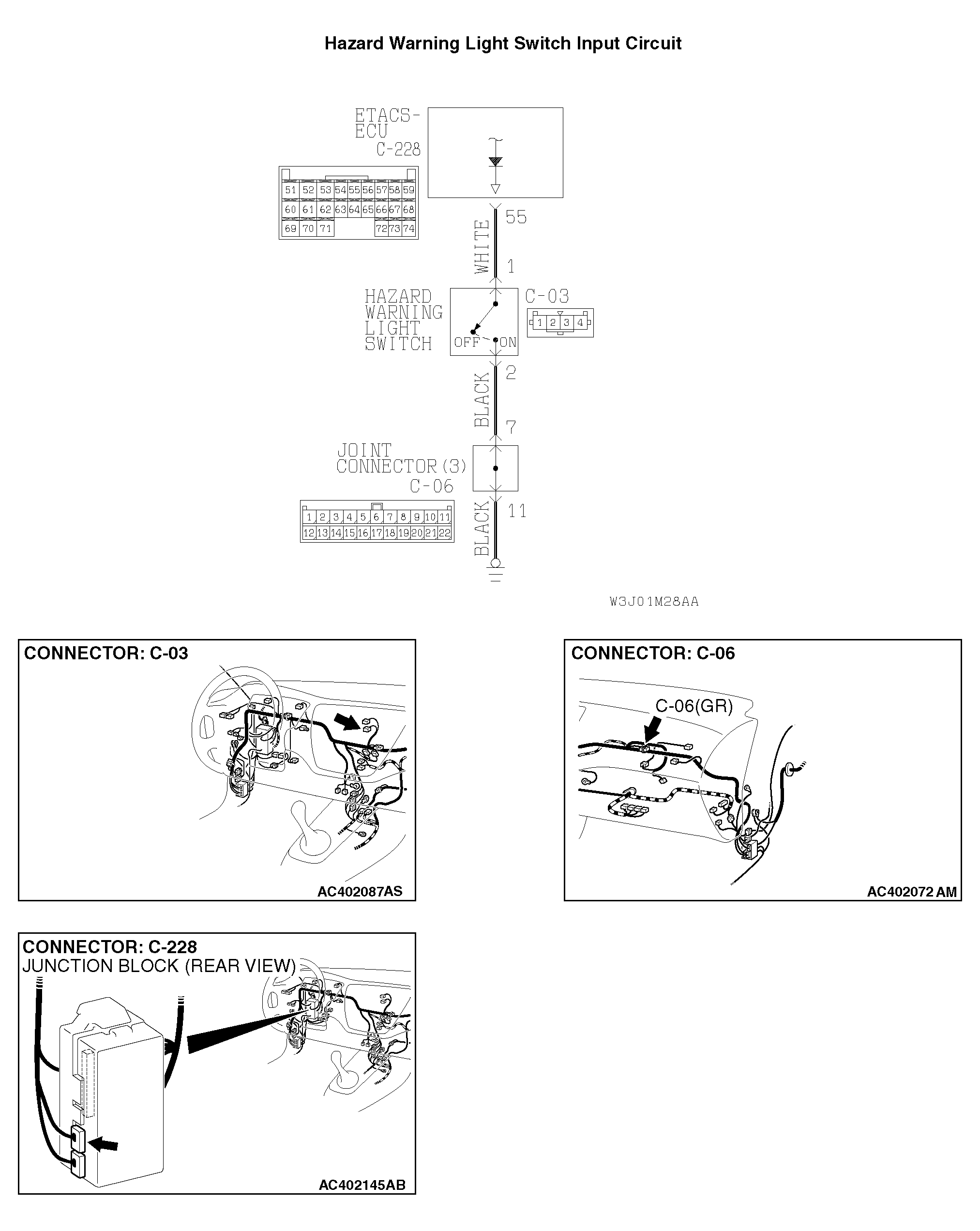

Fig 1: Hazard Warning Light Switch Input Circuit Diagram
G04299419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
