INSPECTION PROCEDURE N-1: The ETACS-ECU does not receive any signal from the ignition switch (ACC).: Notes

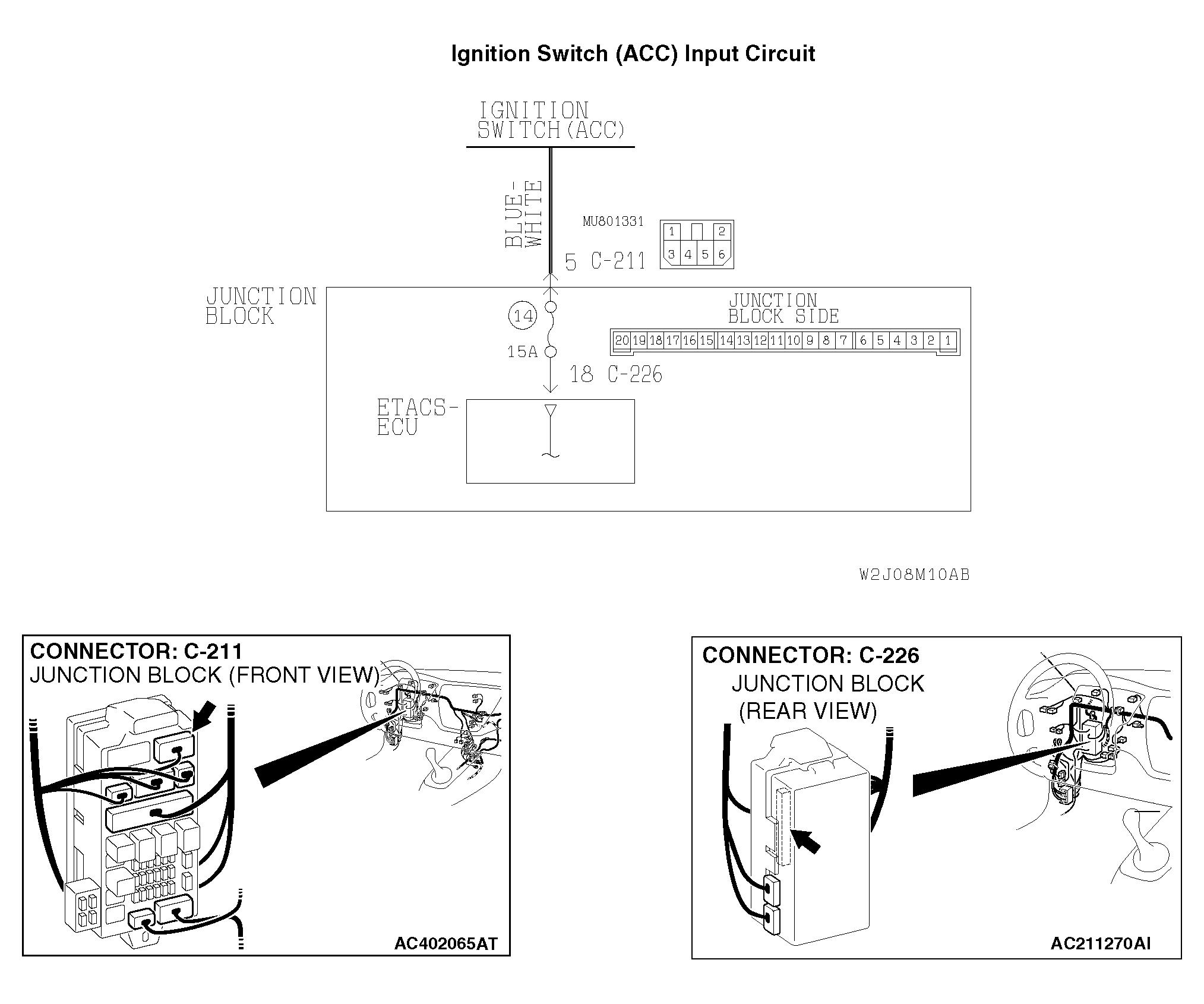

Fig 1: Ignition Switch (ACC) Input Circuit Diagram
G04299339Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
