Home
>>
Mitsubishi
>>
2006
>>
Lancer Evolution RS
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior - Lancer Evolution
>>
Door Trim
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

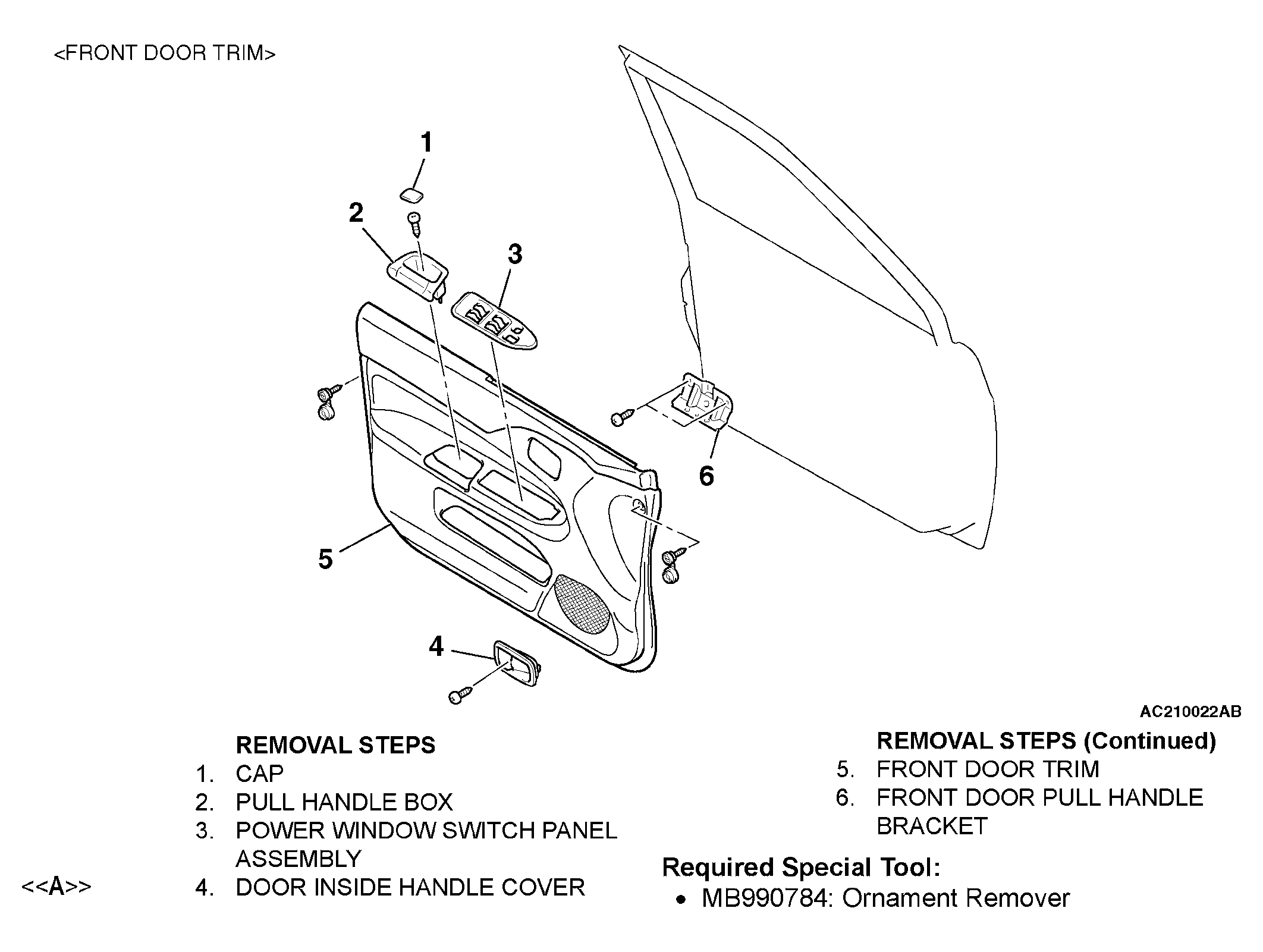

Fig 1: Removing/Installing Door Trim (Front Door Trim)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB990784: Ornament Remover

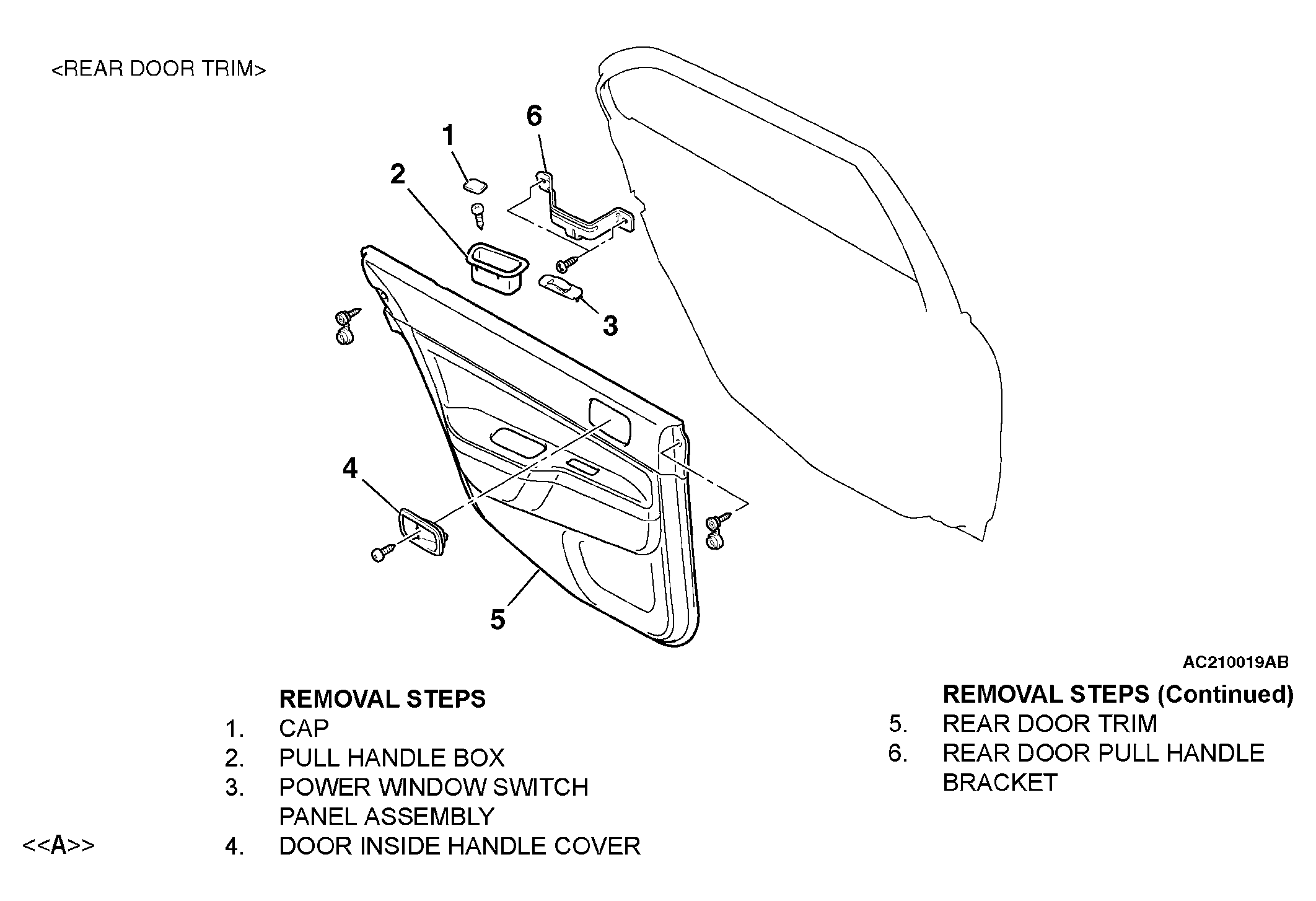

Fig 2: Removing/Installing Door Trim (Rear Door Trim)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB991784: Ornament Remover
