Disassembly And Assembly < 2.0 L>: Notes

WARNING: This page is about a different variant/trim than selected.

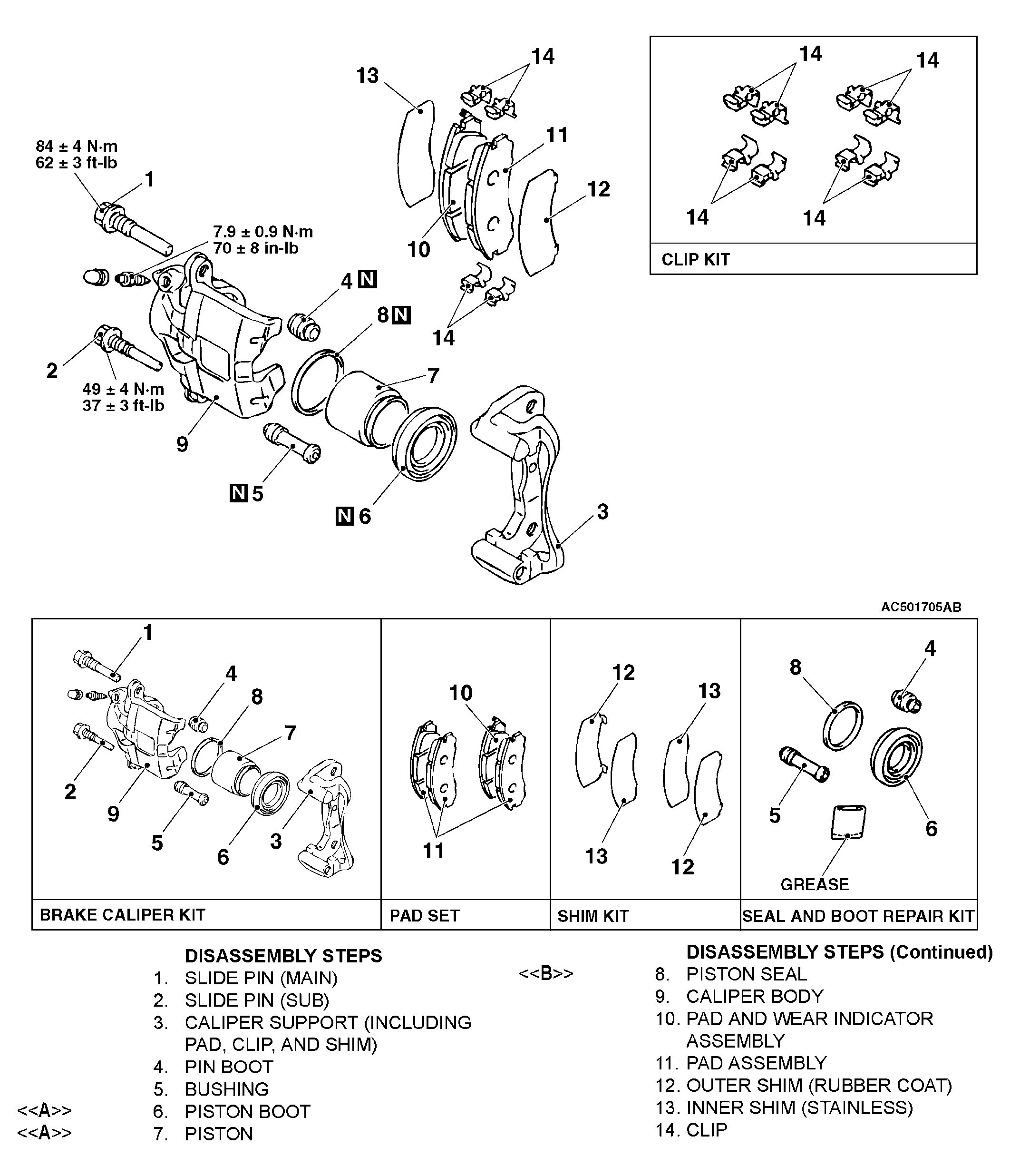

Fig 1: Exploded View Of Front Disc Brake Assembly
G04277631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
