Lowers The Passenger's Power Window

WARNING: This page is about a different car, the 2005 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

When the passenger's power window switch on the power window main switch is pushed down, the system energizes its respective power window motor, and then passenger's window glass lowers.

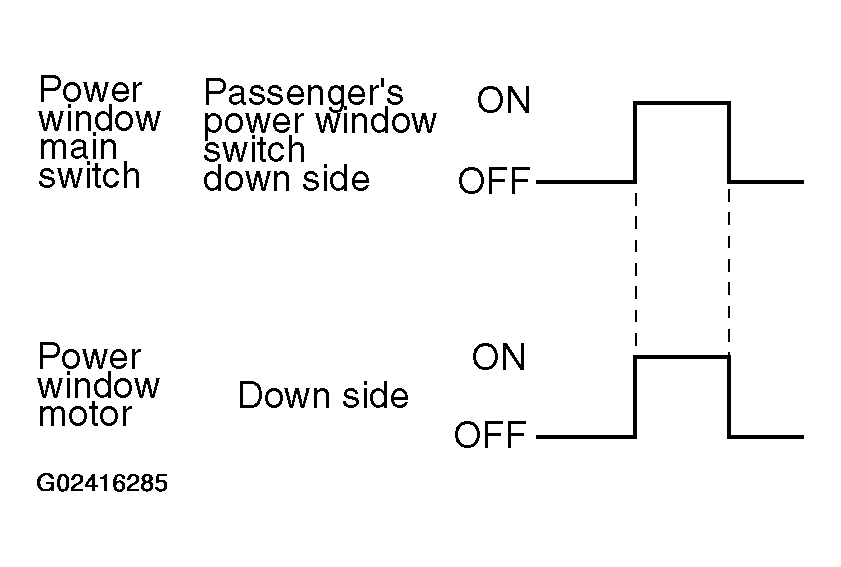

Fig 1: Identifying Blinking Pattern (Lowers Passenger's Power Window)
G02416285Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
