Lowers The Driver's Power Window By One-Shot Down Function

WARNING: This page is about a different car, the 2005 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

When the driver's power window switch on the power window main switch is pushed down fully, the system energizes its respective power window motor, and then driver's window glass moves to its lowest position.

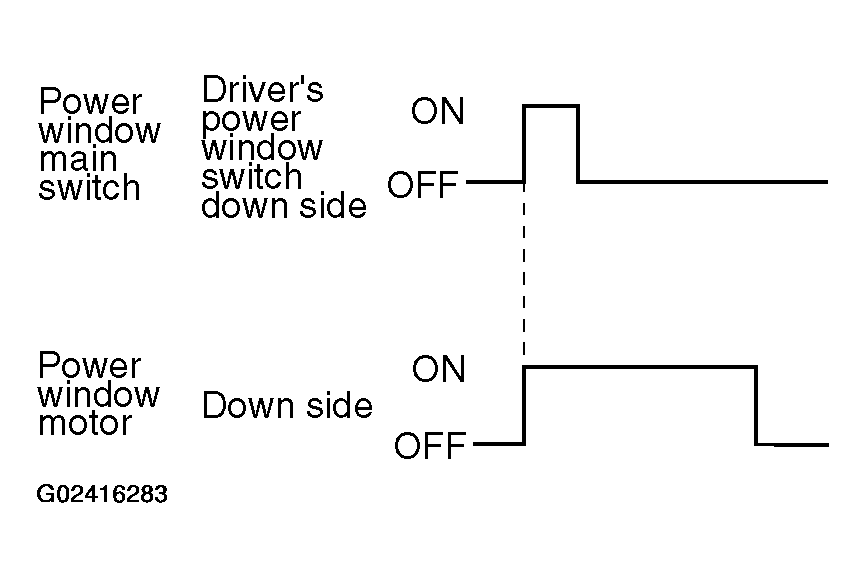

Fig 1: Identifying Blinking Pattern (Lowers Driver's Power Window By One-Shot Down Function)
G02416283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
