Turn Signal Light

WARNING: This page is about a different car, the 2005 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

The turn signal light output (flashing signal) is turned ON when the turn signal light ignition switch is ON and the turn signal light switch is ON (LH or RH.) If the front turn signal light or rear turn signal light bulb has burned out, the flashing speed increases to indicate that the bulb has burned out.

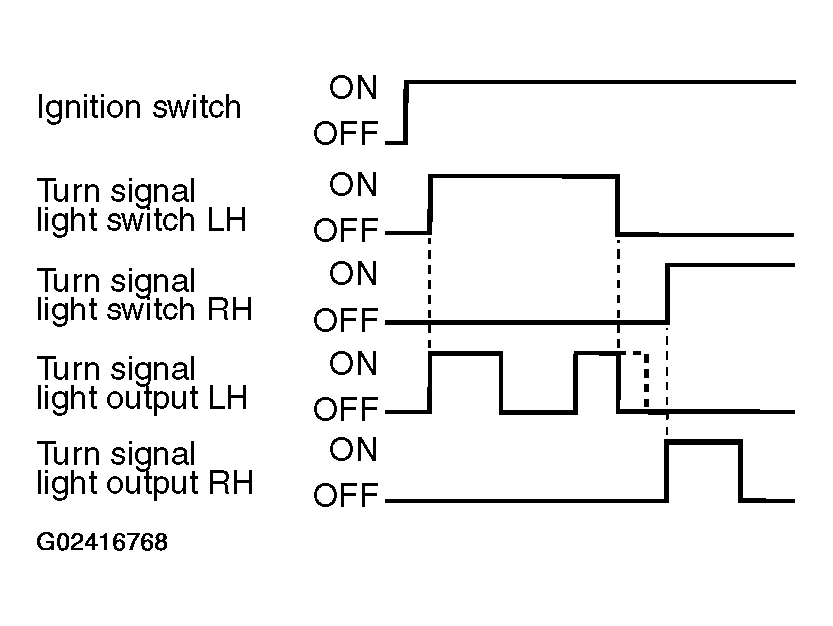

Fig 1: Identifying Blinking Pattern Of Turn Signal Light
G02416768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
