Configuration Of Function

WARNING: This page is about a different car, the 2005 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

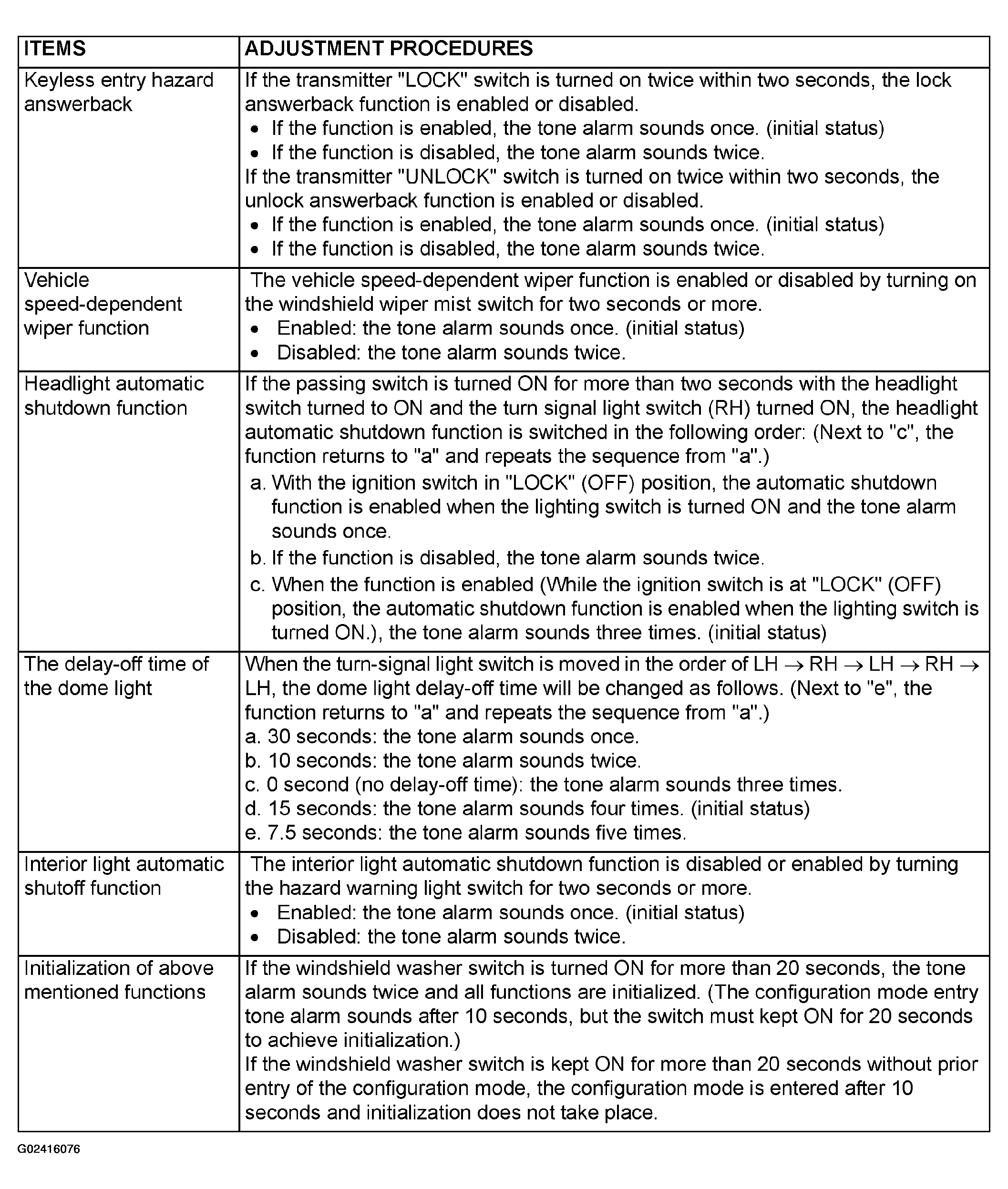

Fig 1: Function Configuration Chart
G02416076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
