2. Column Switch

WARNING: This page is about a different car, the 2005 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

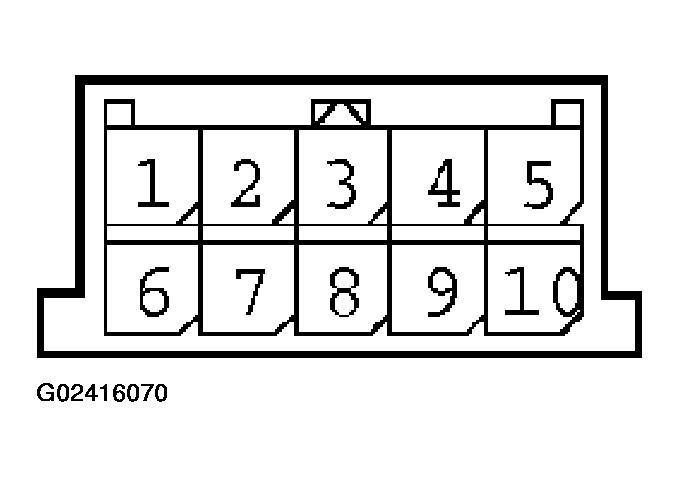

Fig 1: Identifying Column Switch Connector Terminals
G02416070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

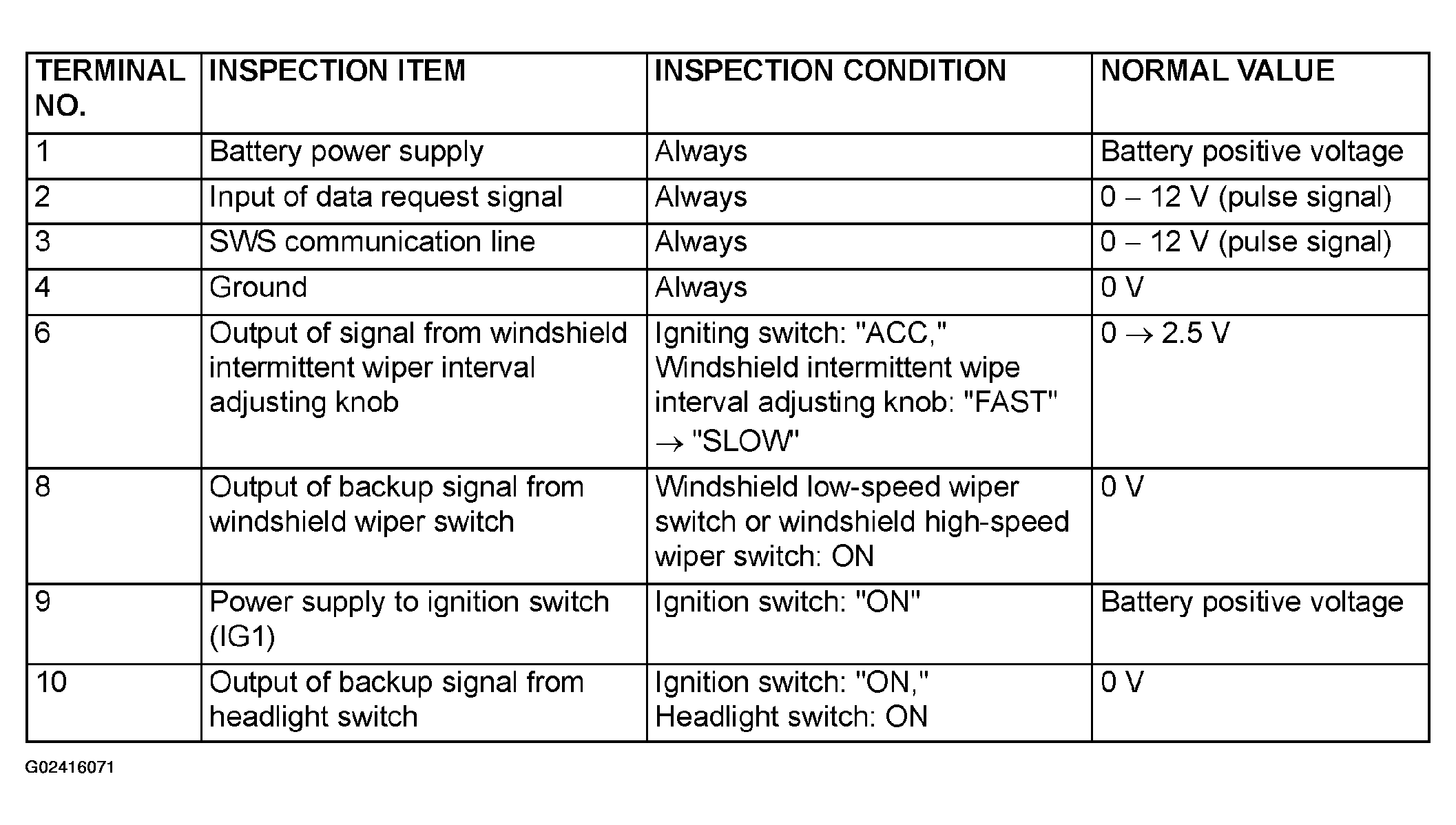

Fig 2: Column Switch Terminals Inspection Chart
G02416071Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
