Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact the caliper with tools or parts, because the caliper paint will be scratched.

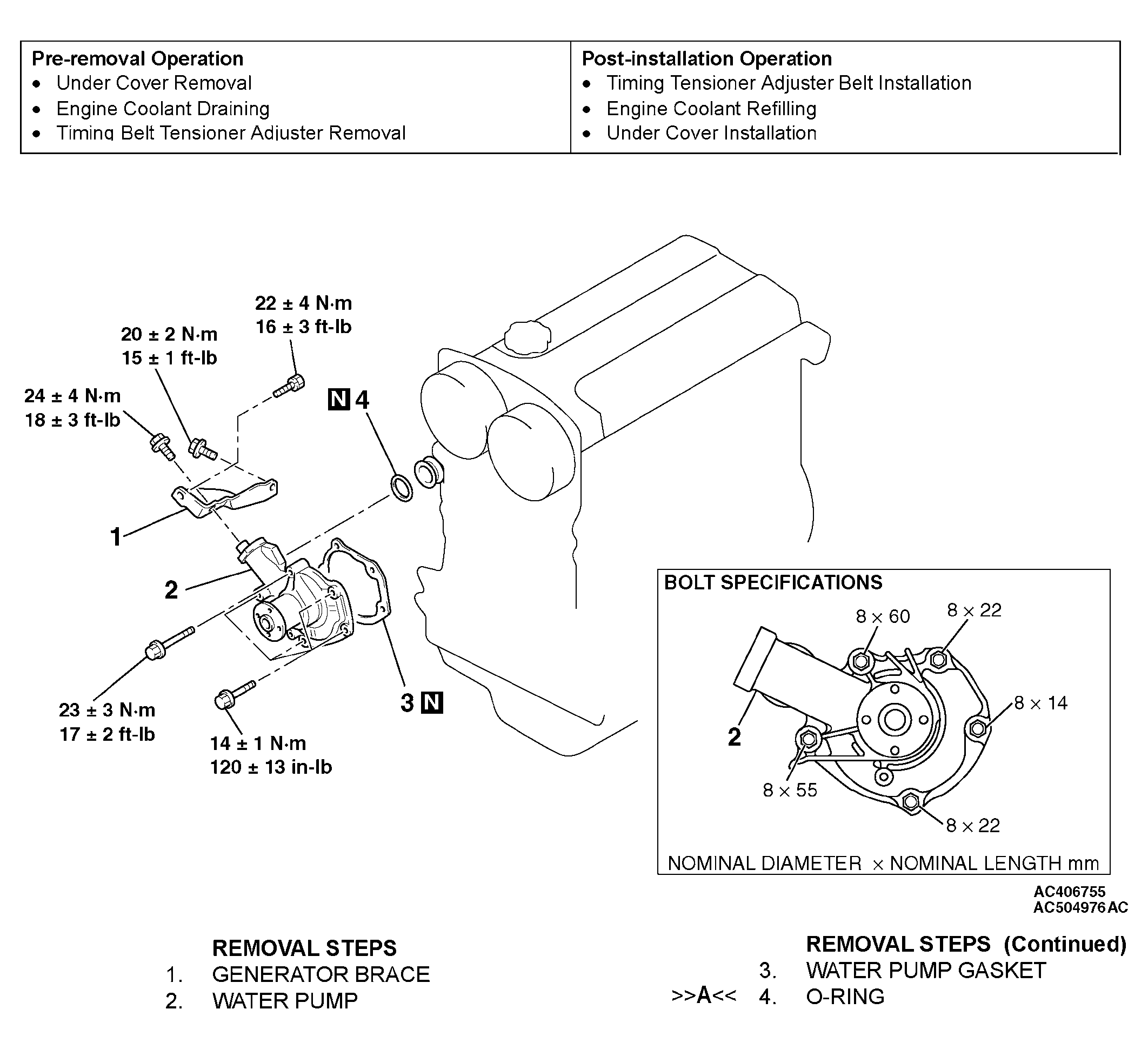

Fig 1: Removing And Installing Of Water Pump
G04296035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
