Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

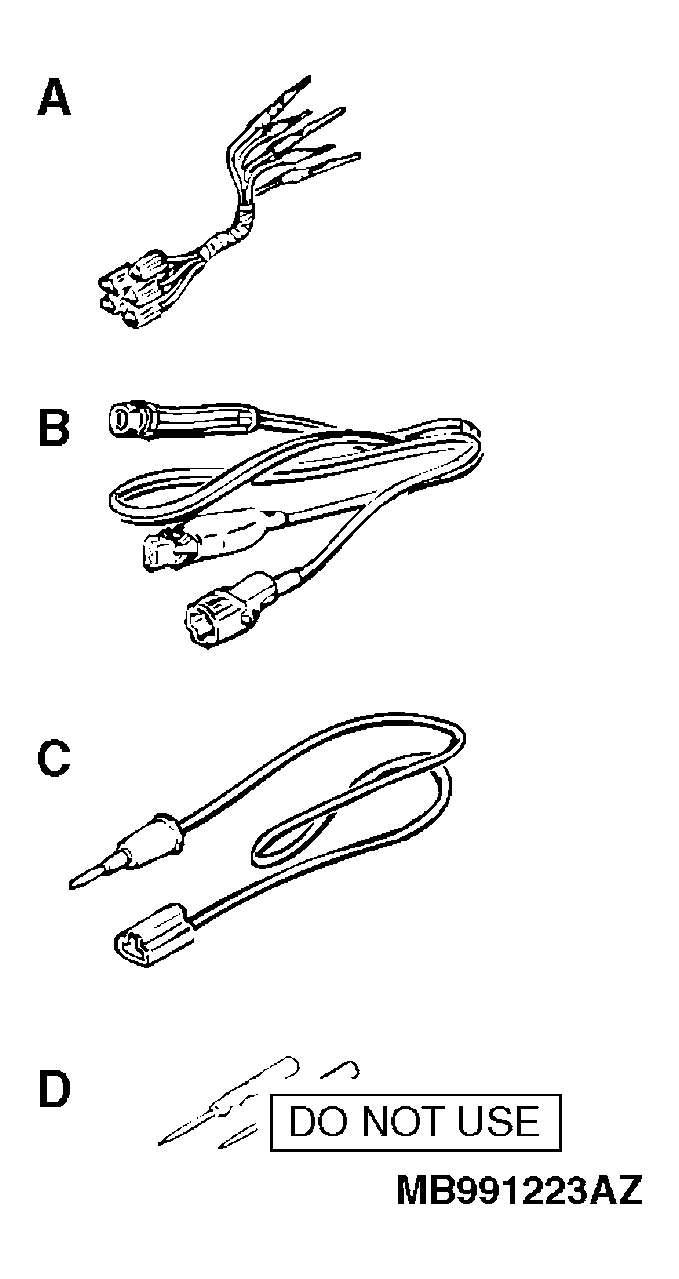

G04295981
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tools Making voltage and resistance measurement during troubleshooting
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection

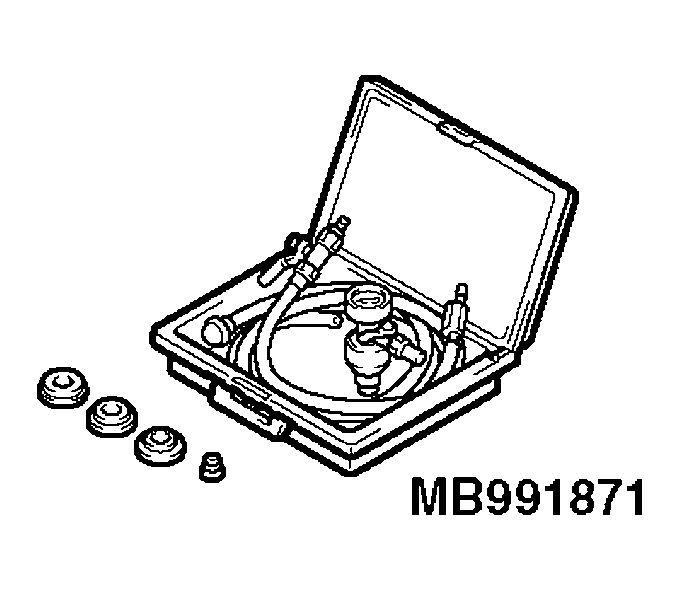

G04295982
 MB991871
LLC changer		 General service tool Coolant refilling

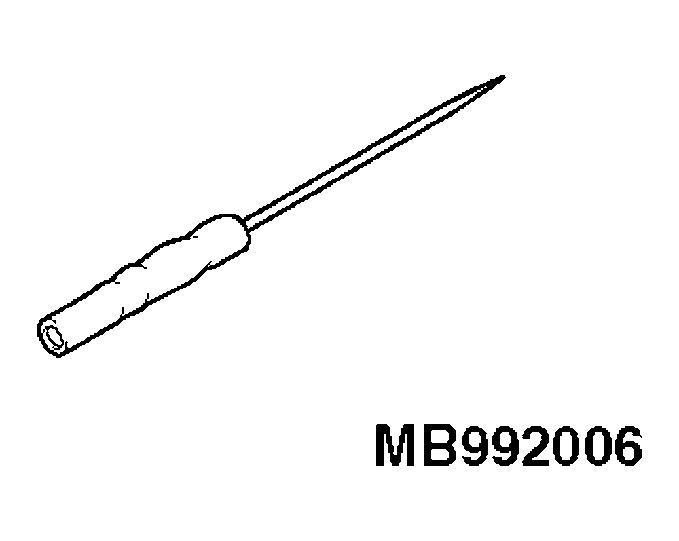

G04295983
 MB992006
Extra fine probe		 General service tool Making voltage and resistance measurement during troubleshooting
