Removal And Installation: Notes

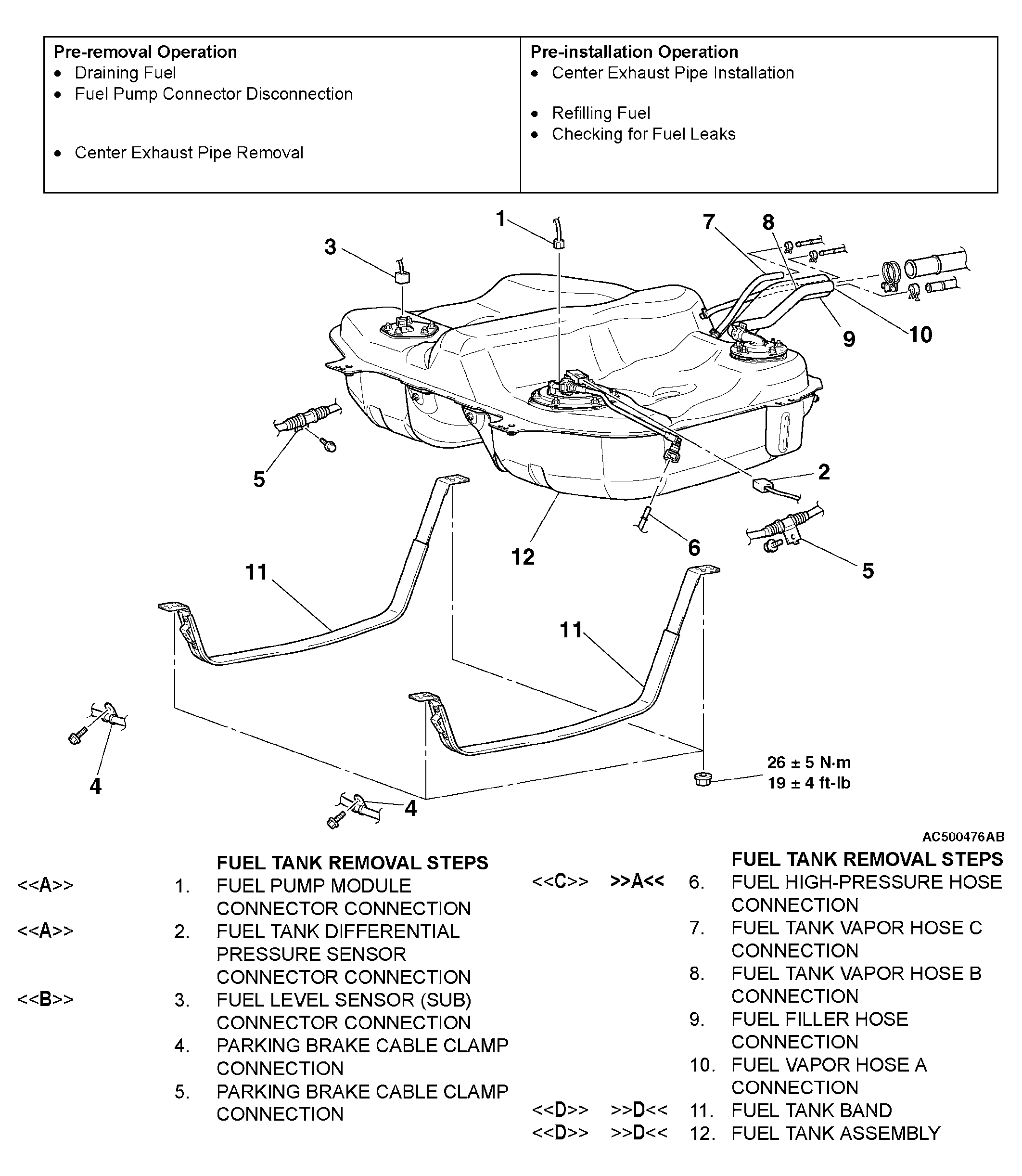

Fig 1: Removing\Installing Fuel Tank (1 Of 3)
G04253786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

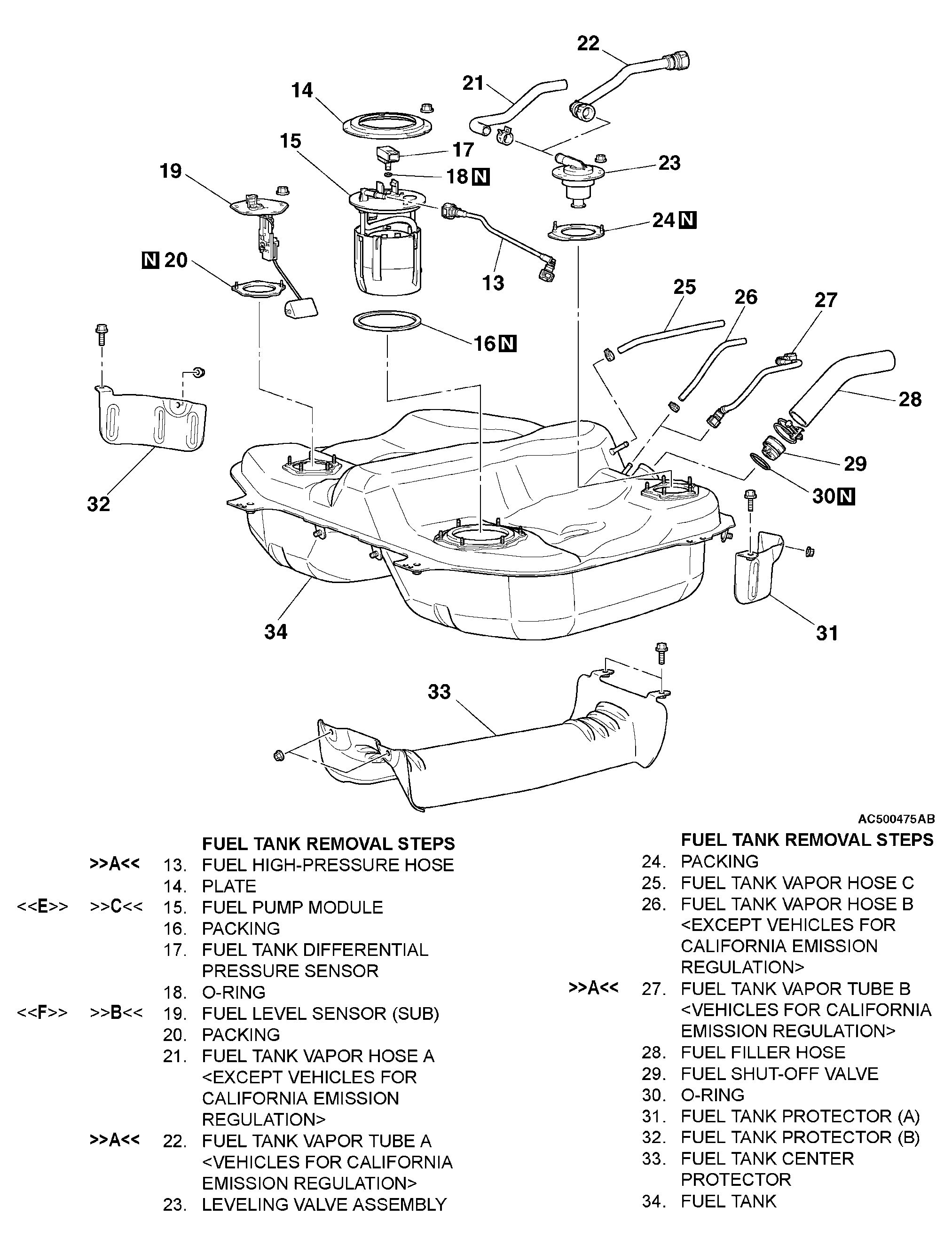

Fig 2: Removing\Installing Fuel Tank (2 Of 3)
G04253787Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

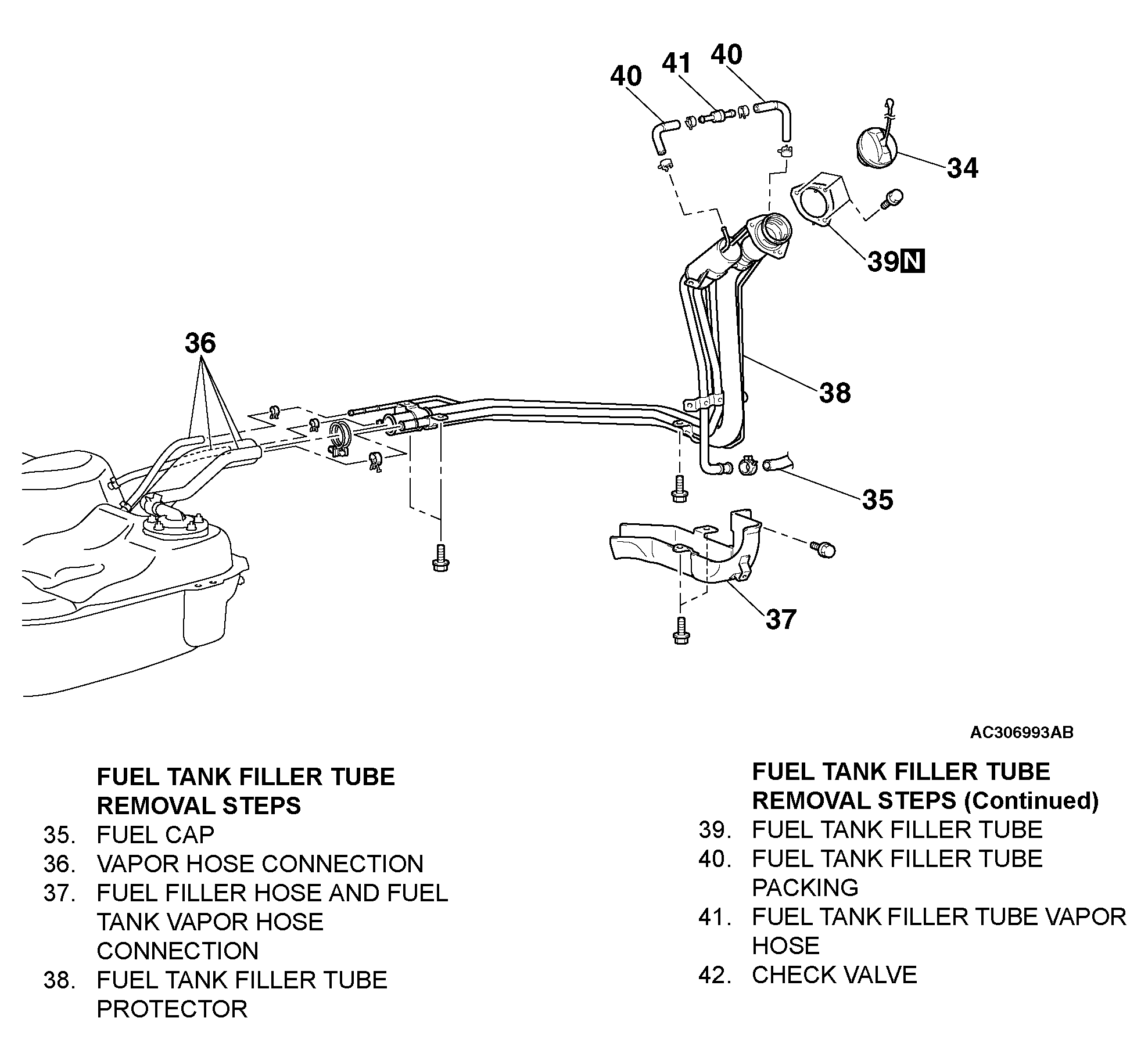

Fig 3: Removing\Installing Fuel Tank (3 Of 3)
G04253788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
