Window Glass Installation

CAUTION: Do not apply the primer on the adhesive remained as the adhesion may be reduced.

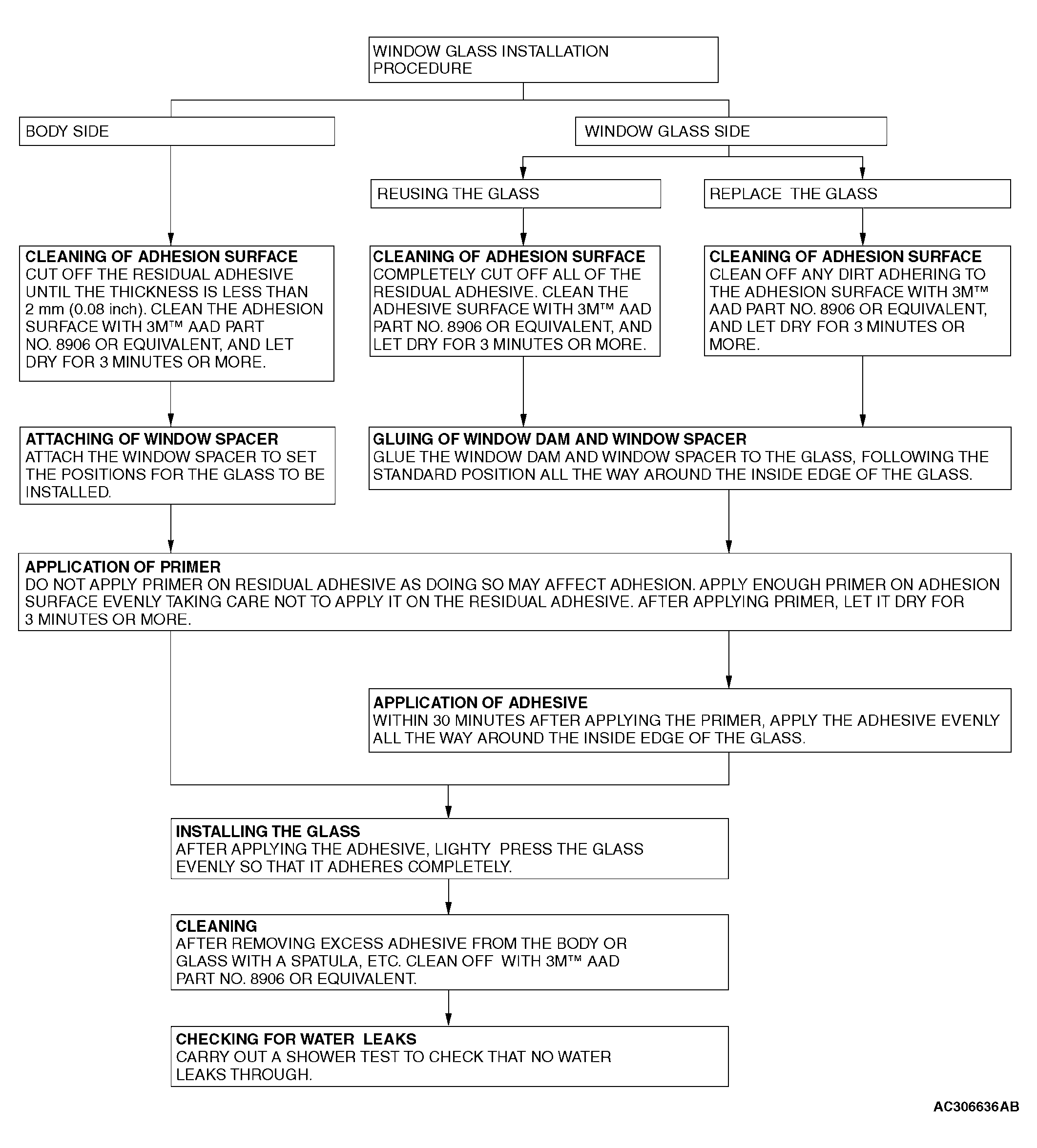

Fig 1: Window Glass Installation Flow Chart
G04255614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
