Component Location

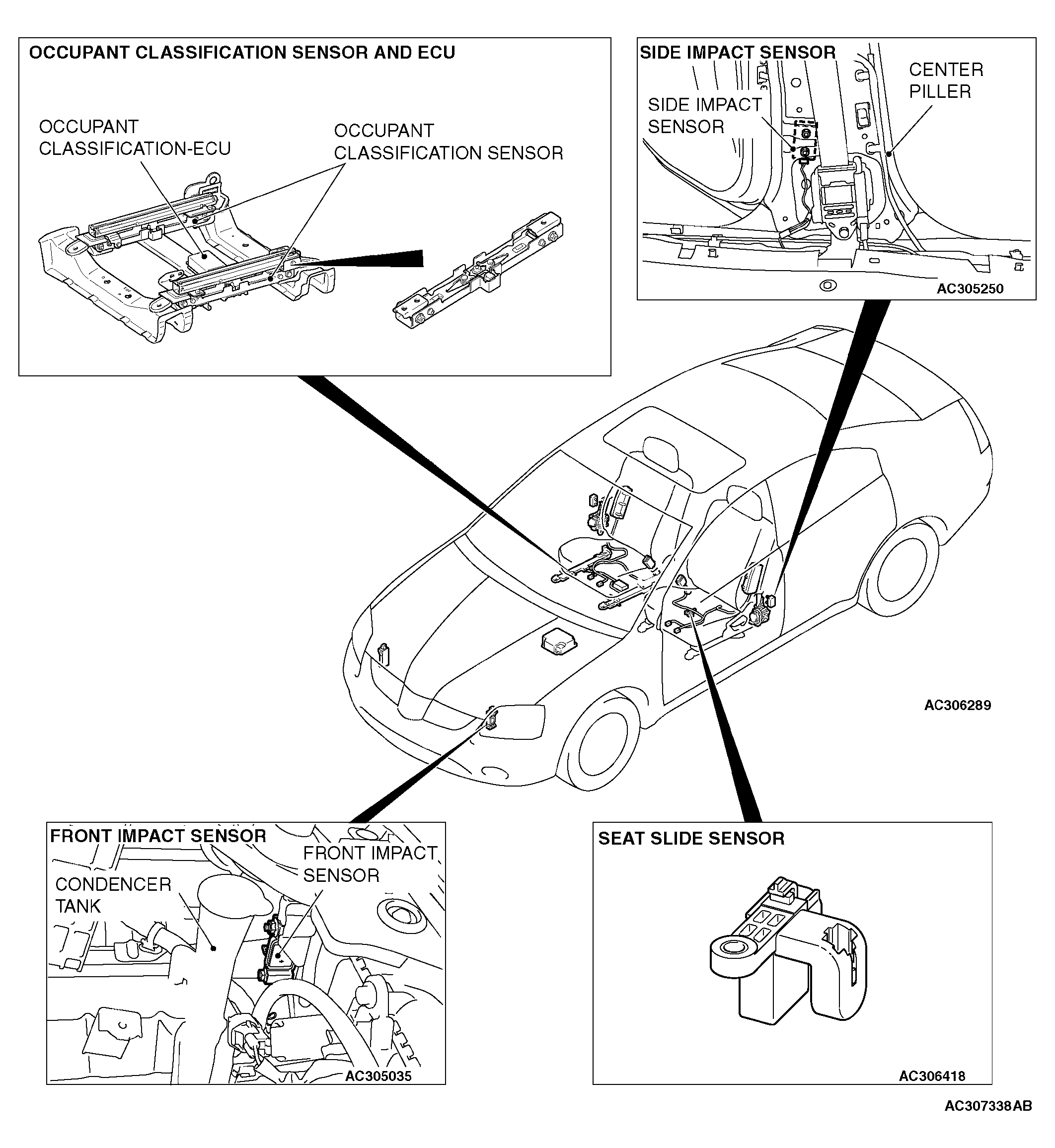

Fig 1: Identifying Component Location
G04255865Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

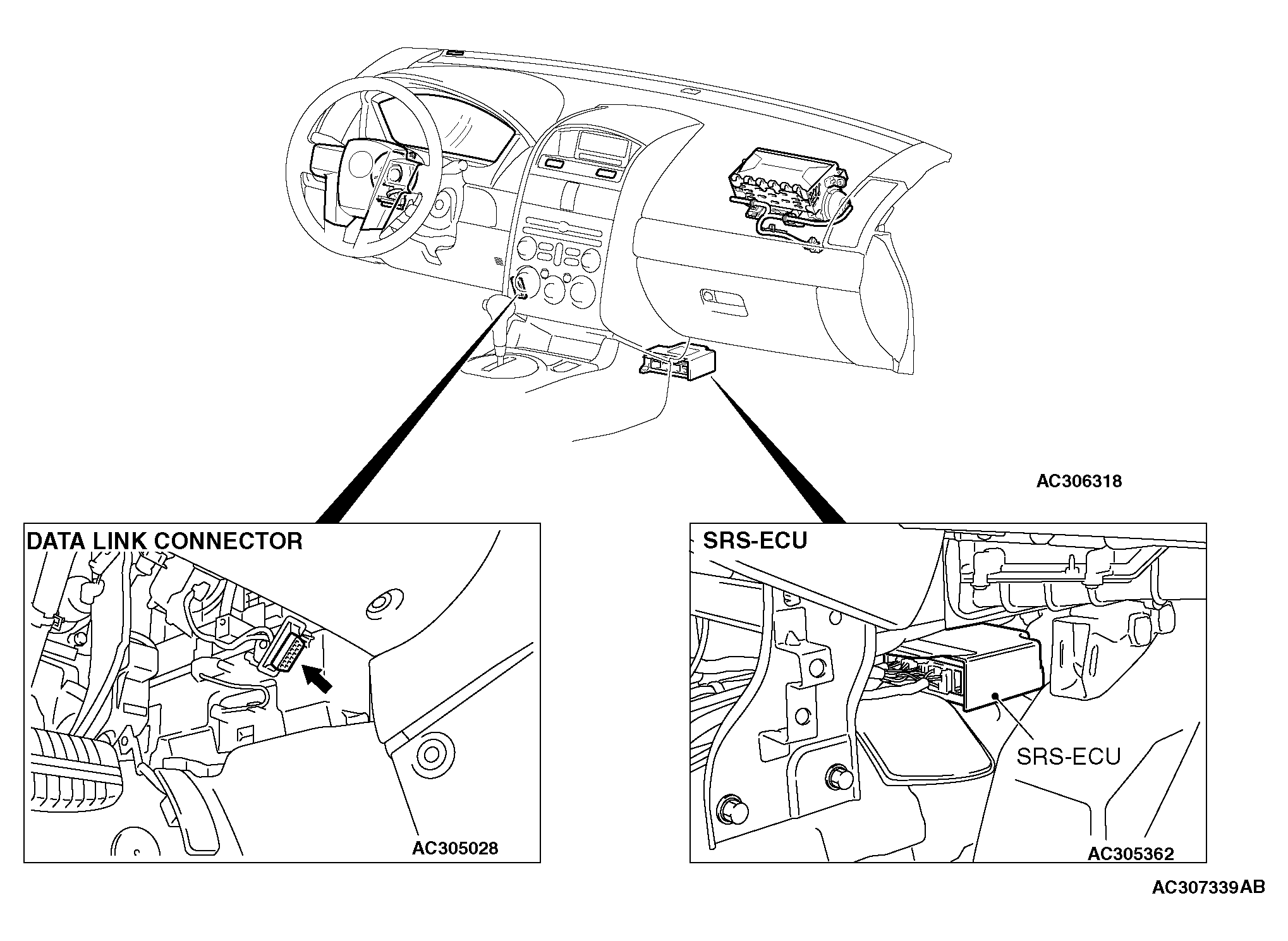

Fig 2: Identifying Data Link And SRS-ECU Connector
G04255866Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the front impact sensor (LH) and the side impact sensor (LH). The position of the front impact sensor (RH) and the side impact sensor (RH) is symmetrical to this.
