Circuit Diagram

WARNING:
  • Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on SERVICE PRECAUTIONS  ): replace the wiring if necessary, after reading and following all precautions and procedures in this article.
  • Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS  ) and a digital multi-meter (refer to TEST EQUIPMENT  ).
CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent the serious injury.

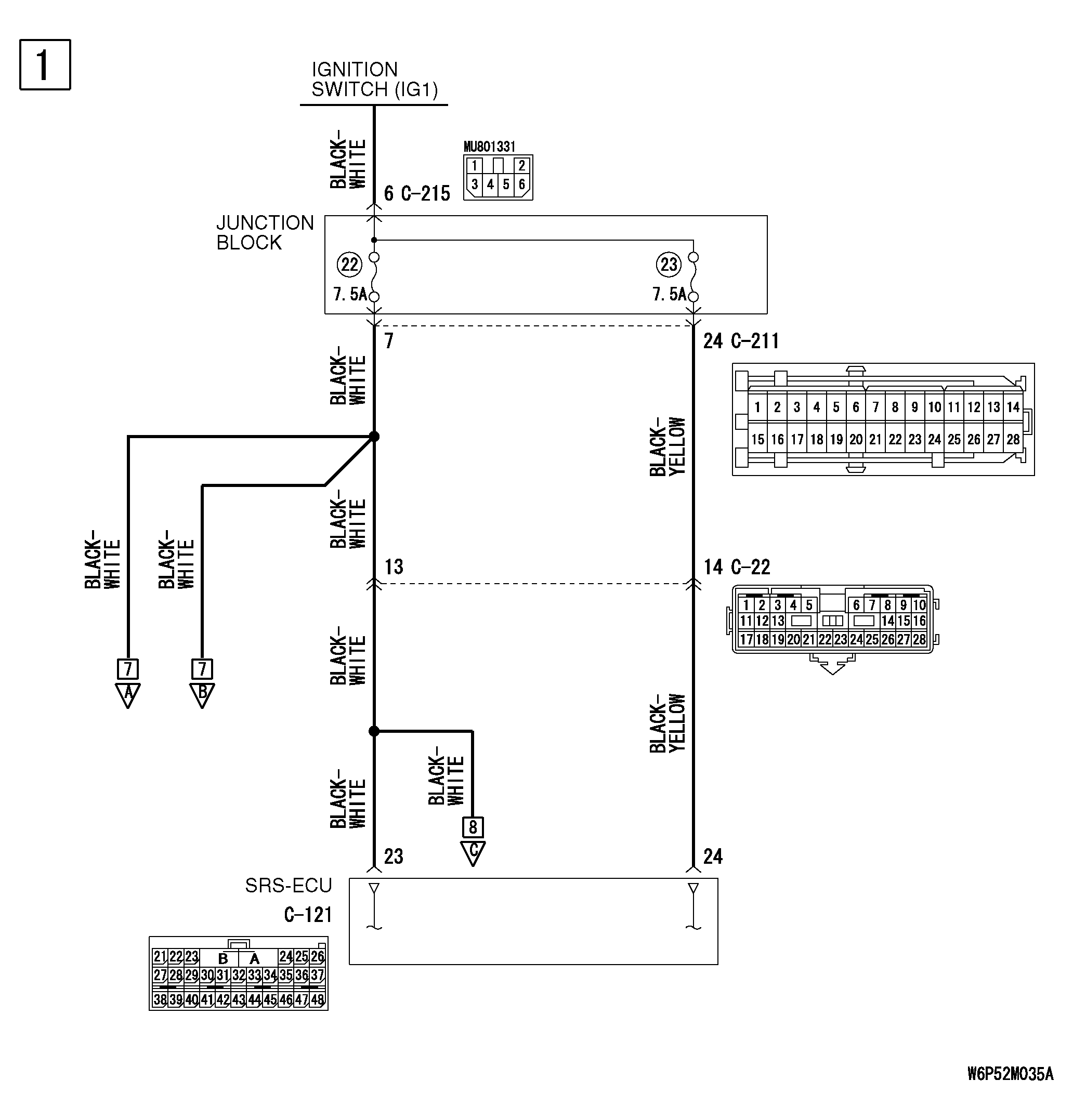

Fig 1: Circuit Diagram (1 Of 10)
G04255855Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

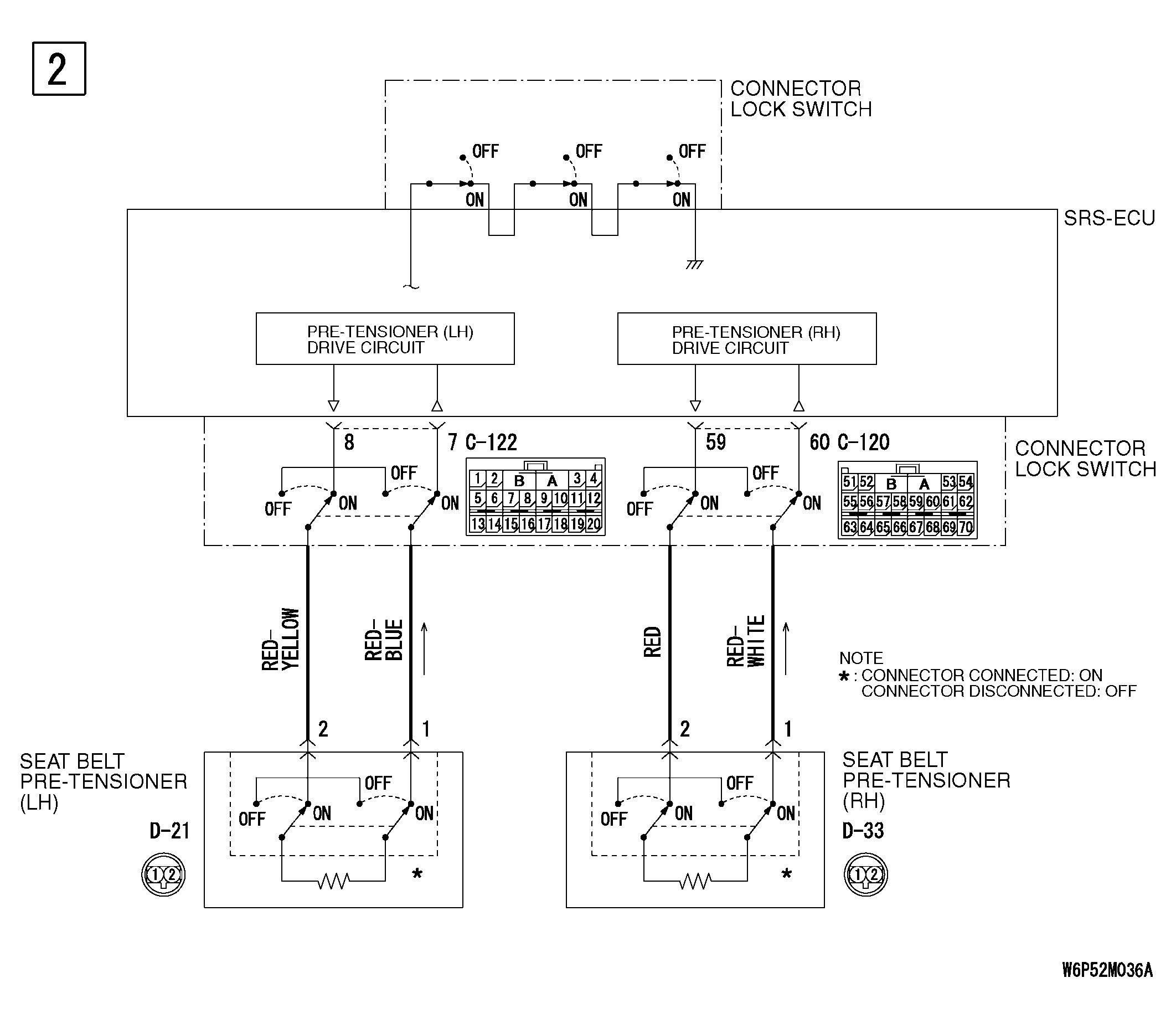

Fig 2: Circuit Diagram (2 Of 10)
G04255856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

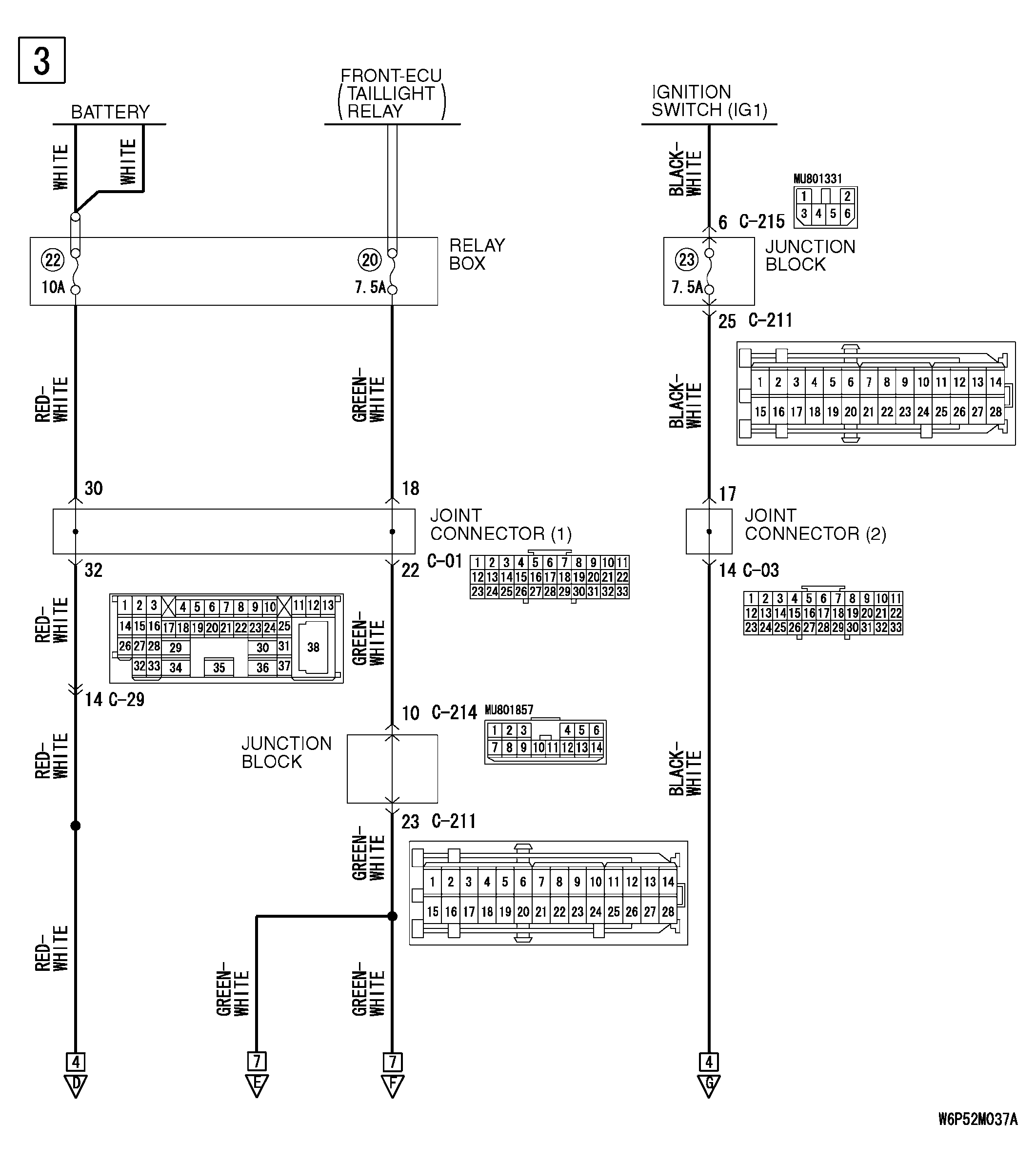

Fig 3: Circuit Diagram (3 Of 10)
G04255857Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

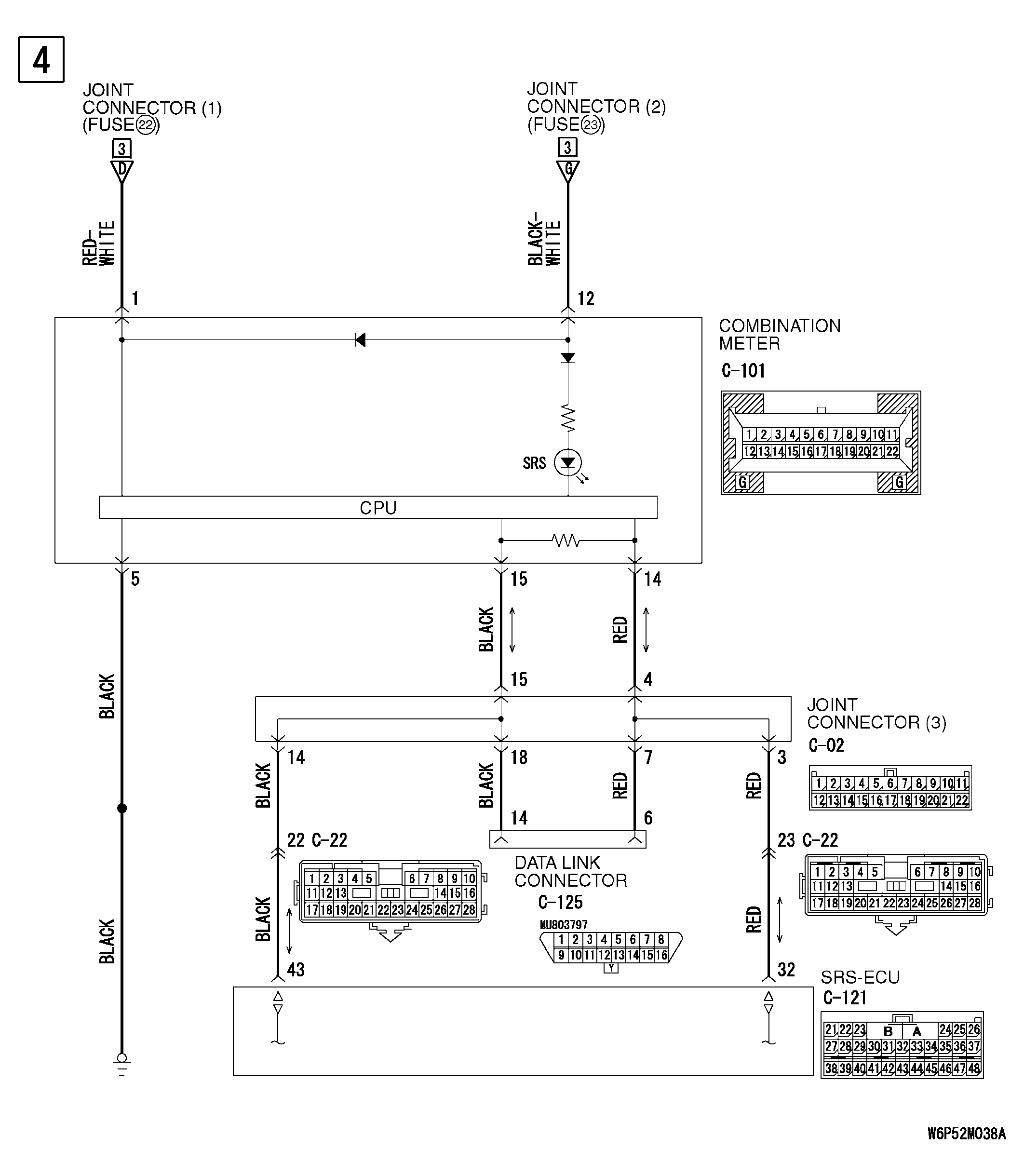

Fig 4: Circuit Diagram (4 Of 10)
G04255858Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

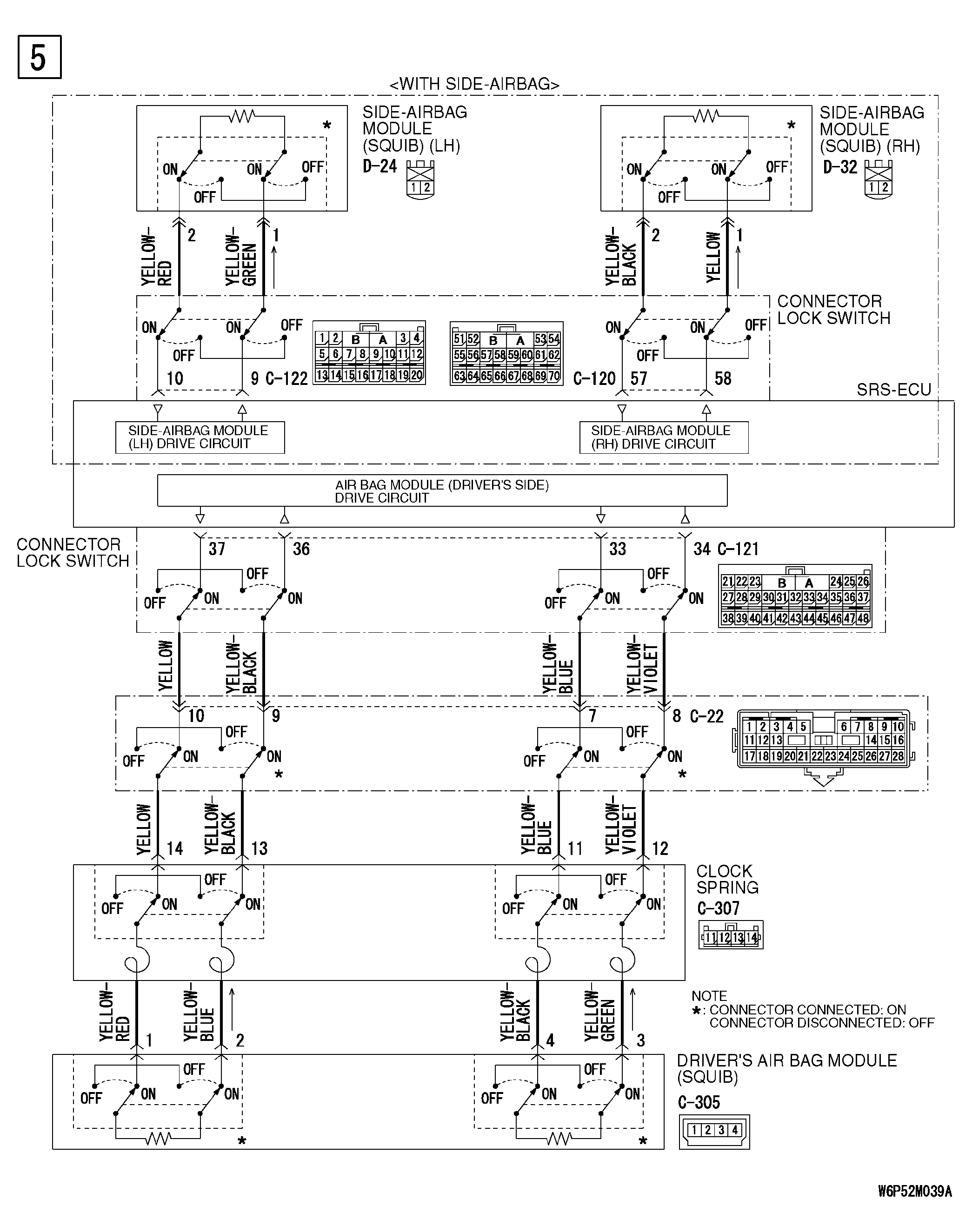

Fig 5: Circuit Diagram (5 Of 10)
G04255859Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

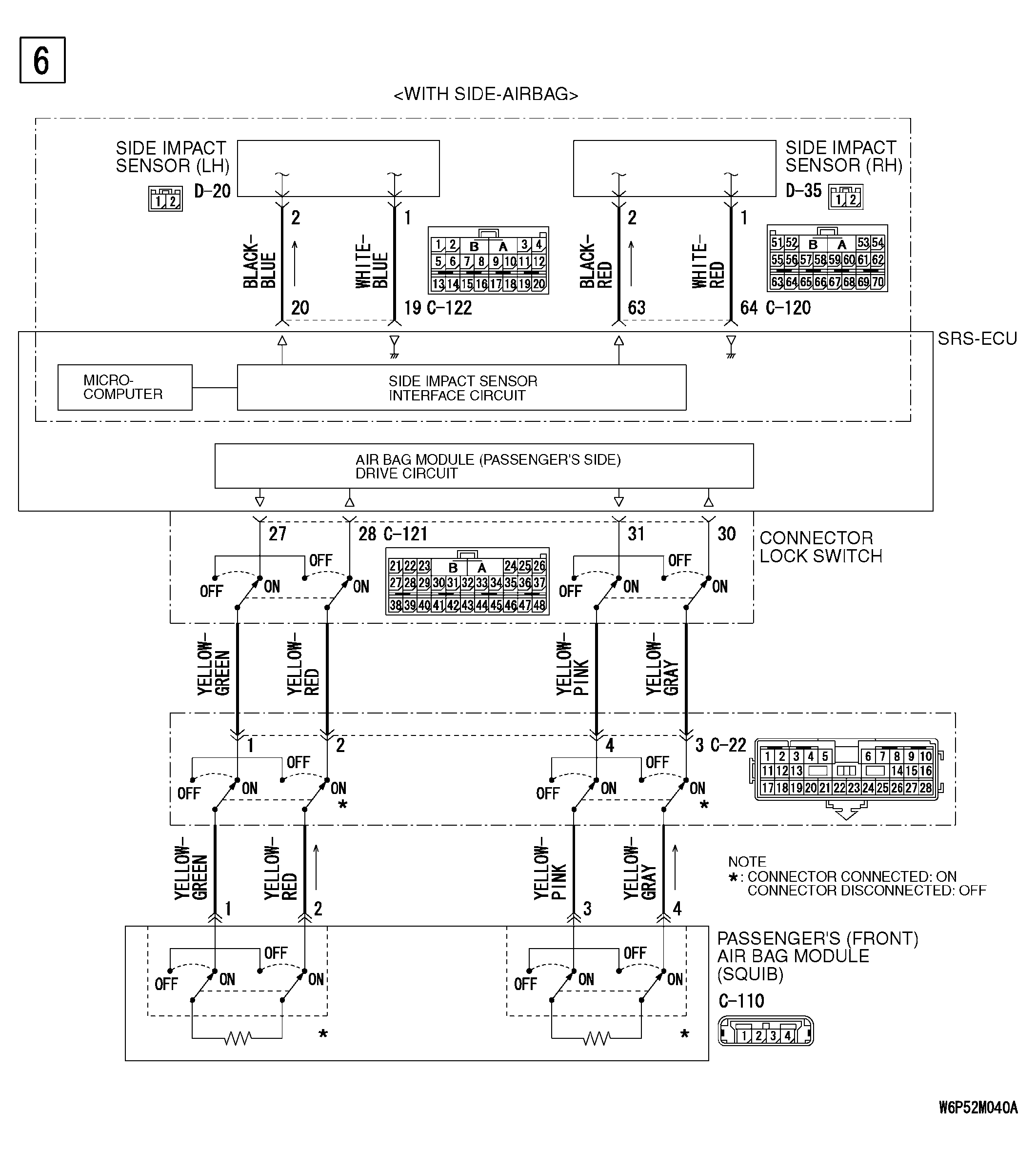

Fig 6: Circuit Diagram (6 Of 10)
G04255860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

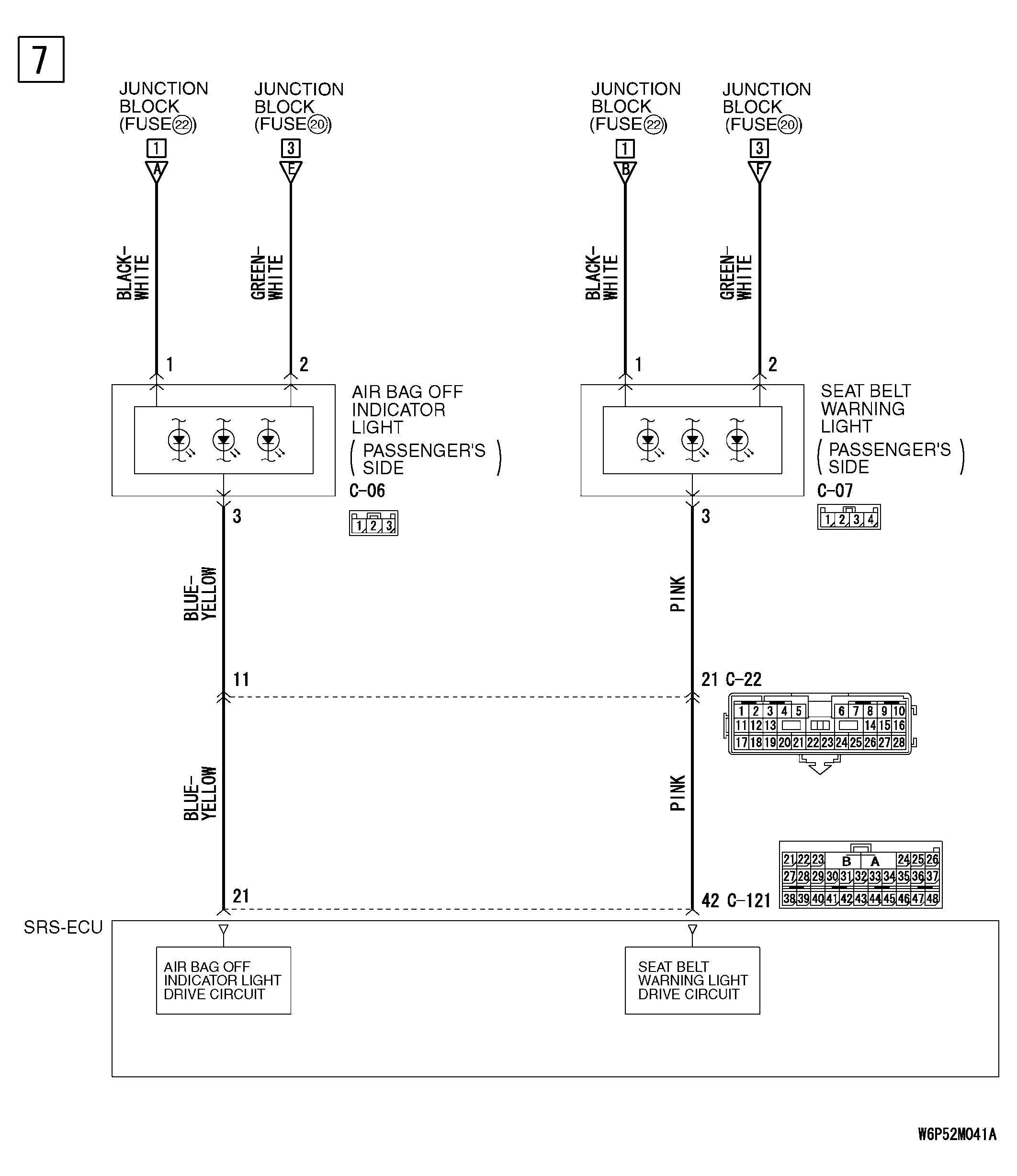

Fig 7: Circuit Diagram (7 Of 10)]
G04255861Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

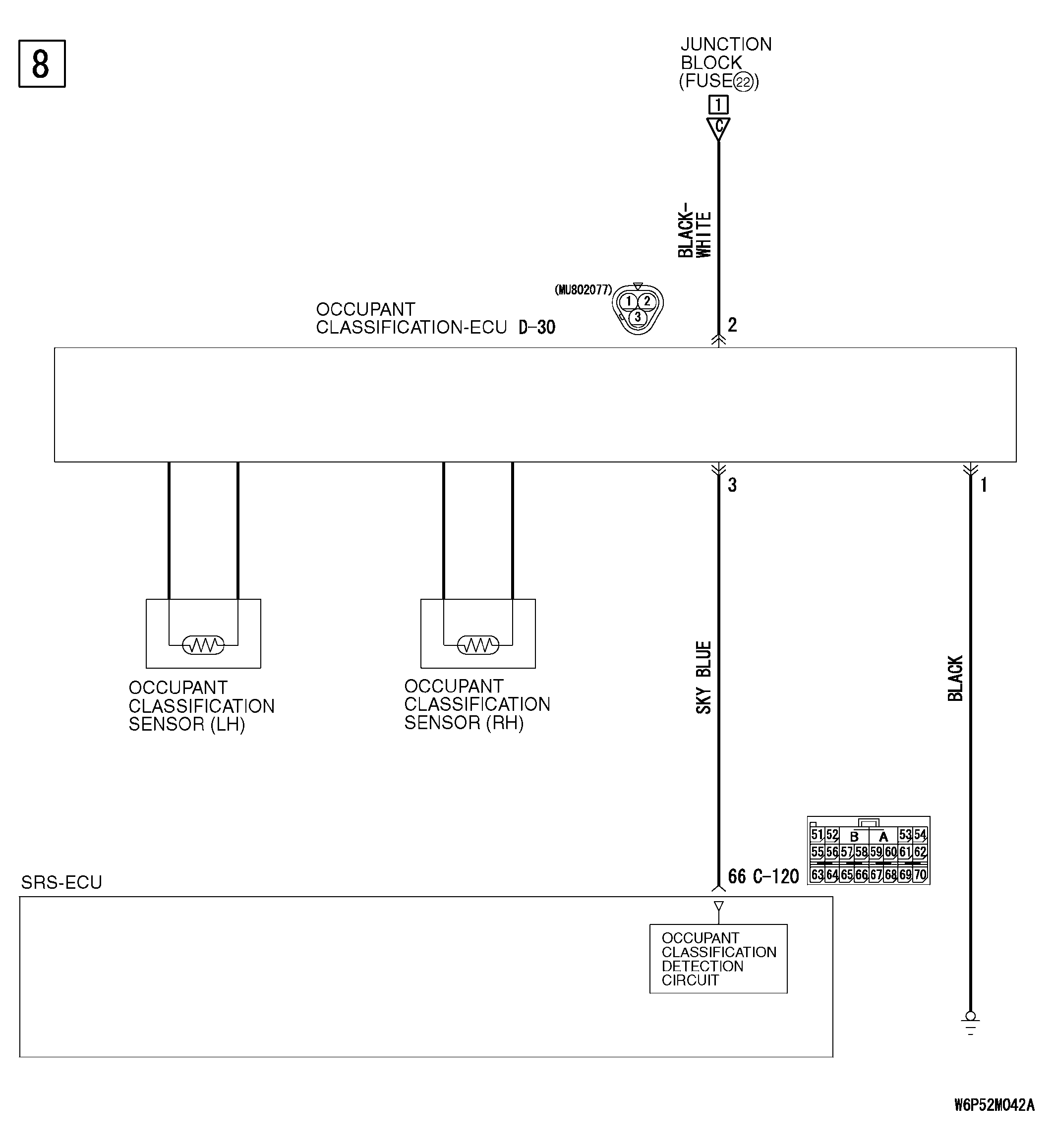

Fig 8: Circuit Diagram (8 Of 10)]
G04255862Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

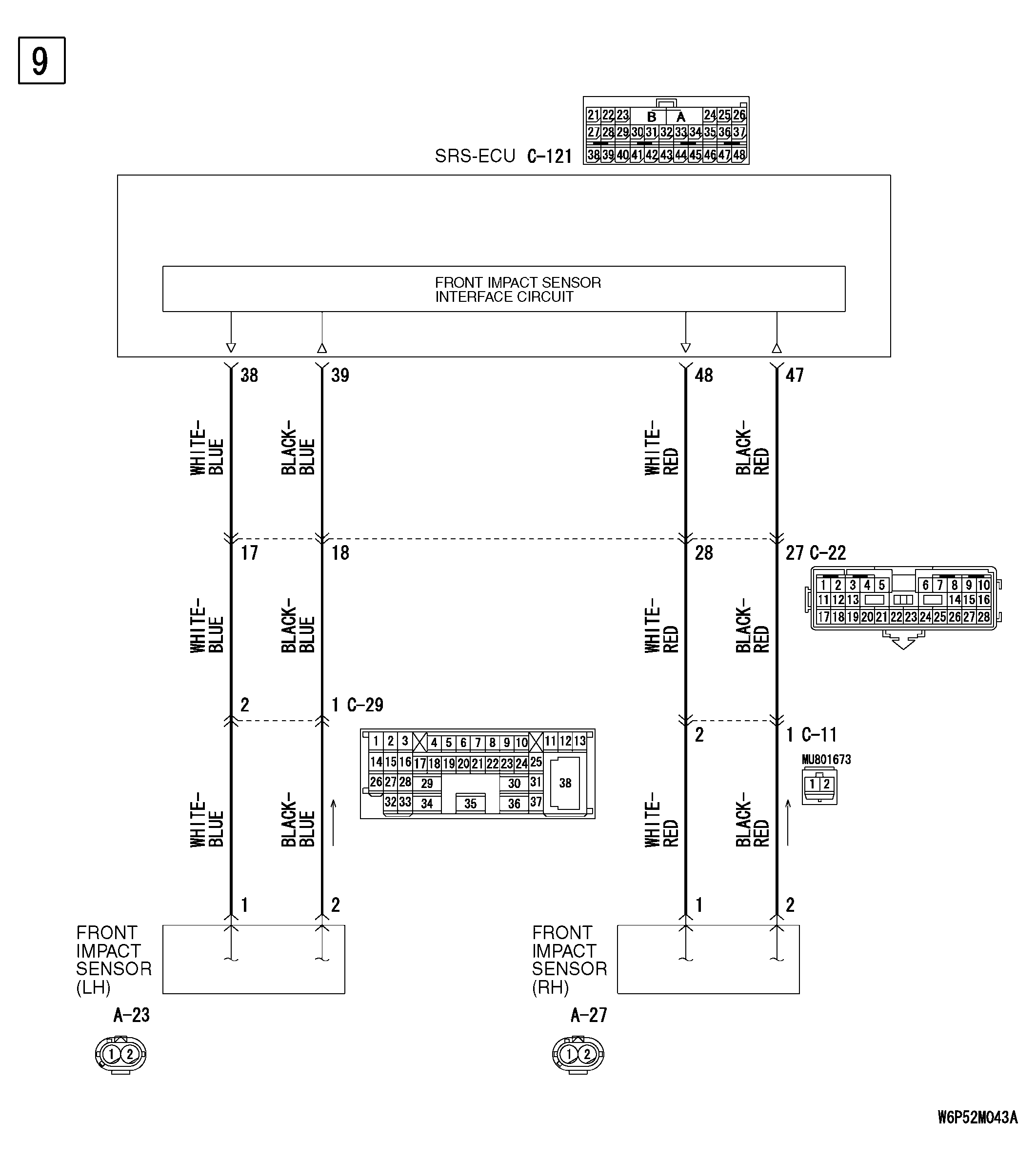

Fig 9: Circuit Diagram (9 Of 10)
G04255863Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

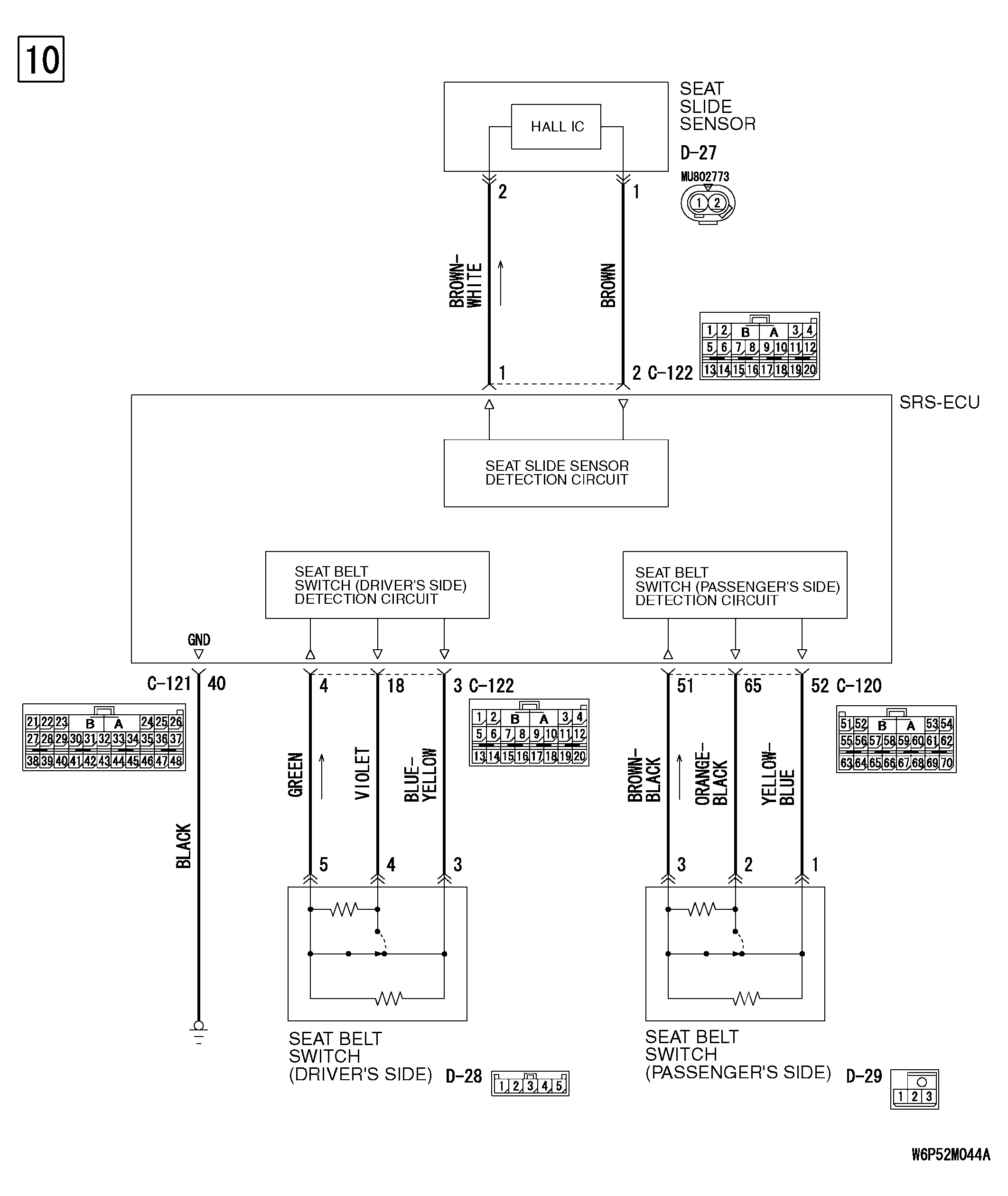

Fig 10: Circuit Diagram (10 Of 10)
G04255864Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
