Removal And Installation: Notes
WARNING:
- Never repair or disassemble the front impact sensor. If faulty, replace it.
- Handle the front impact sensors very carefully, taking care not to drop them. They must be replaced if they are dropped.
- Replace the sensors with new ones after the air bag has deployed.
NOTE:

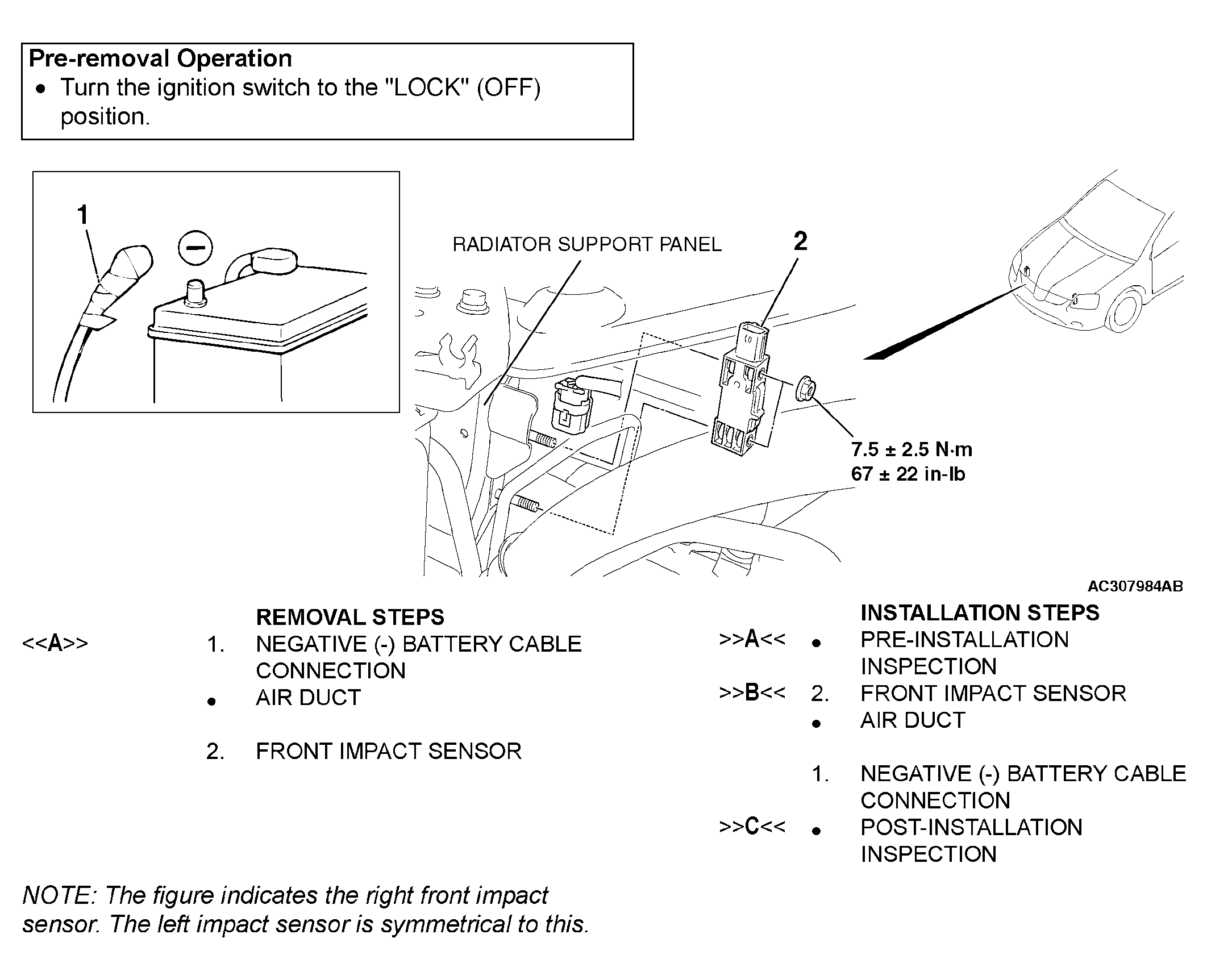

The figure indicates the right front impact sensor. The left impact sensor is symmetrical to this.
