Disassembly And Assembly
>>
< 3.8L Engine >
< 3.8L Engine >

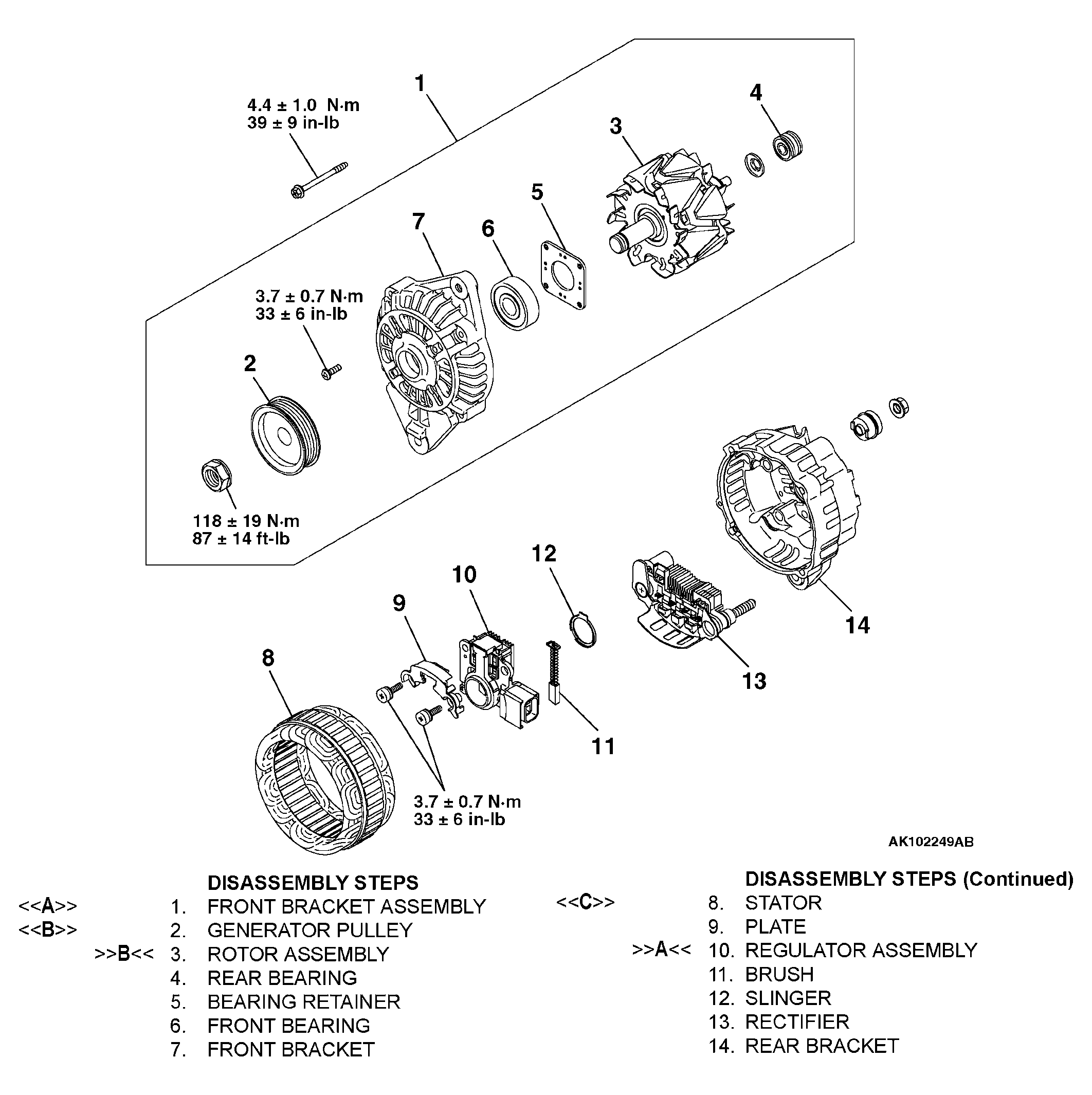

Fig 1: Exploded View Of Generator - 3.8L Engine With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
