General Circuit Diagram For The Power Windows

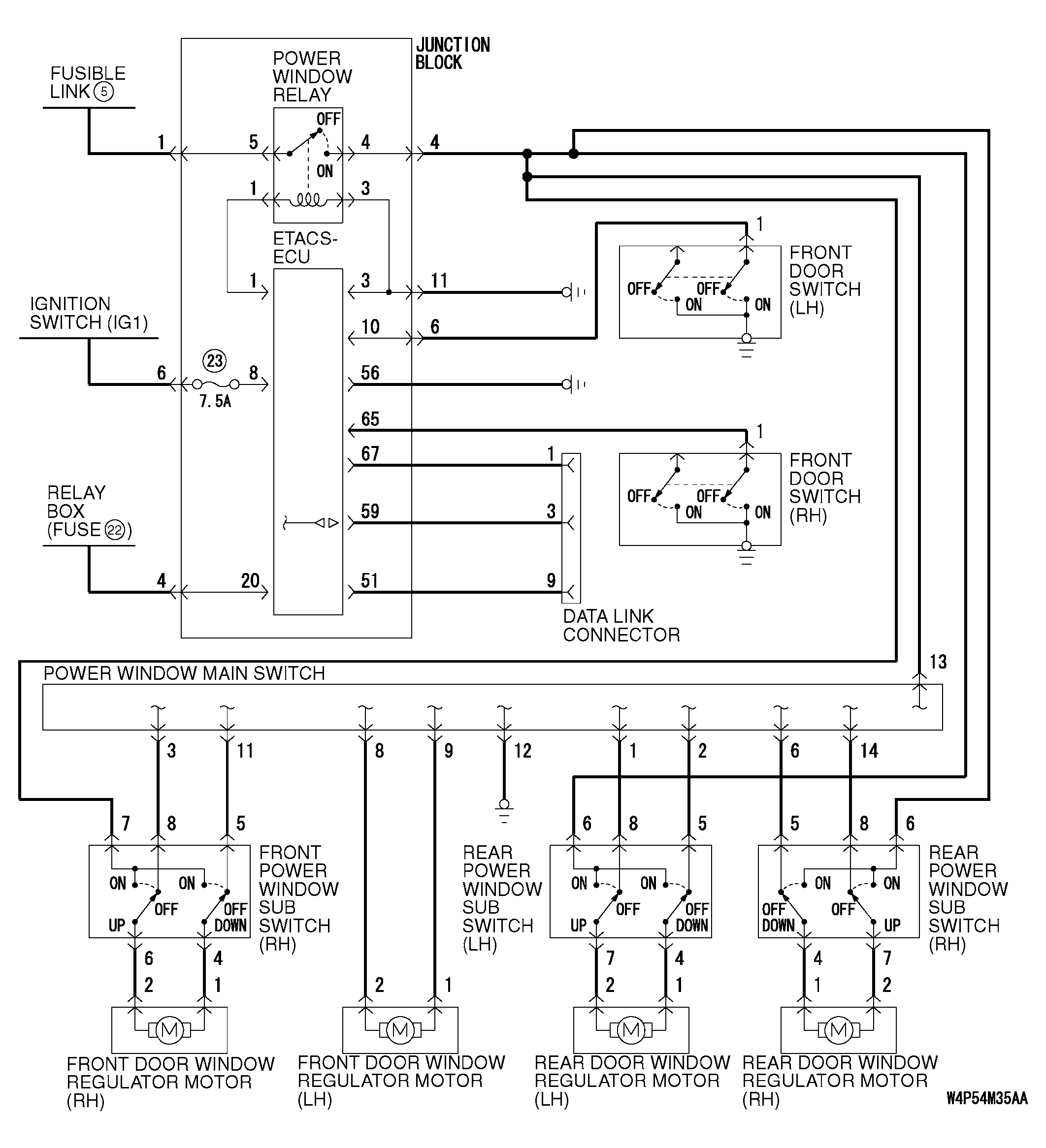

Fig 1: Power Windows General Circuit Diagram

G04257309

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
