Interior light automatic-shutoff function

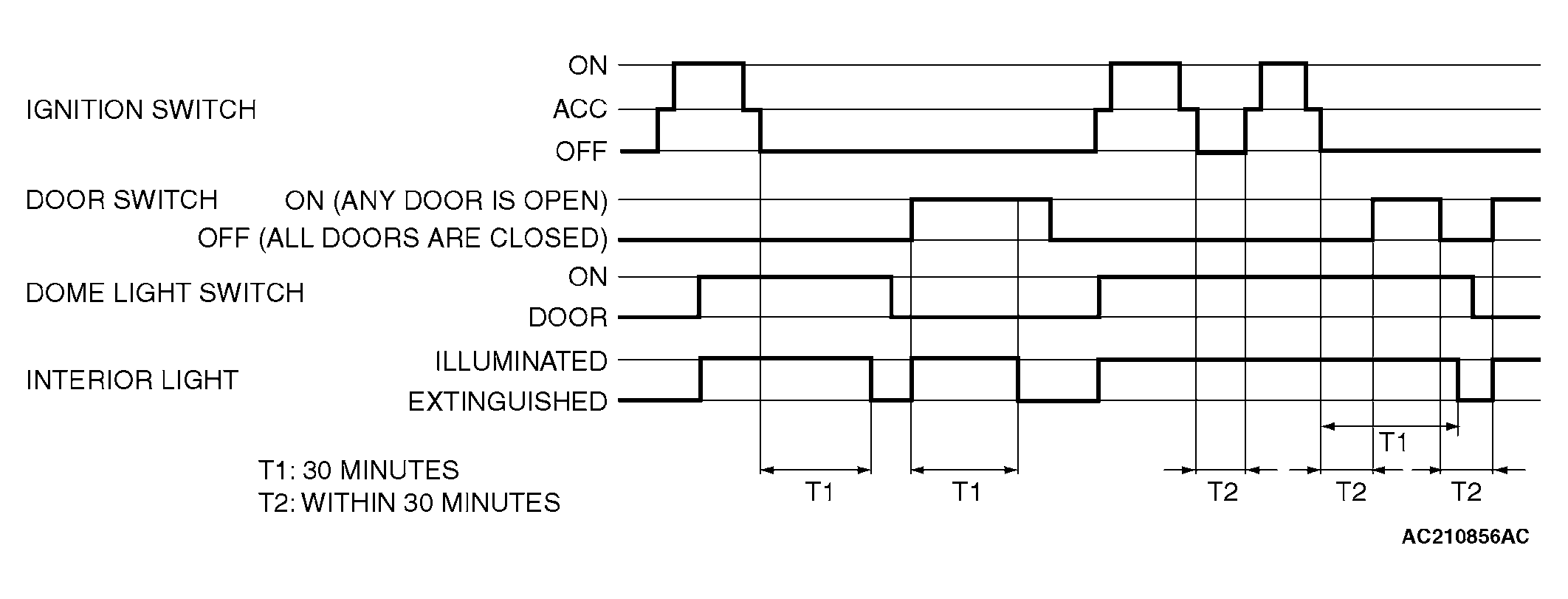

Fig 1: Identifying Interior Light Blinking Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Illuminated interior lights such as the front dome light, etc. (all lights using the dome light fuse as the power supply) will automatically go off in the following conditions to prevent the battery from discharging as a result of forgetting to turn off the lights or incomplete closing of the door.

When the ignition switch is turned off and more than 30 minutes pass with the interior light illuminated, the interior lights will go off automatically.
When the ignition switch is turned off and one of the door switches remains open for 30 minutes continuously, the interior lights will go off automatically.

NOTE: The interior light automatic shutoff function can be customized on vehicles equipped with a multi center display (middle grade type). Refer to ON-VEHICLE SERVICE .
