Special Tool

SPECIAL TOOL

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04257046G04257047G04257048G04257049G04257050G04257051G04257052
G04257046G04257047G04257048G04257049G04257050G04257051G04257052
G04257046G04257047G04257048G04257049G04257050G04257051G04257052
G04257046G04257047G04257048G04257049G04257050G04257051G04257052
G04257046G04257047G04257048G04257049G04257050G04257051G04257052
G04257046G04257047G04257048G04257049G04257050G04257051G04257052
G04257046G04257047G04257048G04257049G04257050G04257051G04257052
 MB991958
  1. MB991824

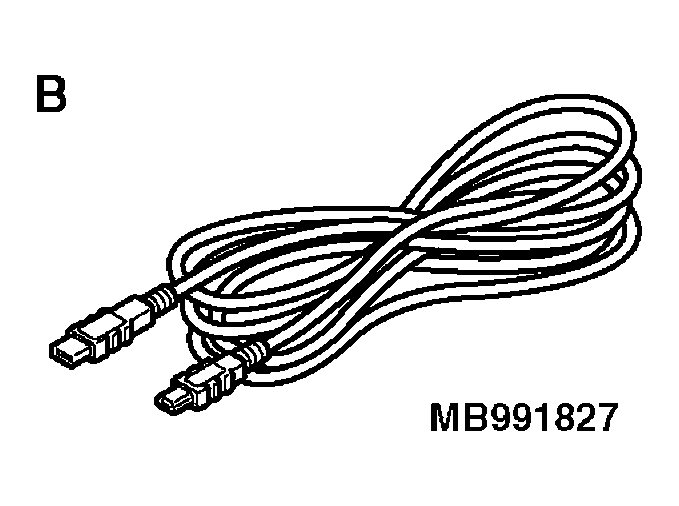

  2. MB991827

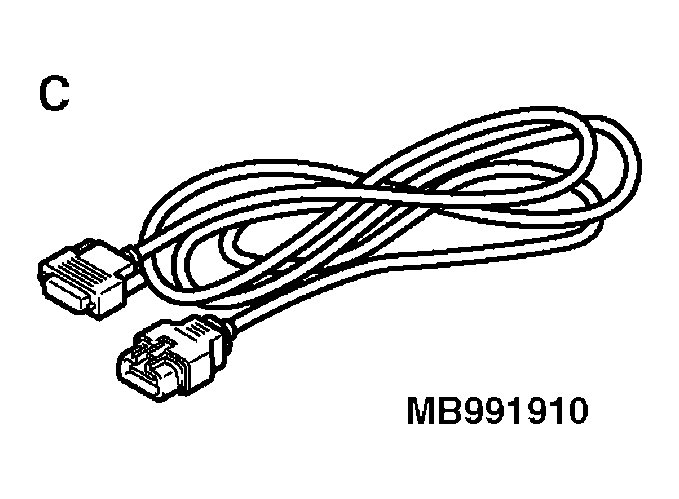

  3. MB991910

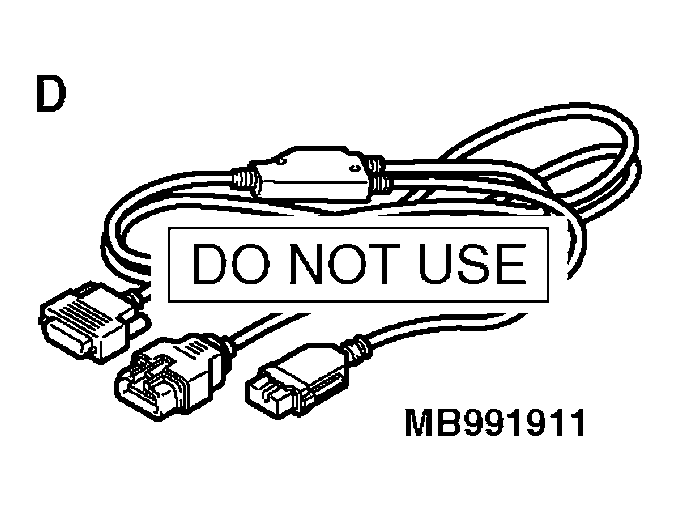

  4. MB991911

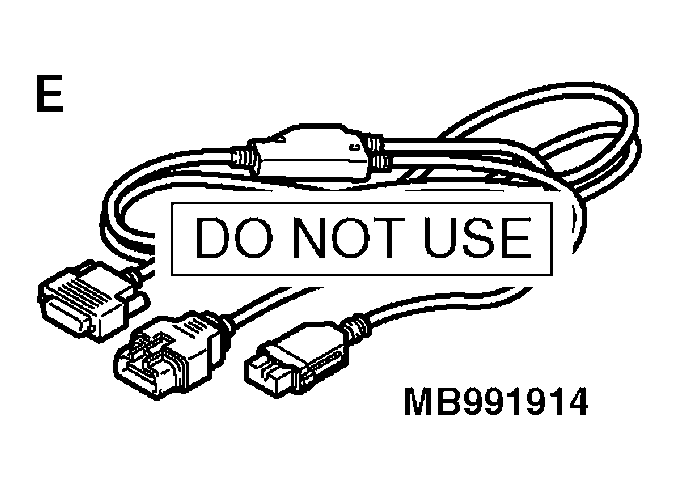

  5. MB991914
  6. MB991825

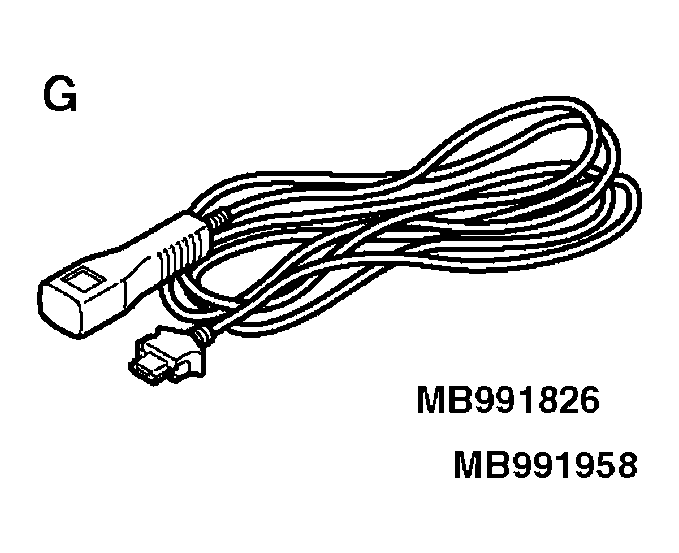

  7. MB991826

M.U.T.-III sub assembly

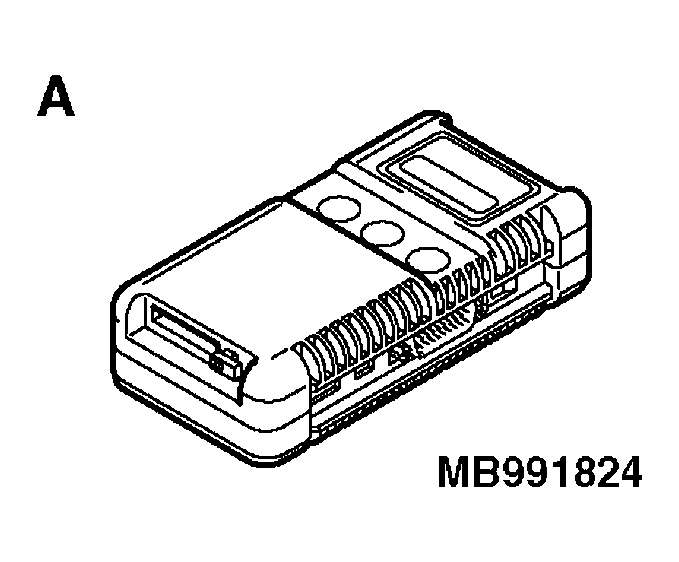

  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness a (vehicles with CAN communication system)
  4. M.U.T.-III Main Harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler Chrysler models only)

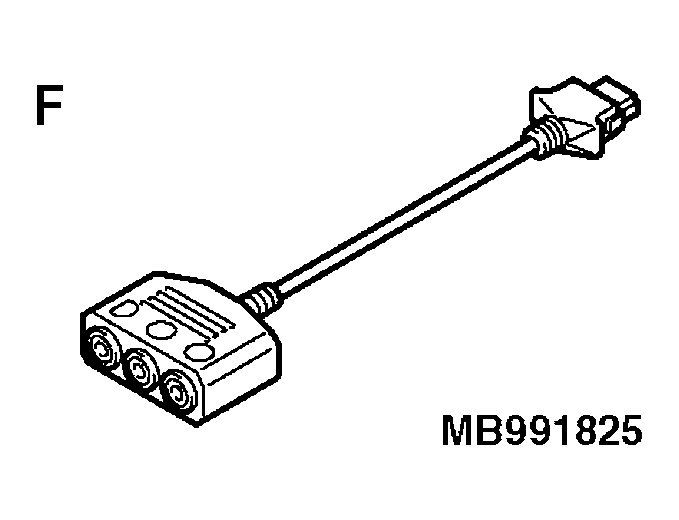

  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 SWS communication line check (ECU check and service data)
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G04257053

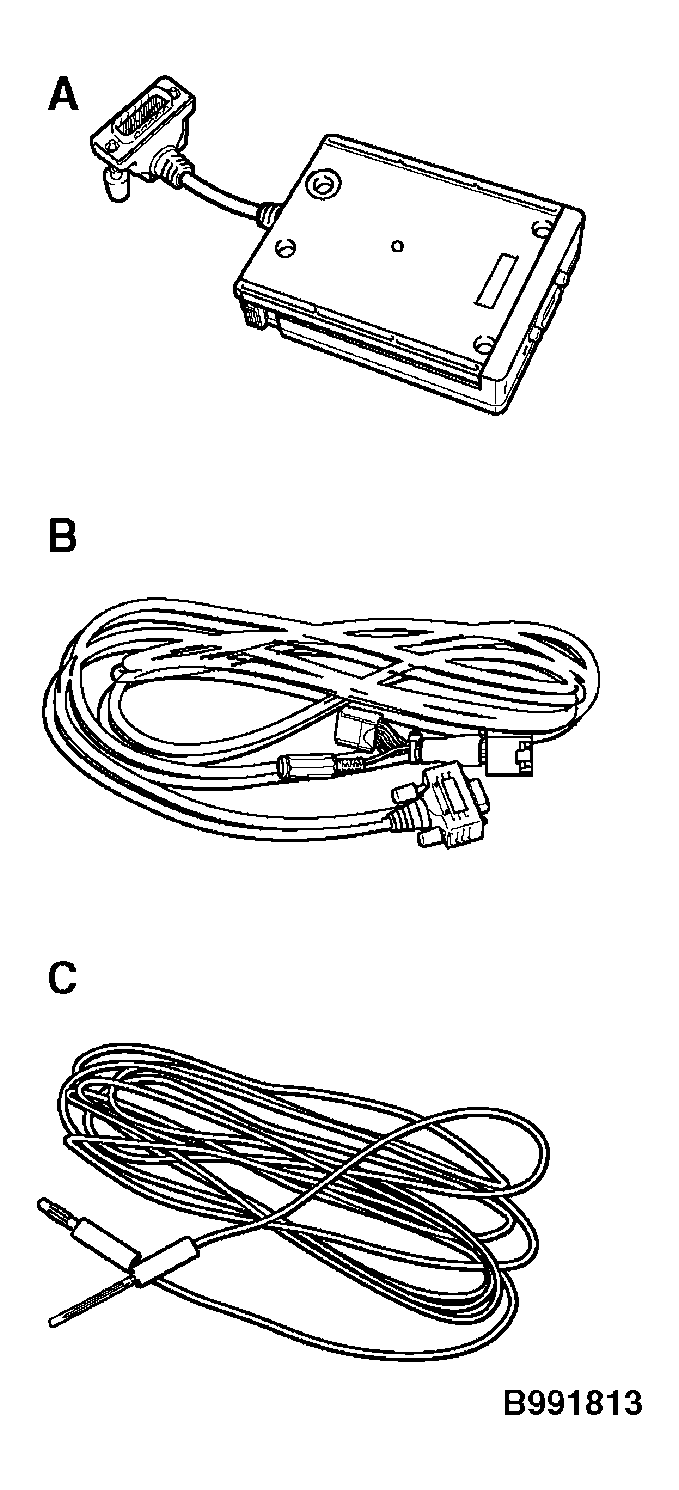

 MB991813
  1. MB991806
  2. MB991812
  3. MB991822

SWS monitor kit
  1. SWS monitor cartridge
  2. SWS monitor harness (for column-ECU)
  3. Probe harness
 - SWS communication line check (ECU check and service data)
G04257054

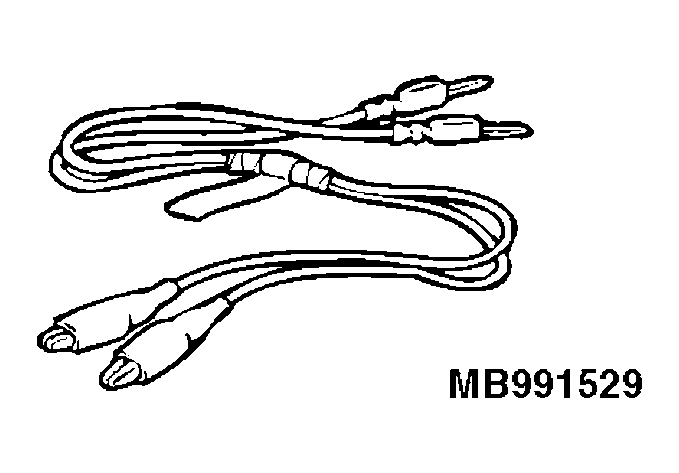

 MB991529 Diagnostic trouble code check harness Tool not necessary if the scan tool (M.U.T.-III) is available Checking input signal when using a voltmeter
G04257055

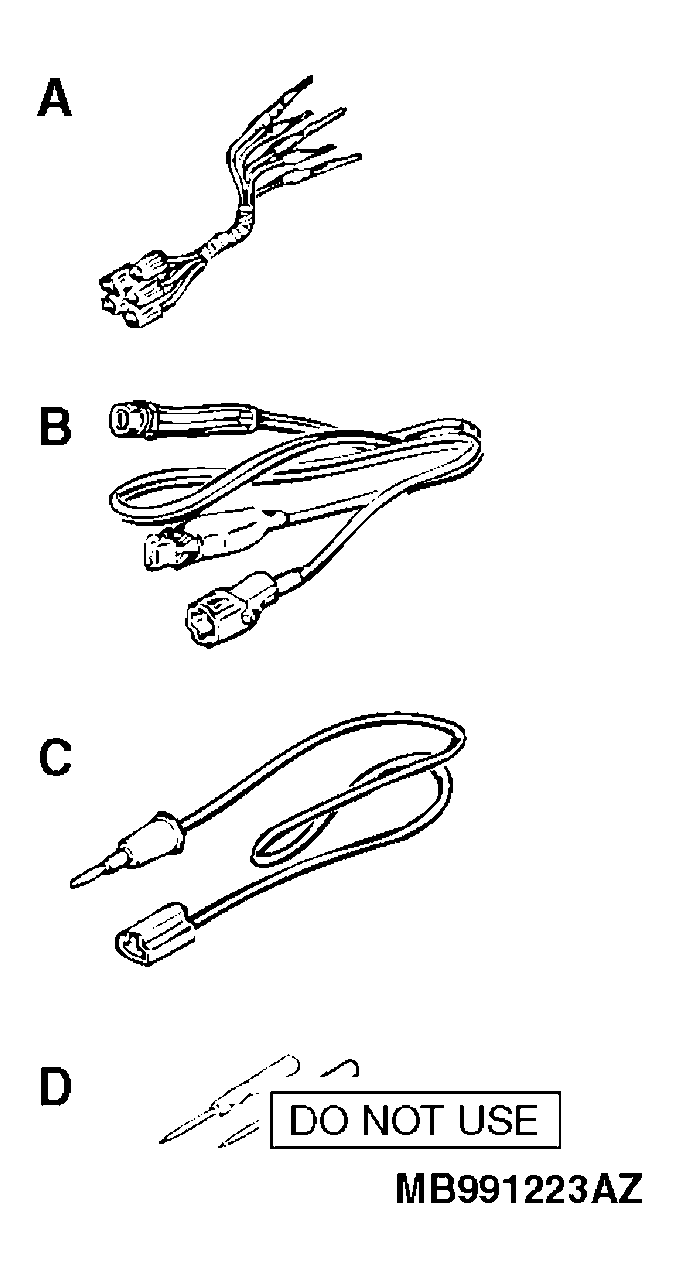

 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G04257056

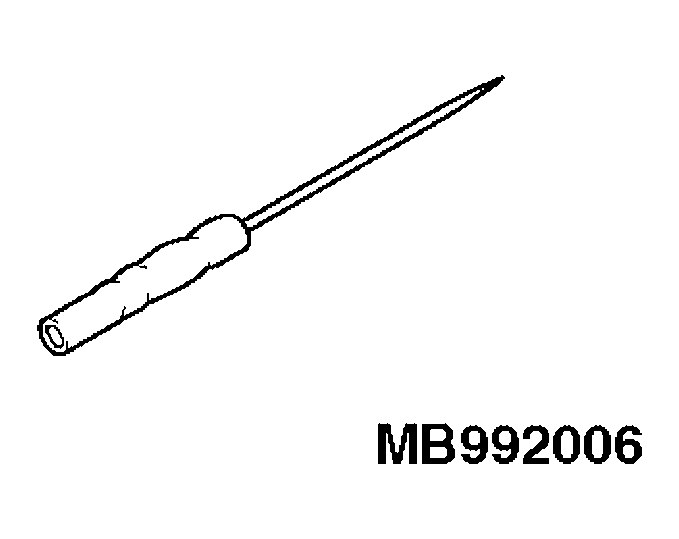

 MB992006 Extra fine probe General service tool Making voltage and resistance measurement during troubleshooting
