DTC B1487: Passenger seat belt warning Light Drive Circuit System Fault 1 (Light does not Switch Off).: Notes

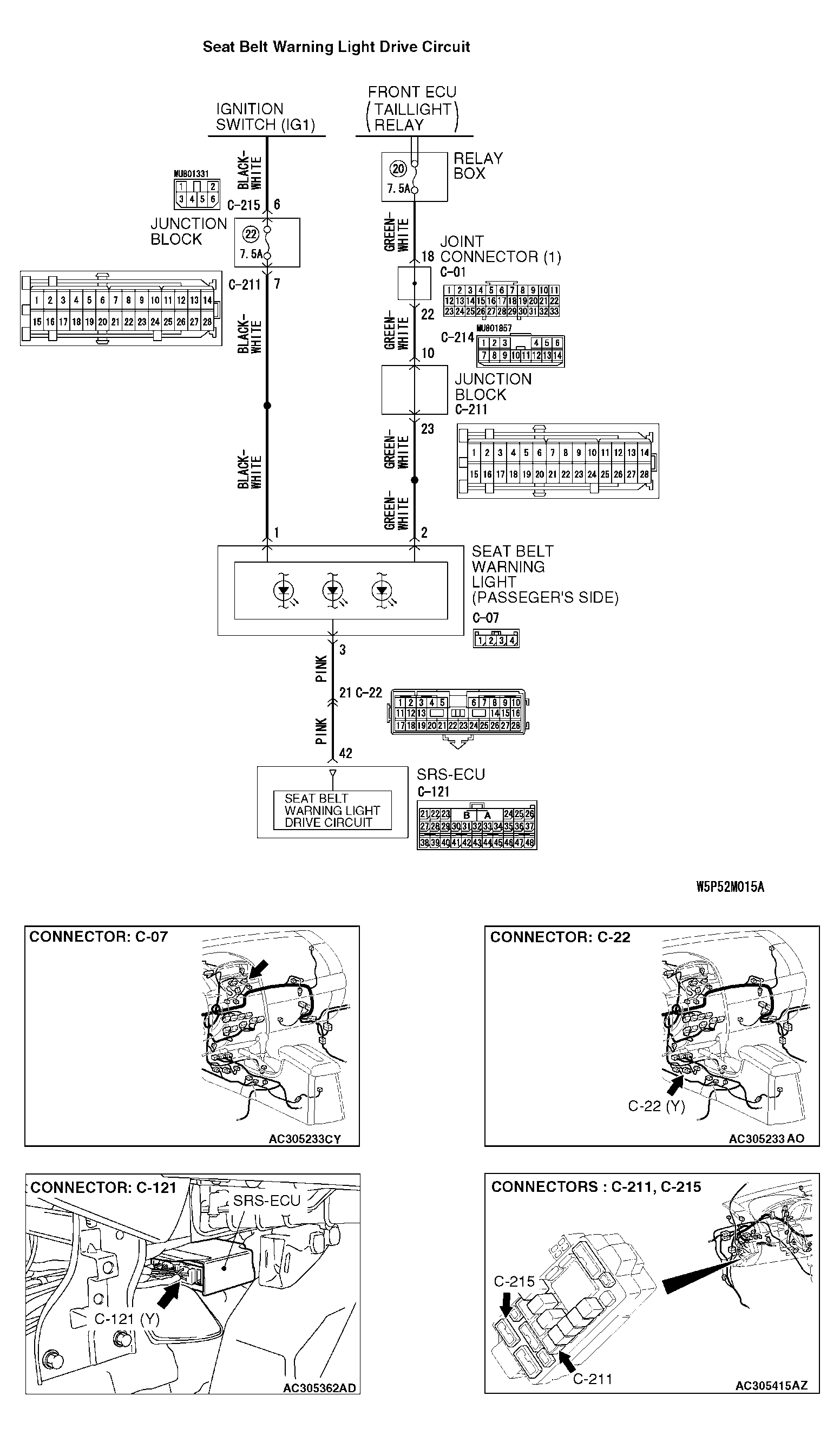

Fig 1: Seat Belt Warning Light Drive Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1487 is set in the SRS-ECU, always diagnose the CAN main bus line.
