INSPECTION PROCEDURE 5: When the TCL Switch is Push On, TCL dose not Cancelled.: Notes

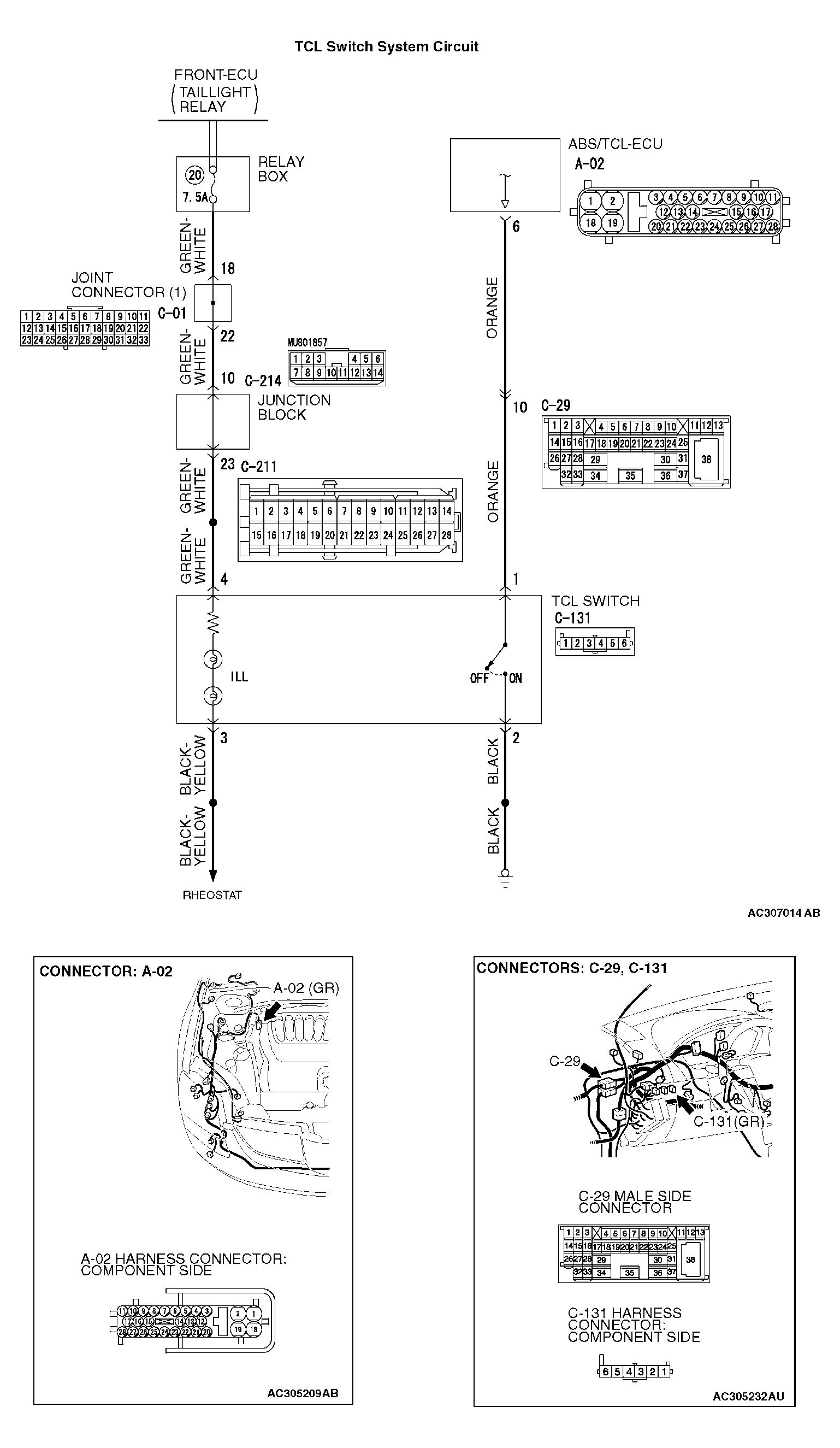

Fig 1: TCL Switch System Circuit

G04253837

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
