Disassembly And Assembly: Notes

NUMBER OF CLUTCH DISCS AND PLATES

CLUTCH REFERENCE CHART

  PRESSURE PLATE CLUTCH DISC CLUTCH PLATE CLUTCH REACTION PLATE
Over drive clutch 1 4 3 1
Reverse clutch - 2 2 1

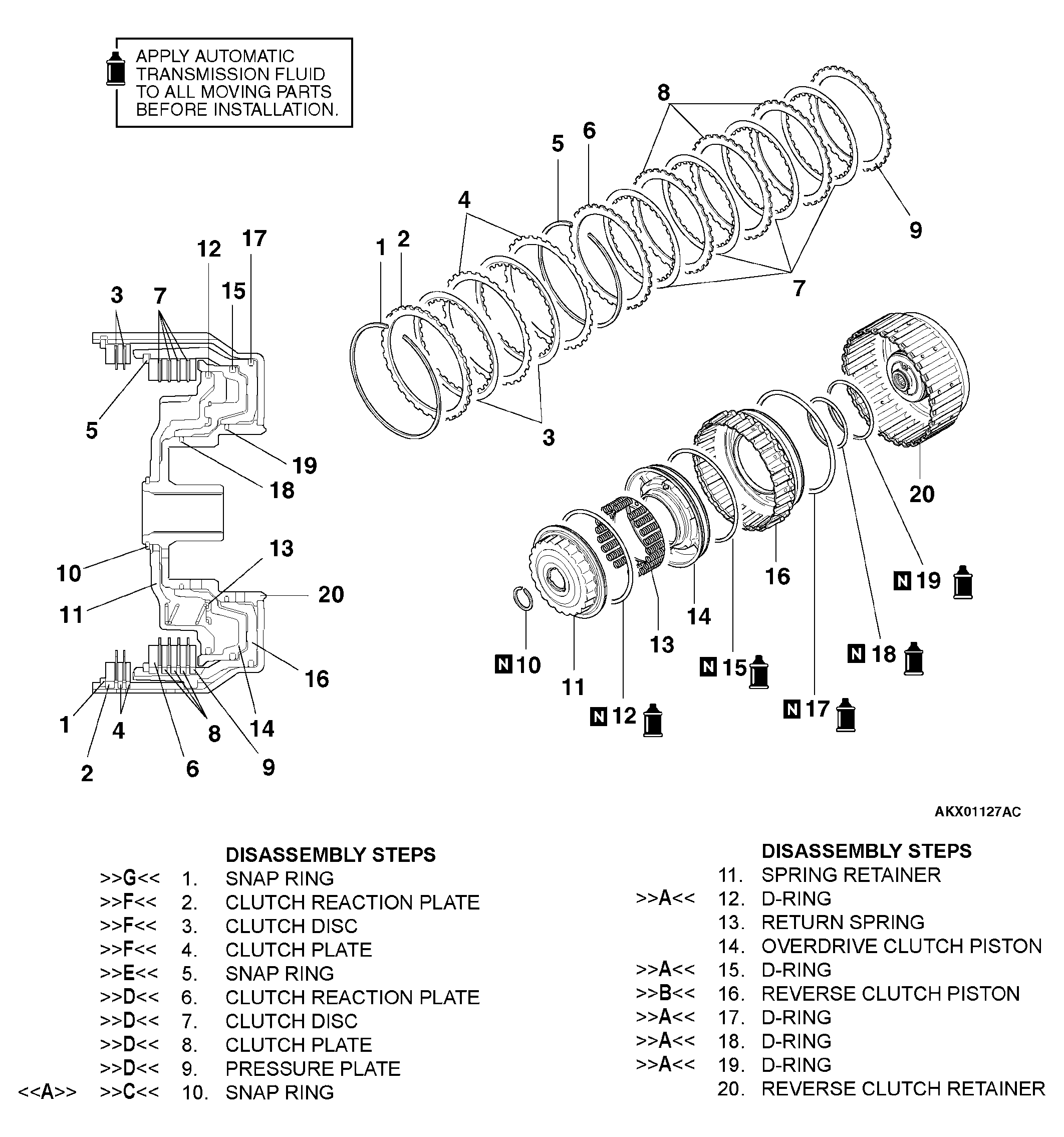

Fig 1: Disassembling/Assembling Reverse And Overdrive Clutch
G04311609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
