Home >> Mitsubishi >> 2006 >> Endeavor Limited, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Planetary Gear >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

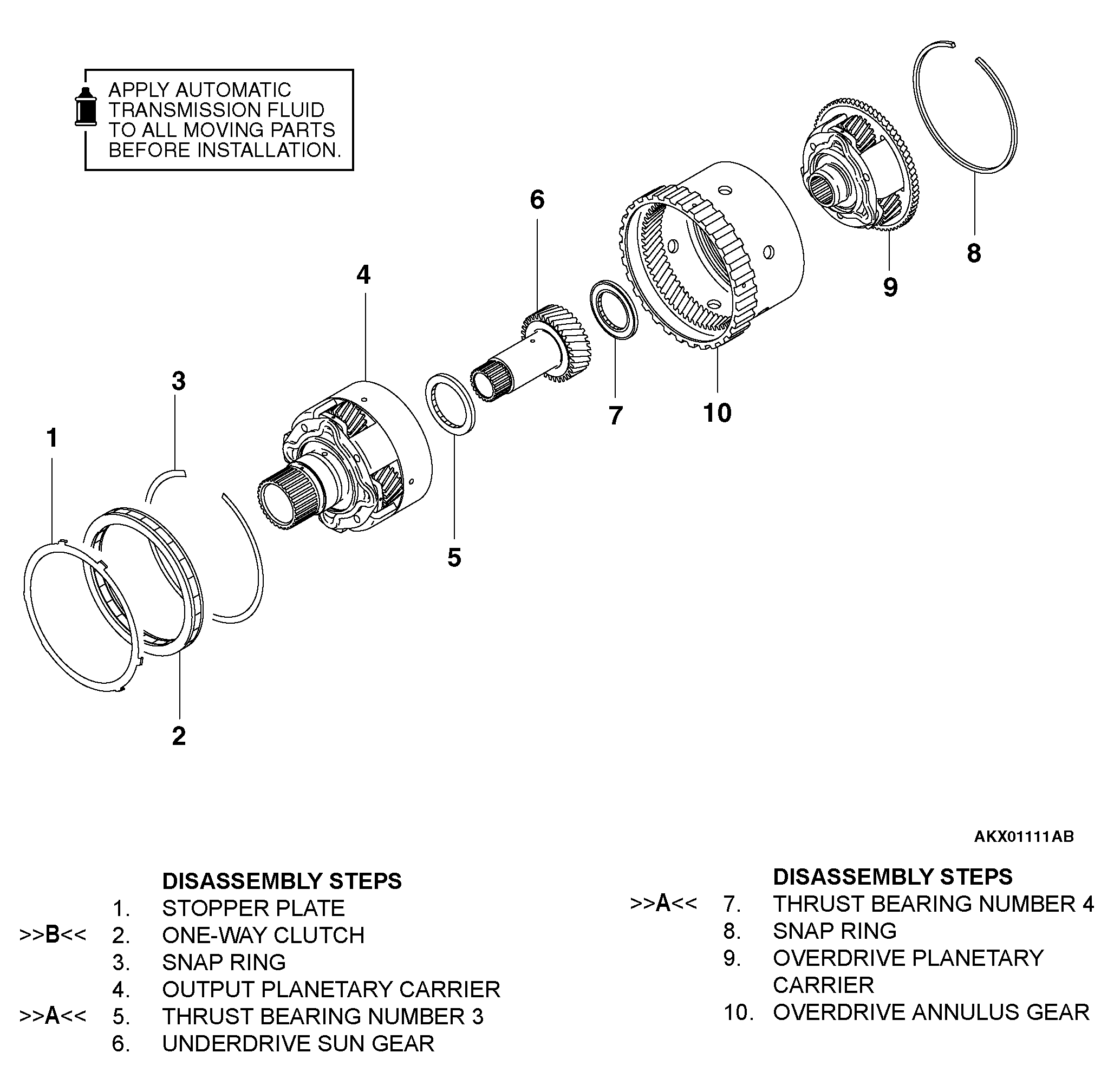

Fig 1: Disassembling/Assembling Planetary Gear
G04311619Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
