Removal And Installation: Notes

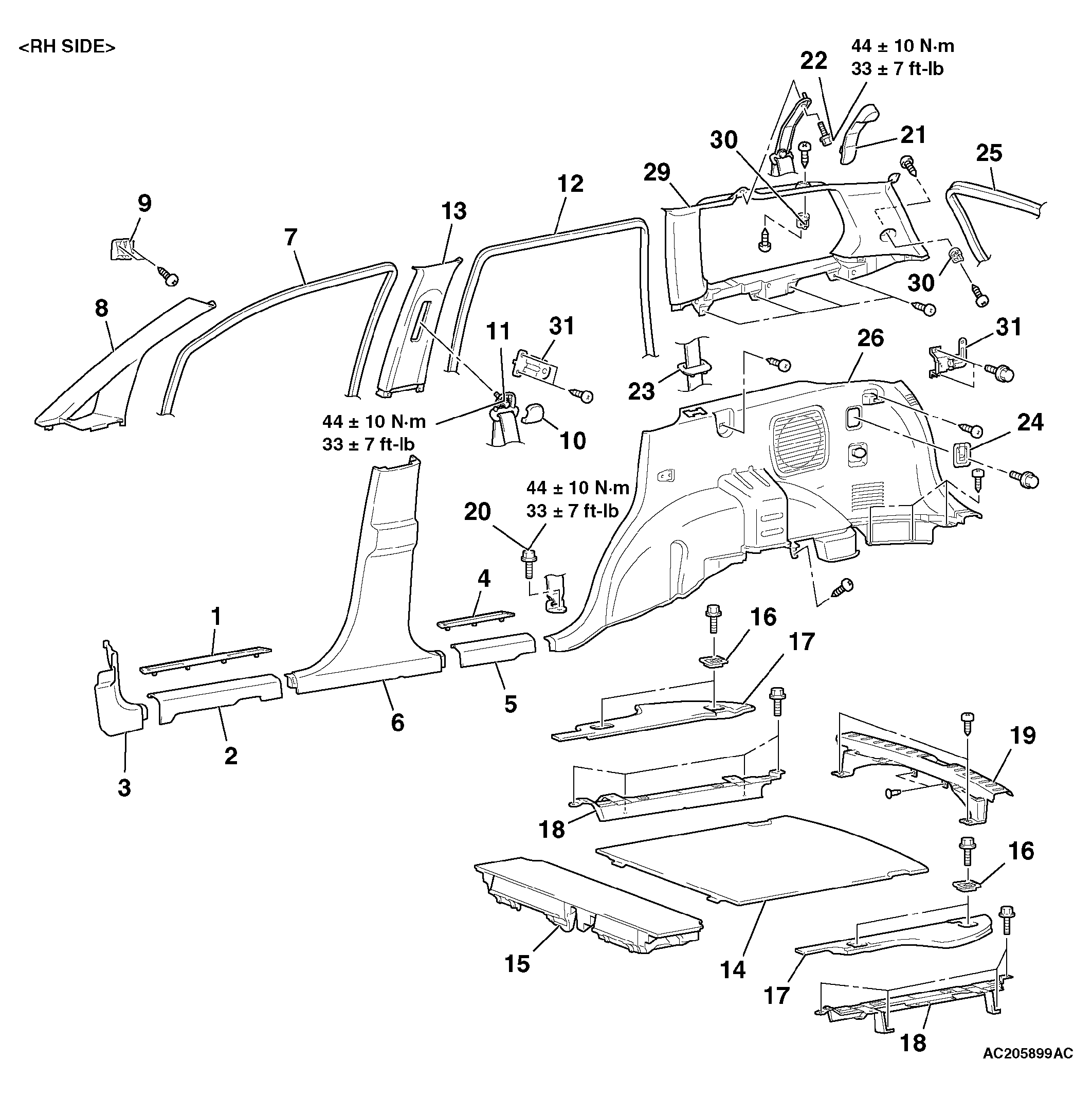

Fig 1: Exploded View Of Trim Components With Torque Specifications
G04288586Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

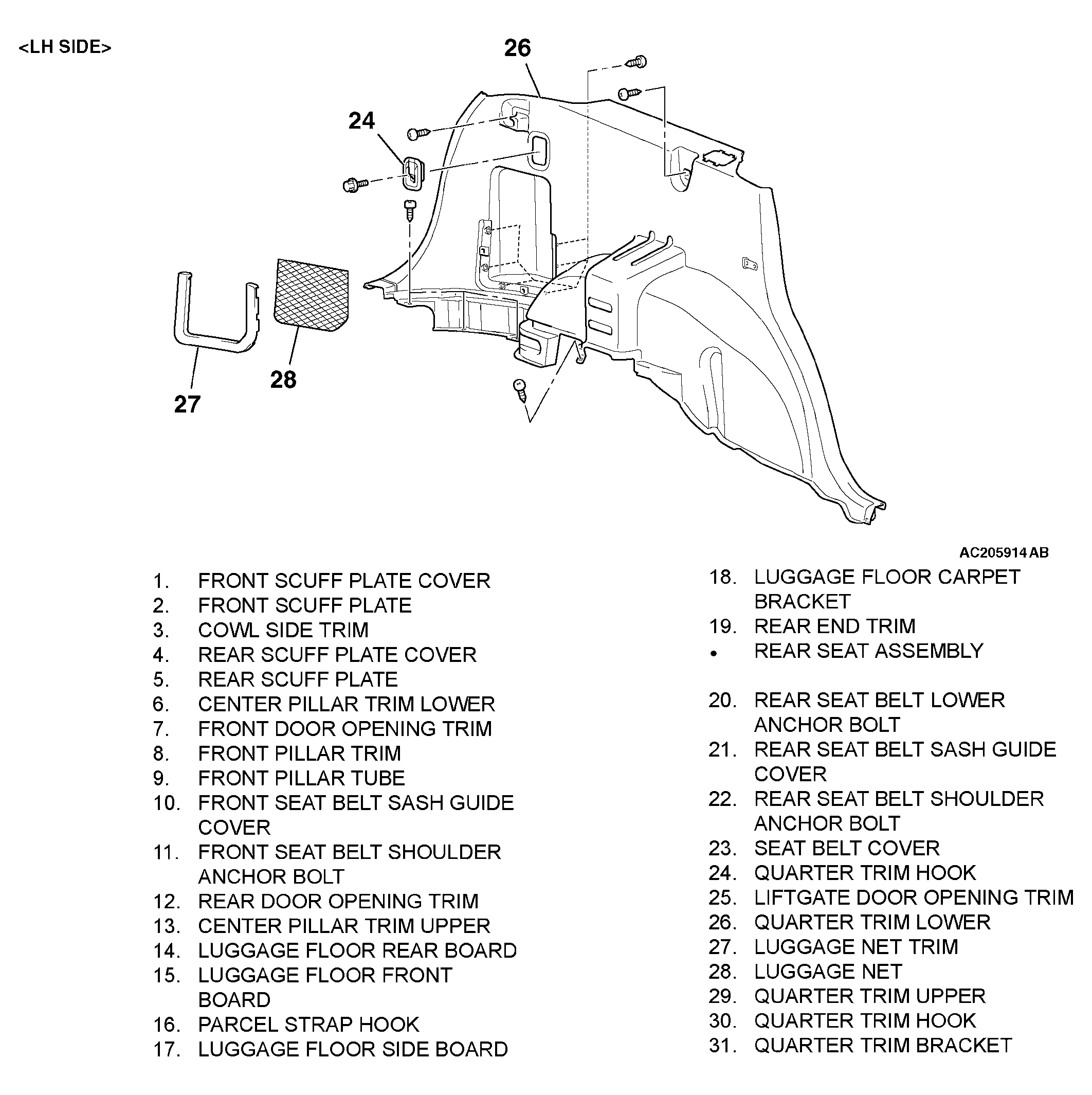

Fig 2: Removing And Installing Of Trims (2 Of 2)
G04288587Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
