Removal And Installation: Notes
CAUTION:
- For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULE AND CLOCK SPRING < Vehicles without advanced air bag >, AIR BAG MODULE AND CLOCK SPRING < Vehicles with advanced air bag >.
- Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING < Vehicles without advanced air bag >, AIR BAG MODULE AND CLOCK SPRING < Vehicles with advanced air bag > before removing the passenger side air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

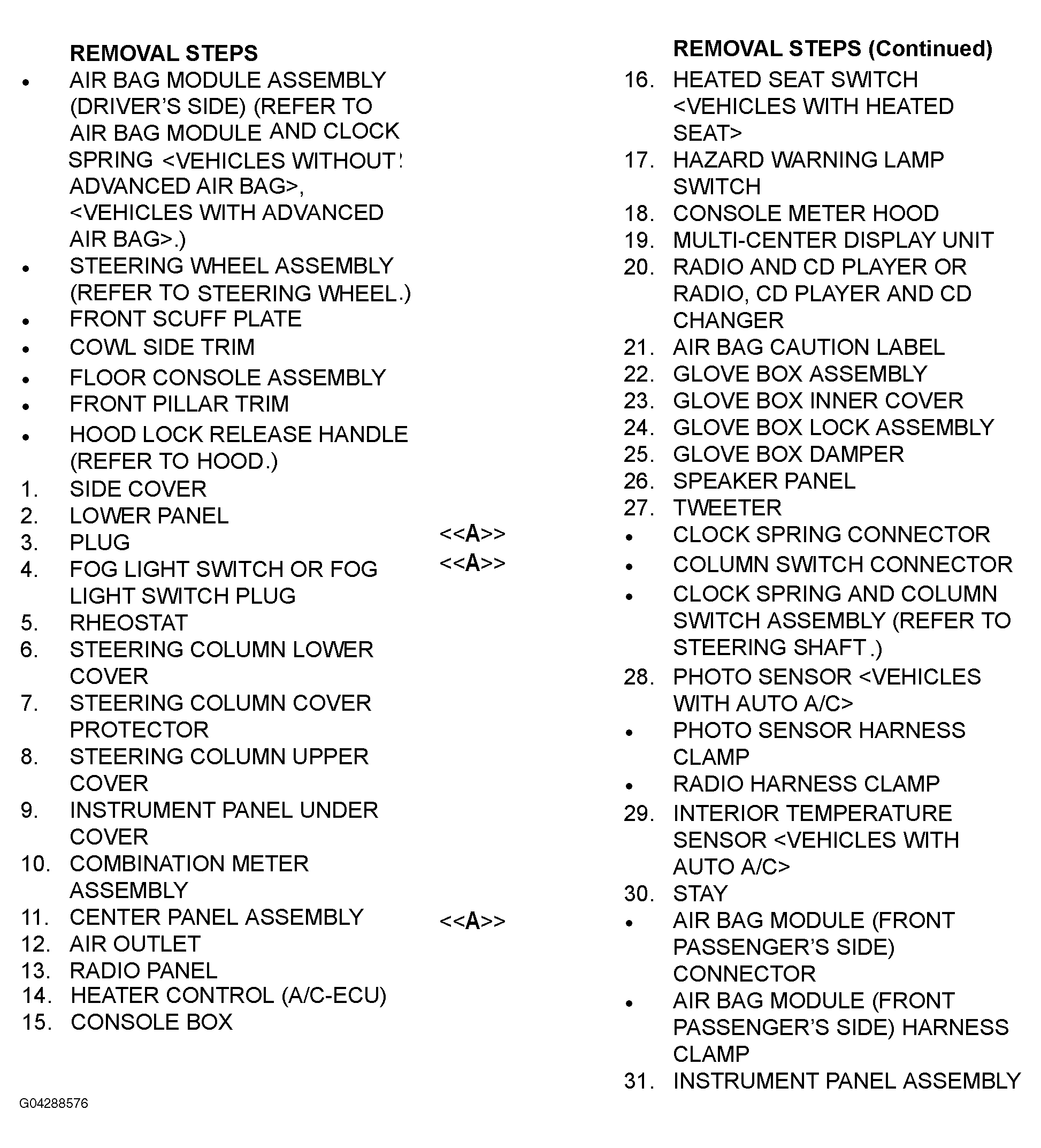

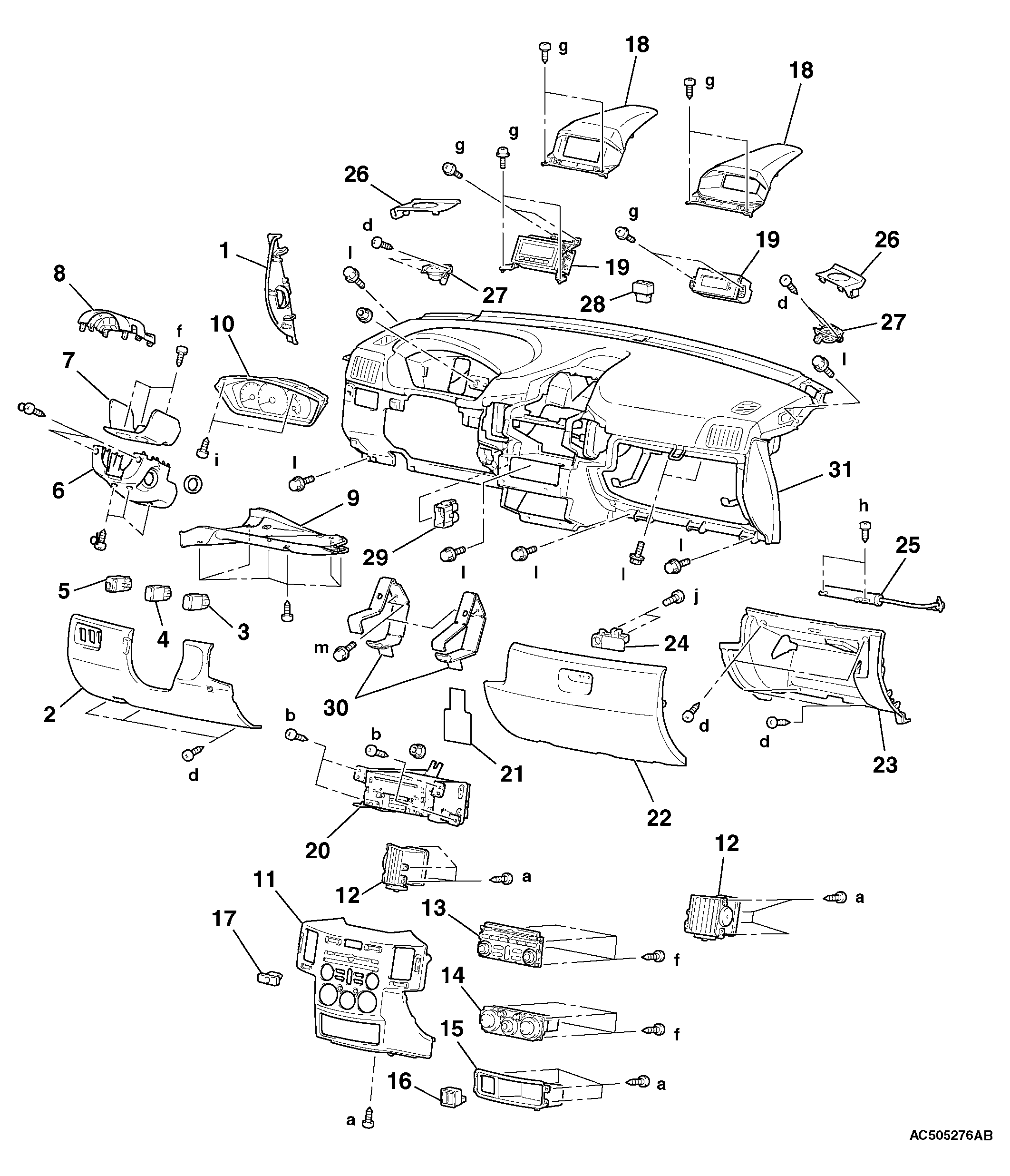

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."
BOLTS AND SCREWS DESCRIPTION
| NAME | SYMBOL | SIZE (D x L) mm | COLOR | SHAPE |
|---|---|---|---|---|
| TAPPING SCREW | a | 4 x 12 | - | |
| b | 5 x 12 | - | ||
| c | 5 x 12 | BLACK | ||
| d | 5 x 16 | - | ||
| e | 4 x 10 | - | ||
| f | 4 x 12 | - | ||
| g | 5 x 16 | - | ||
| h | 6 x 12 | - | ||
| i | 5 x 12 | BLACK | ||
| j | 8 x 15 | - | ||
| WASHER ASSEMBLY BOLT | k | 6 x 16 | - | |
| l | 6 x 16 | - | ||
| m | 6 x 25 | - |
