Home
>>
Mitsubishi
>>
2006
>>
Endeavor Limited, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Generator Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

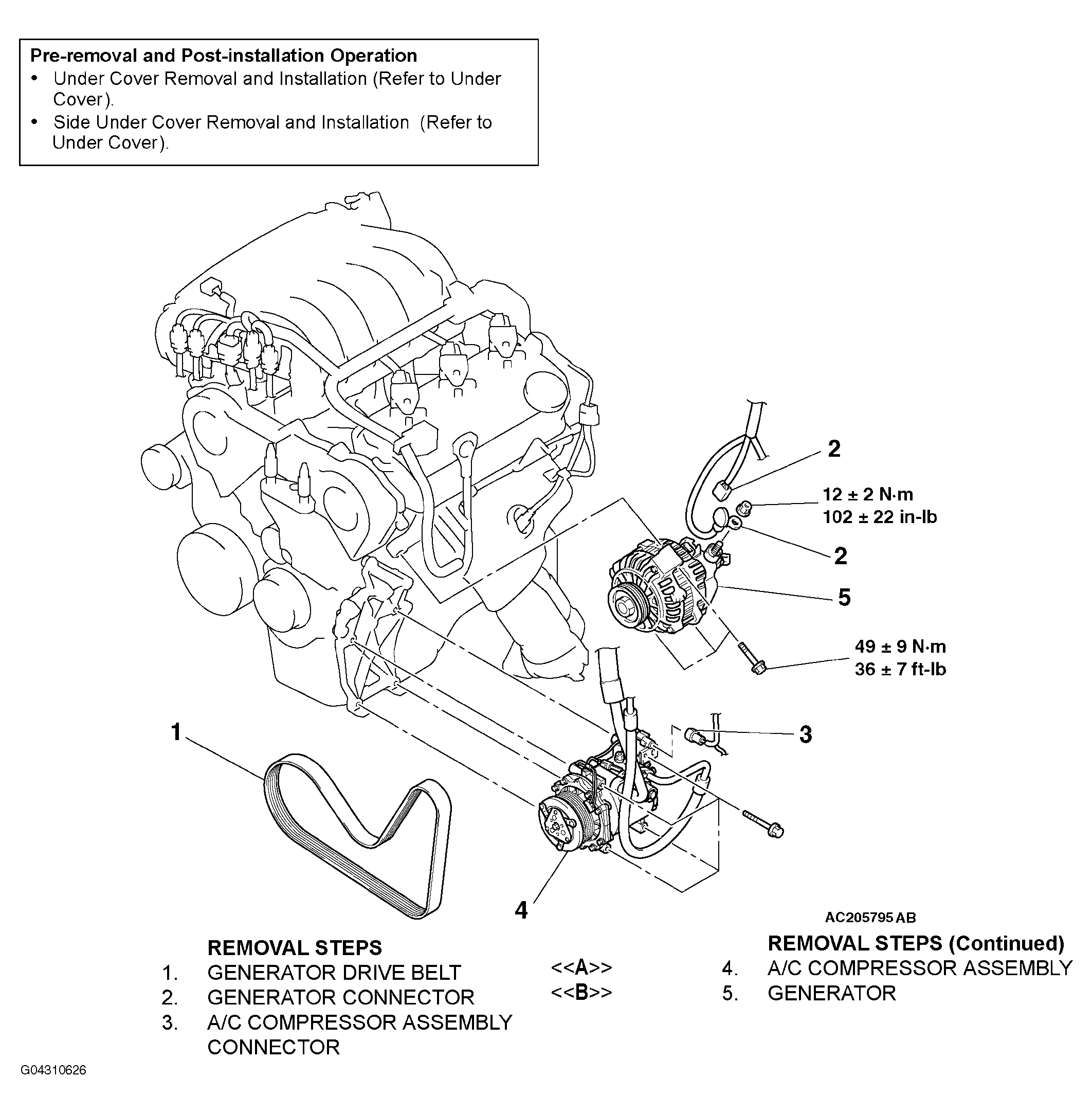

Fig 1: Removing And Installing Generator Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
