Disassembly And Assembly: Notes

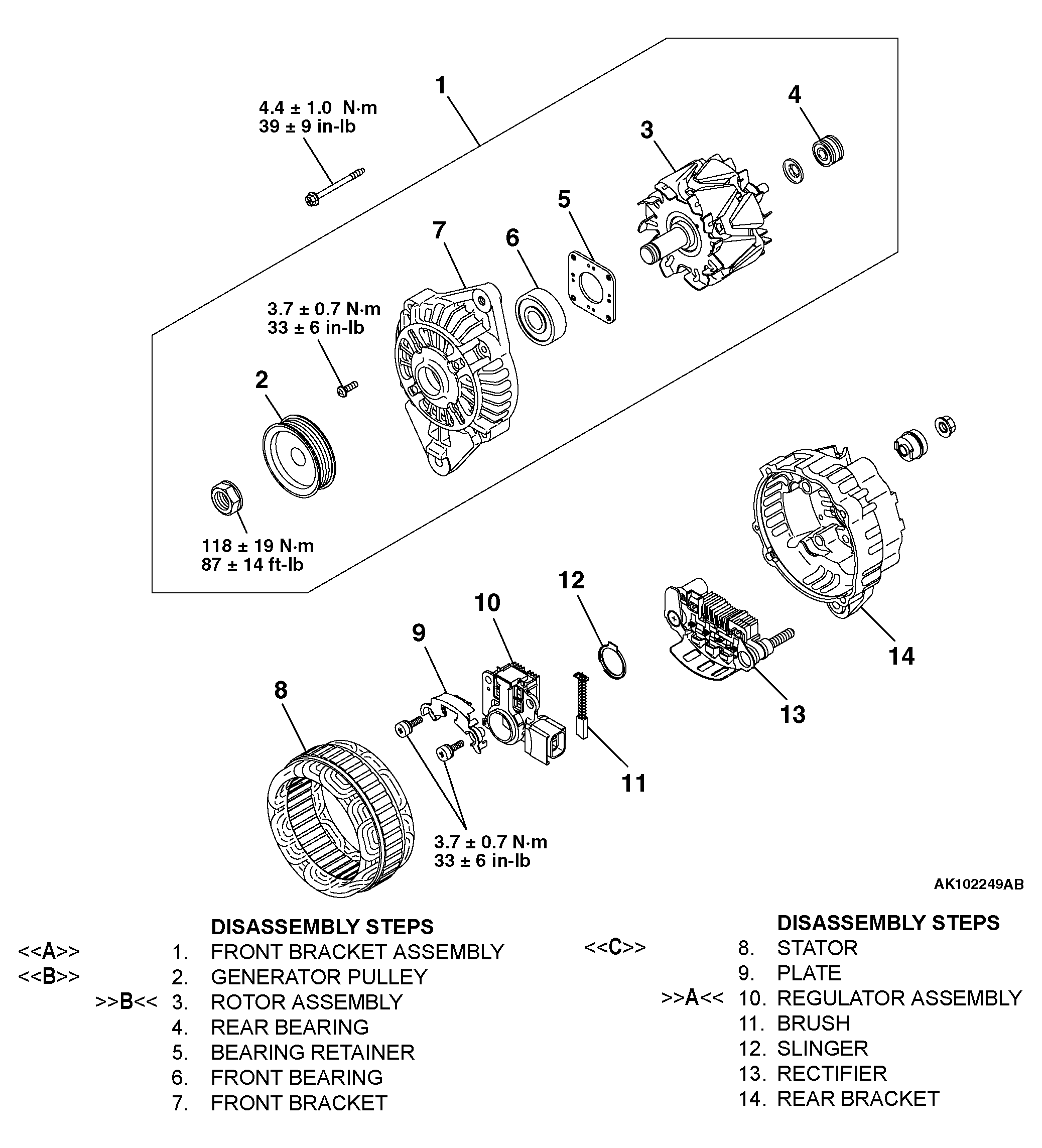

Fig 1: Exploded View Of Generator Assembly With Torque Specifications

G04310627

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
