Operation Check: Notes

Check that the following items. If faulty, replace the sunroof-ECU.

CAUTION: Check that the following items are normal before carrying out this operation check.
  1. Installation condition of the sunroof assembly
  2. Installation condition, deformation and contamination of the sunroof drive cable
  3. Installation of sunroof lid glass
  4. Sunroof switch and sunroof motor

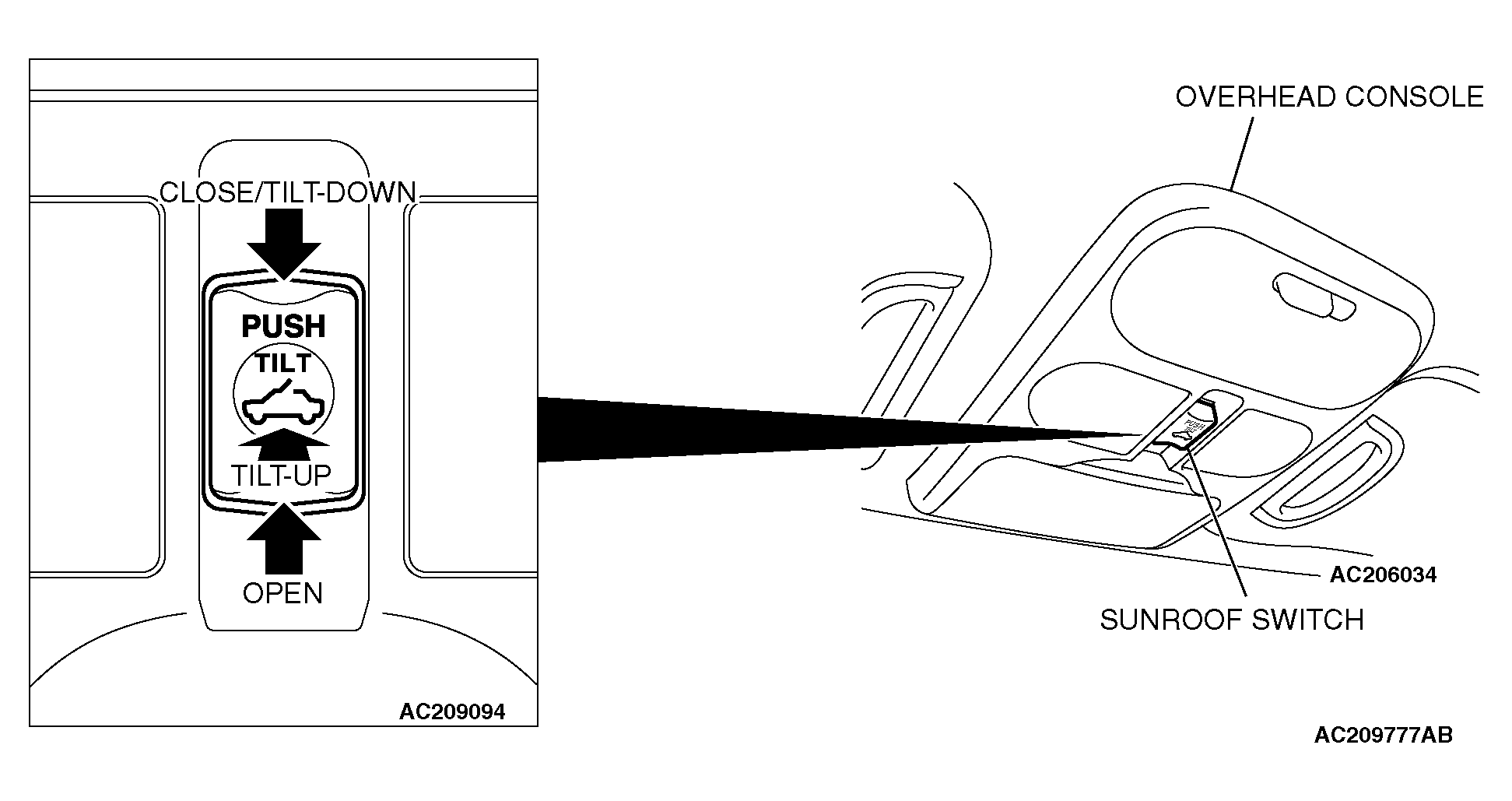

    Fig 1: Identifying Sunroof Switch
    G04312781Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
