Keyless Entry System: General Description: Transmitter

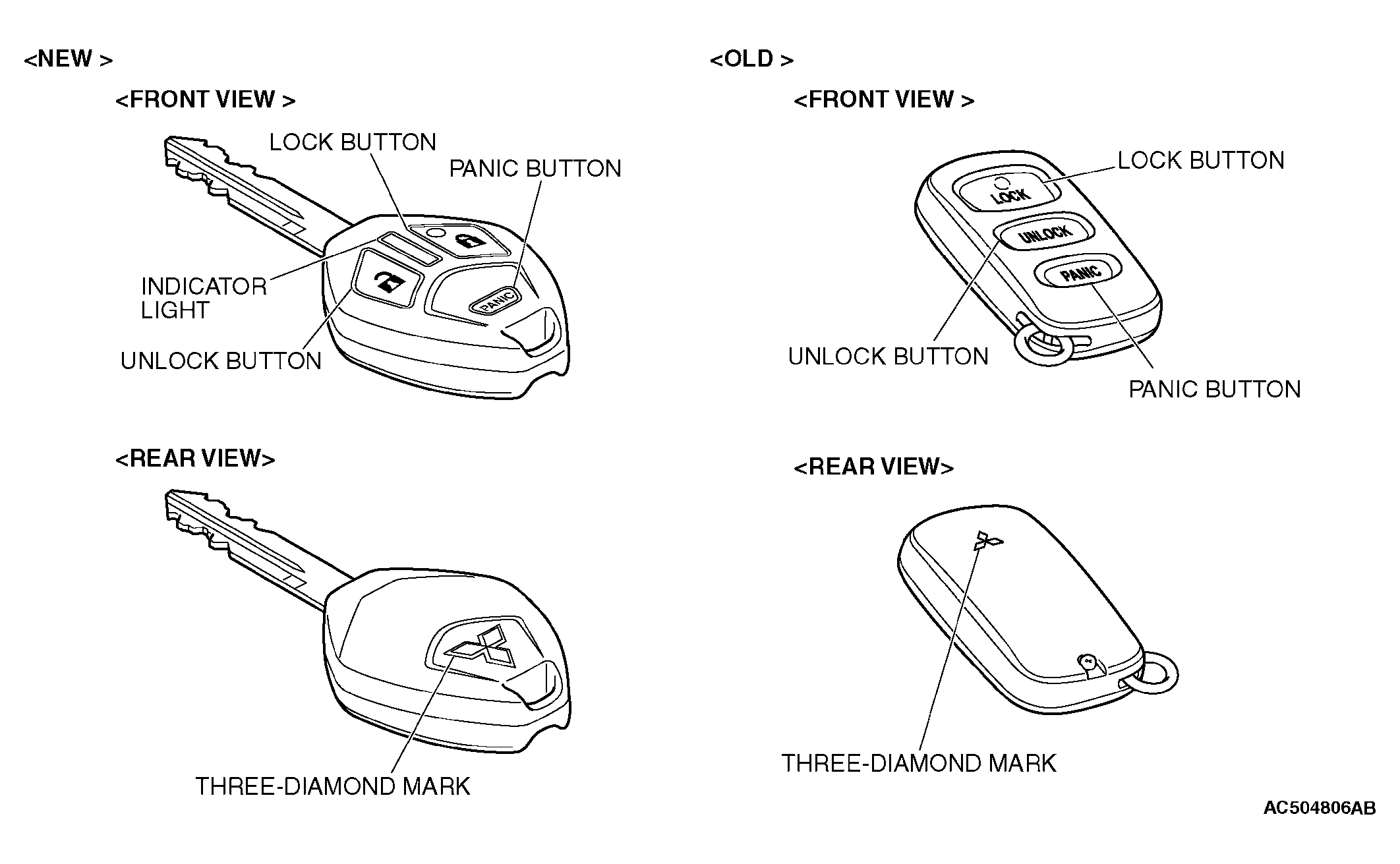

Fig 1: Identifying Key's Transmitter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The transmitter integrated into the key is used instead of the key holder type. The transmitter integrated into the key offer the following advantages.

• The transmitter is integrated into the master key. The 3-knob button is used, and the specific secret code is transmitted as a radio wave signal.
• A brilliant silver Three-diamond mark is stamped on the back side of the key grip.
• An indicator light, which illuminates when signals are received, is added on the key grip. This indicator lamp informs you of the signal transmission status and warns you of a flat battery in the transmitter.
• A signal transmission circuit (printed circuit) and a battery are housed in one case. The case is housed in the key grip, thus improving resistance to water intrusion.
• The functions of the immobilizer system are integrated.
