Disassembly And Assembly: Notes

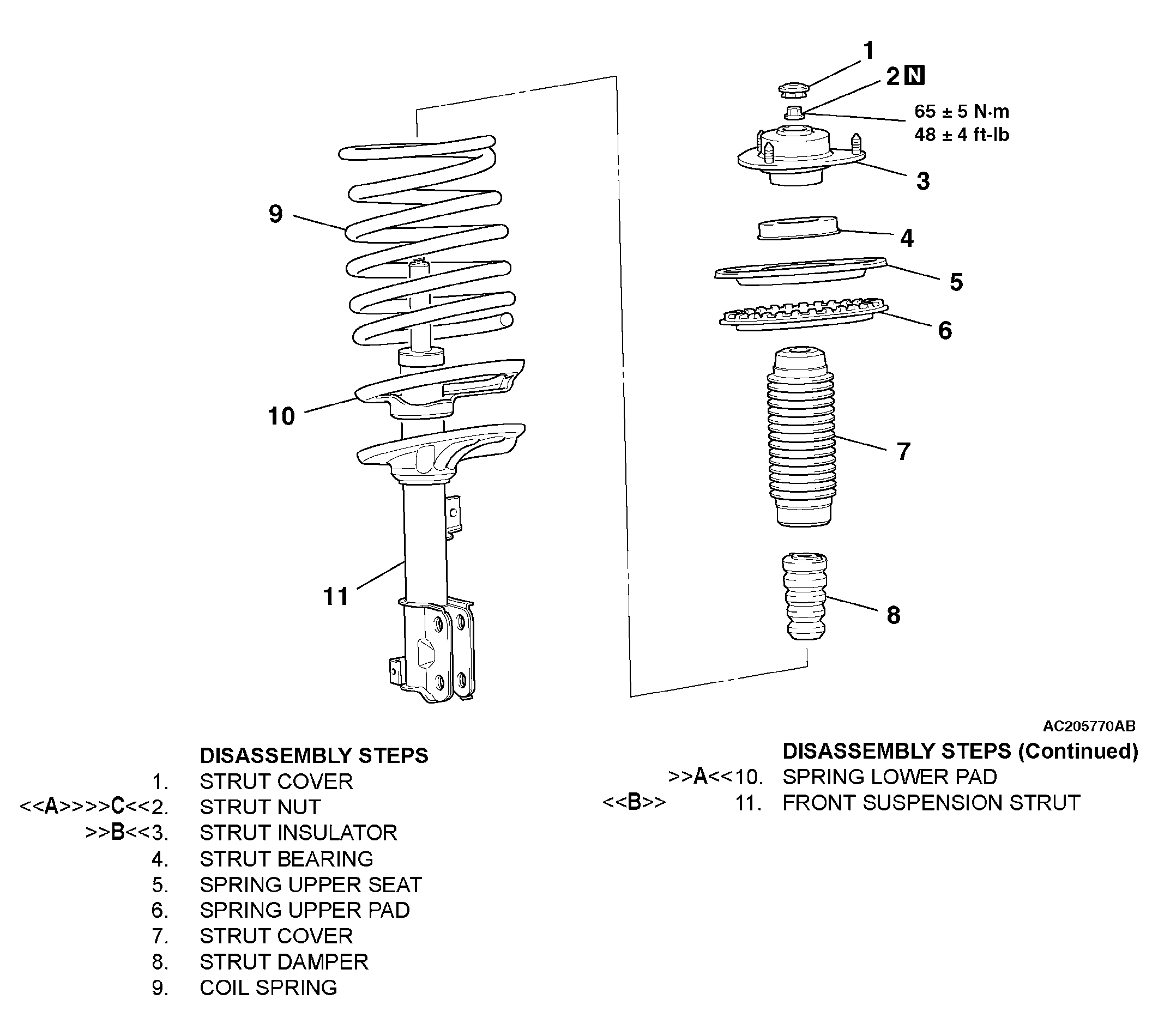

Fig 1: Exploded View Of Front Suspension Strut Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991237: Spring Compressor
• MB991238: Arm Set
• MB991681: Wrench and Socket Set
