Special Tools
SPECIAL TOOLS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

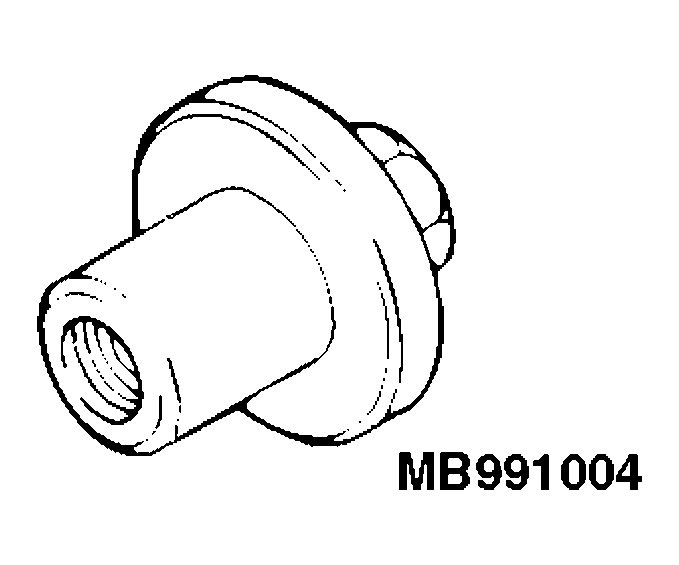

| MB991004 Wheel alignment gauge attachment |
MB991004-01 or General service tool | Wheel alignment measurement | |
|

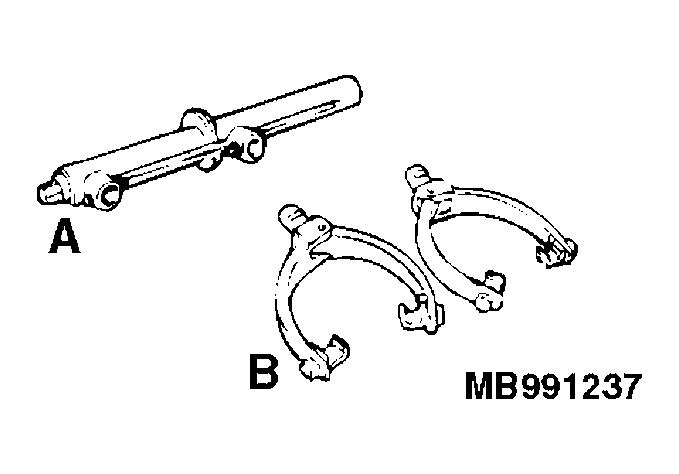

MIT221369 or general service tool | Front coil spring compression | |

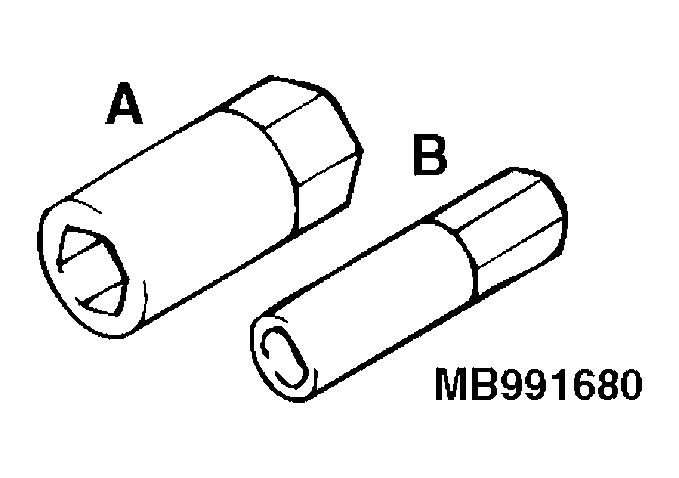

| MB991680 Wrench and socket set
|
- | Strut assembly disassembly and assembly | |

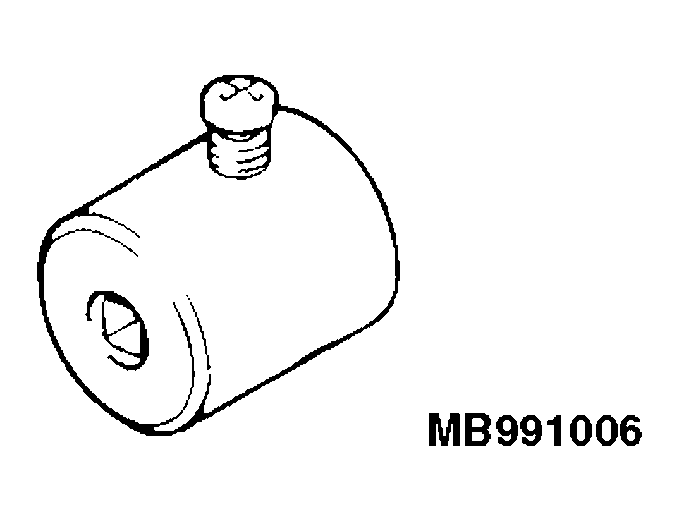

| MB991006 Preload socket |
MB990228-01 | Lower arm ball joint breakaway torque check | |

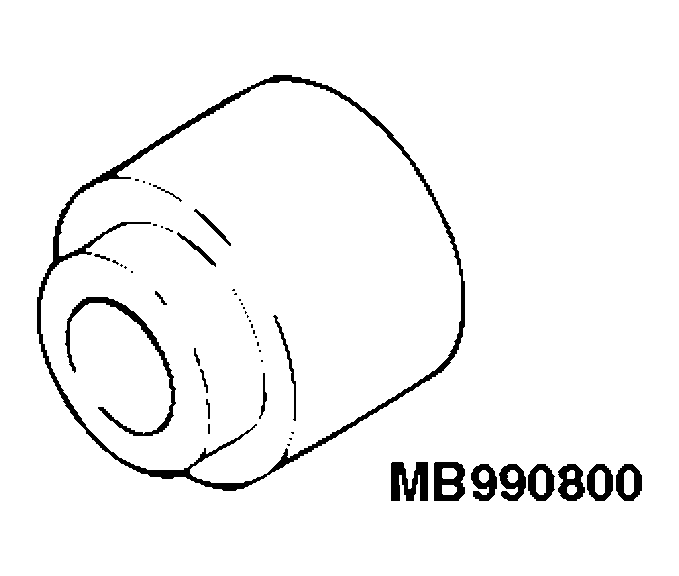

| MB990800 Ball joint dust cover installer |
MB990800-01 or General service tool | Lower arm ball joint dust cover installation | |

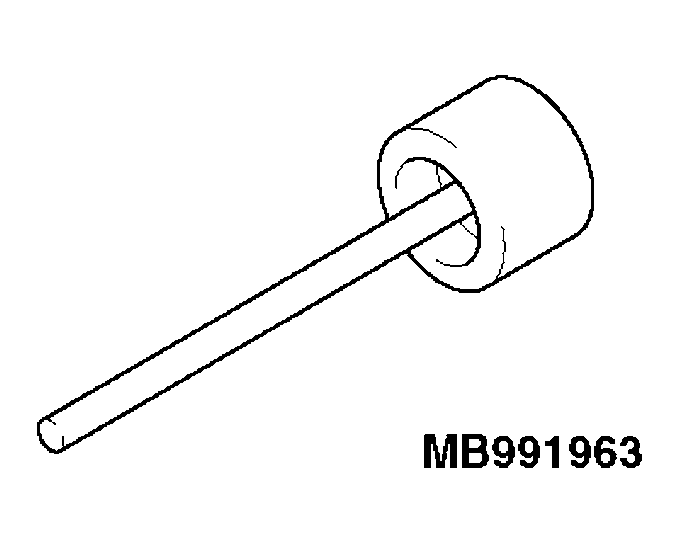

| MB991963 Suspension bushing arbor |
- | Lower arm bushing removal and press-fitting | |

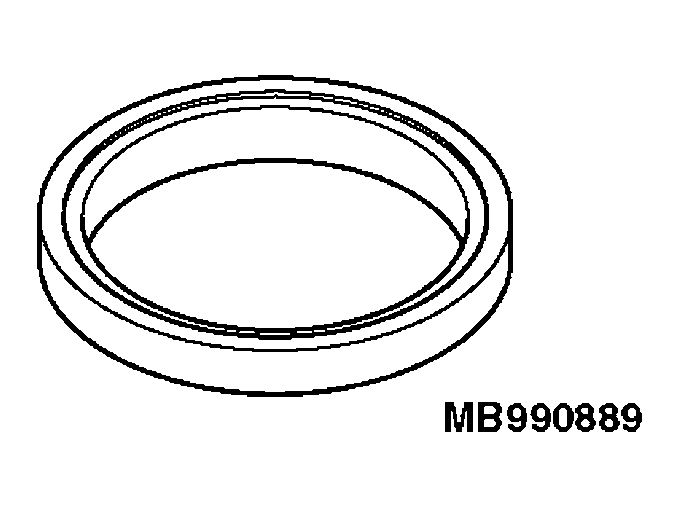

| MB990889 Rear suspension bushing ring |
- | ||

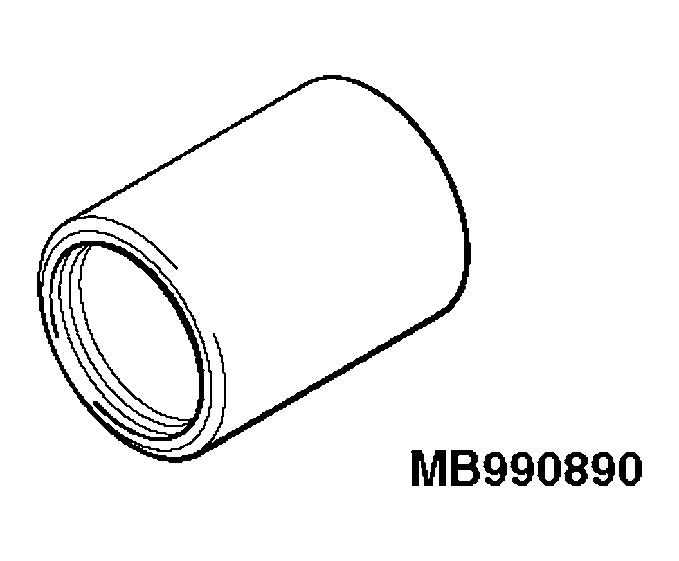

| MB990890 Rear suspension bushing base |
MB990890-01 or general service tool | ||
| MB991897 Ball joint remover |
MB991113-01, MB990635-01 or General service tool | Knuckle and tie rod end ball joint disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113) is also available to disconnect knuckle and tie rod end ball joint.
|
|

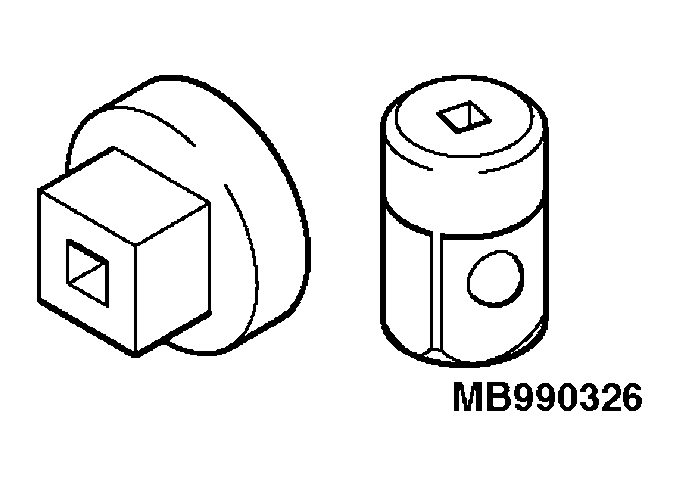

| MB990326 Preload socket |
General service tool | Stabilizer link ball joint breakaway torque check |
