Removal And Installation: Notes

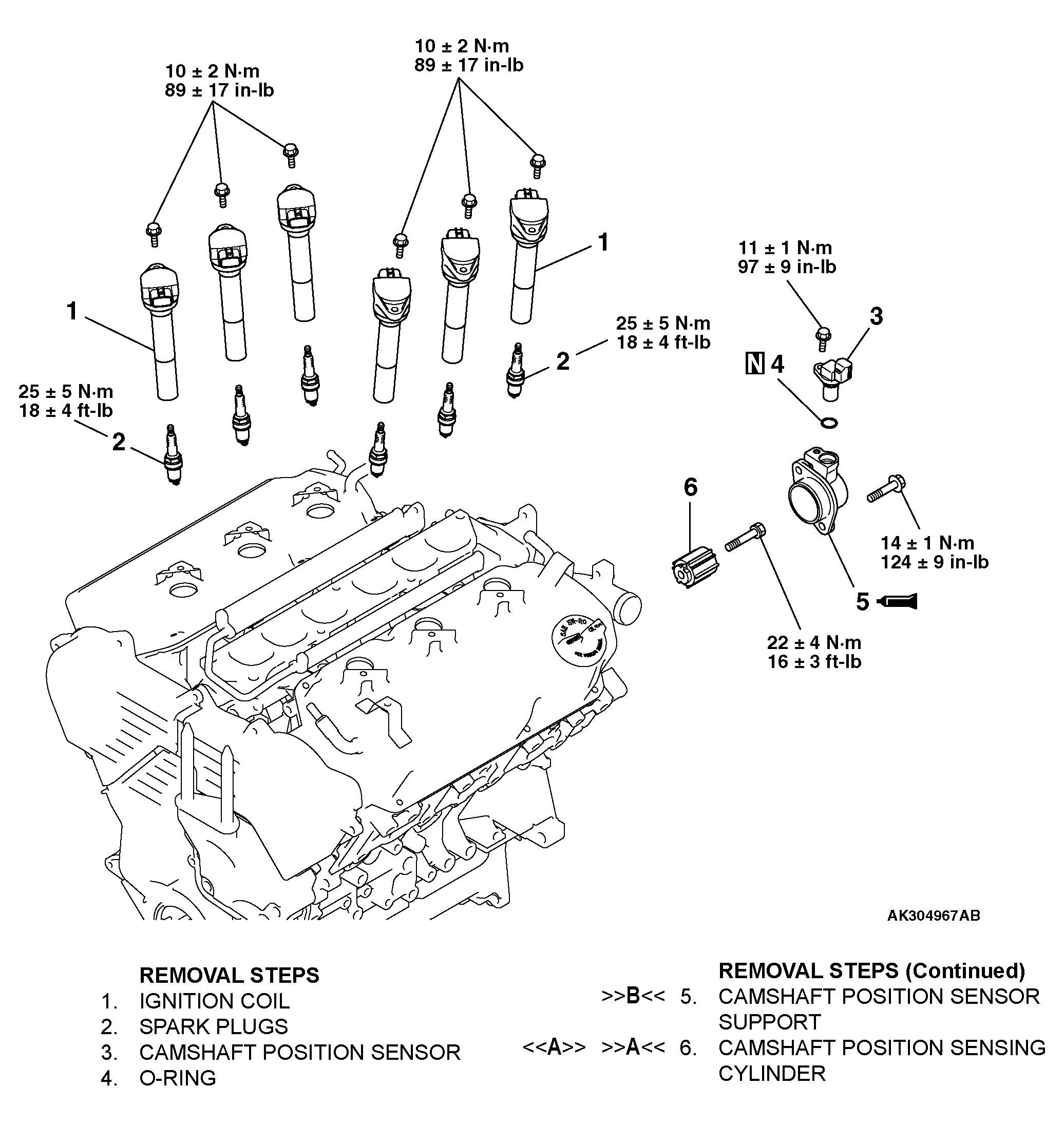

Fig 1: Removal And Installation Of Ignition System Components With Torque Specifications
G04280591Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
