LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2006
>>
Endeavor LS, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Emission Control
>>
Evaporative Emission Control System
>>
System Diagram
System Diagram

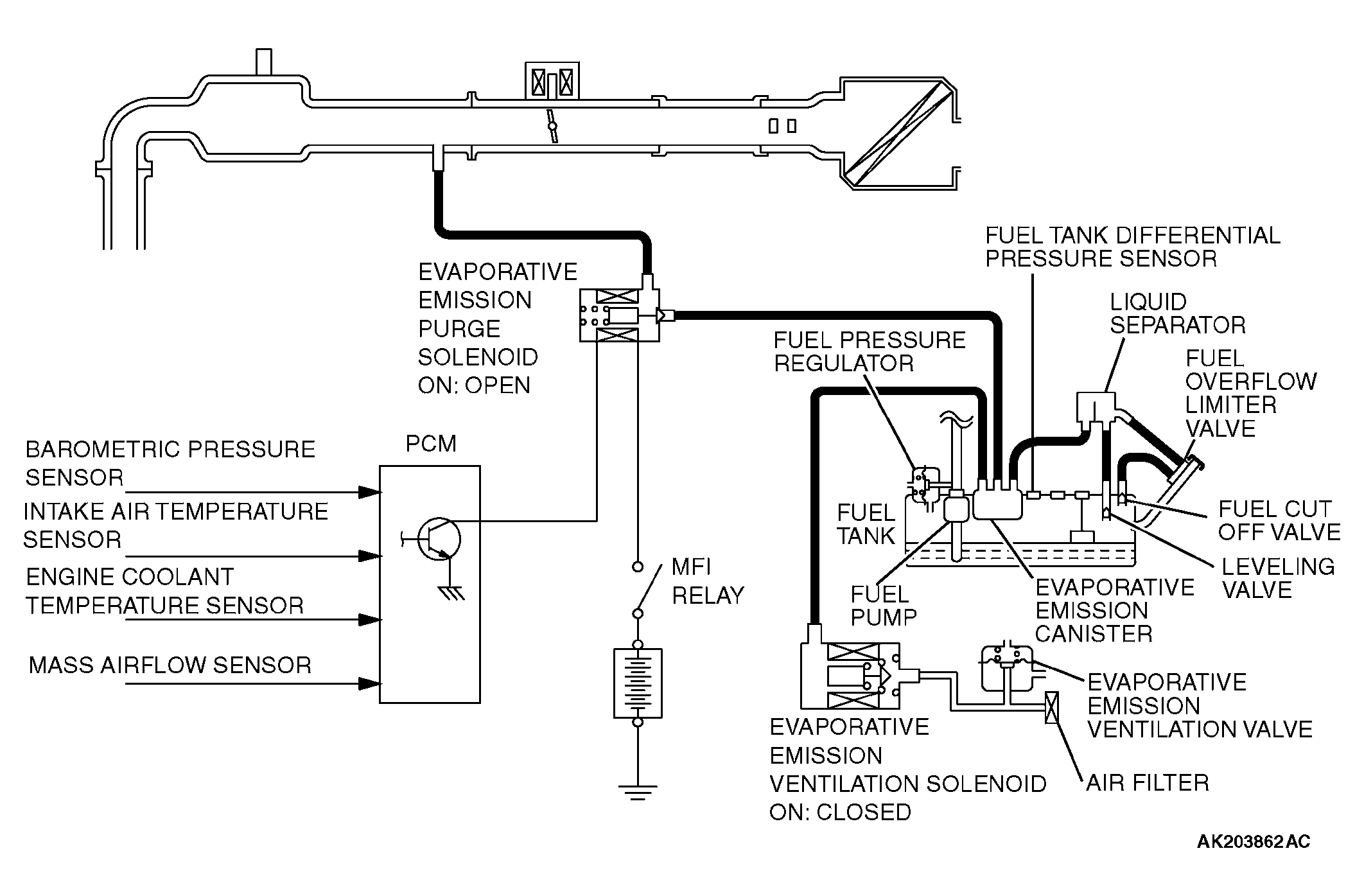

Fig 1: System Diagram - Evaporative Emission Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
