Endeavor LS, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Chassis Electrical
>>
Rear Window Defogger
>>
Rear Window Defogger Switch
>>
Inspection
>>
Rear Window Defogger Relay Continuity Check
Rear Window Defogger Relay Continuity Check
CONTINUITY CHECK
BATTERY VOLTAGE
CONNECT TESTER BETWEEN:
SPECIFIED CONDITION
Not applied
4 - 5
Open circuit
Connect terminal 1 to the positive battery terminal
Connect terminal 3 to the negative battery terminal
4 - 5
Less than 2 ohms

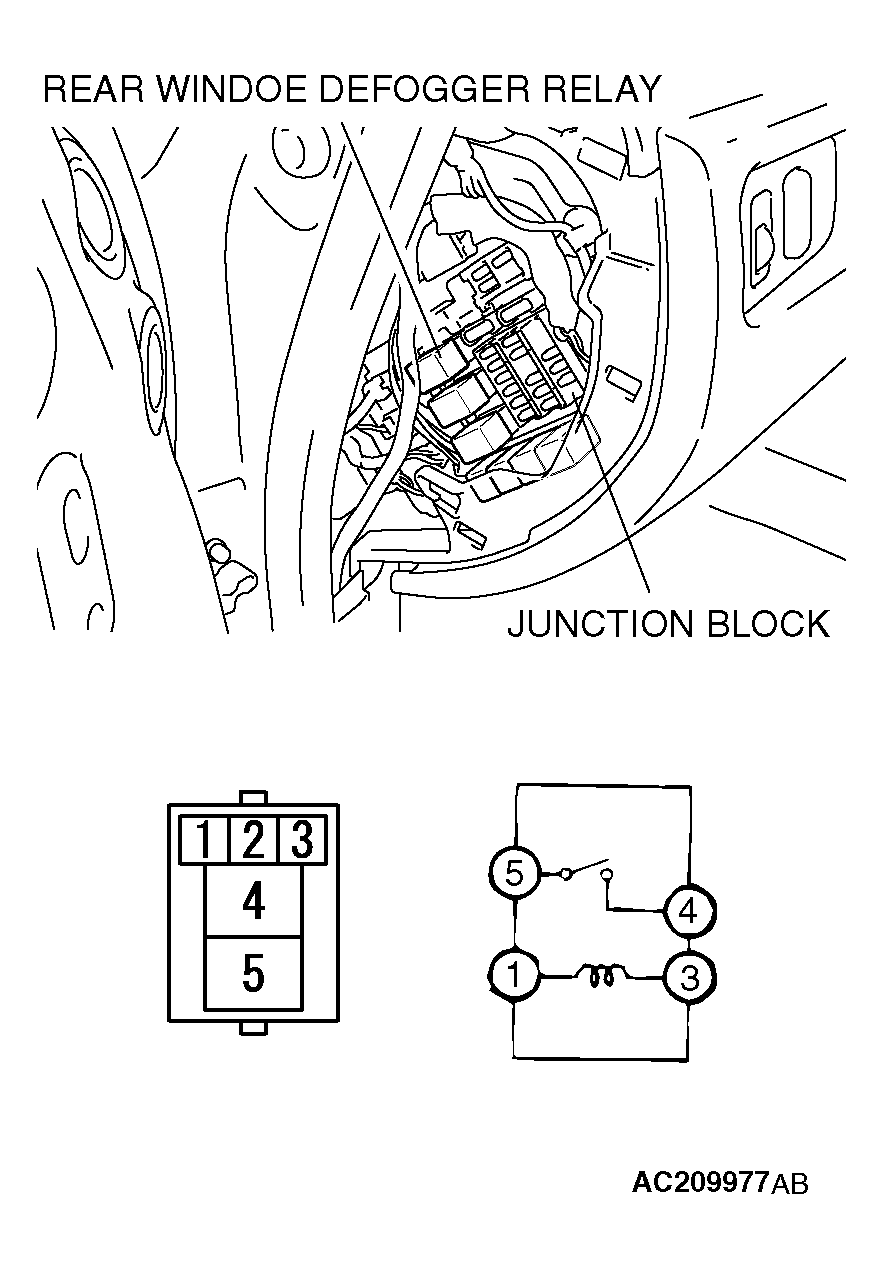

Fig 1: Checking Continuity Rear Window Defogger Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
