DTC B1488: Passenger Air Bag OFF Indicator Light Drive Circuit System Fault 2.: Notes

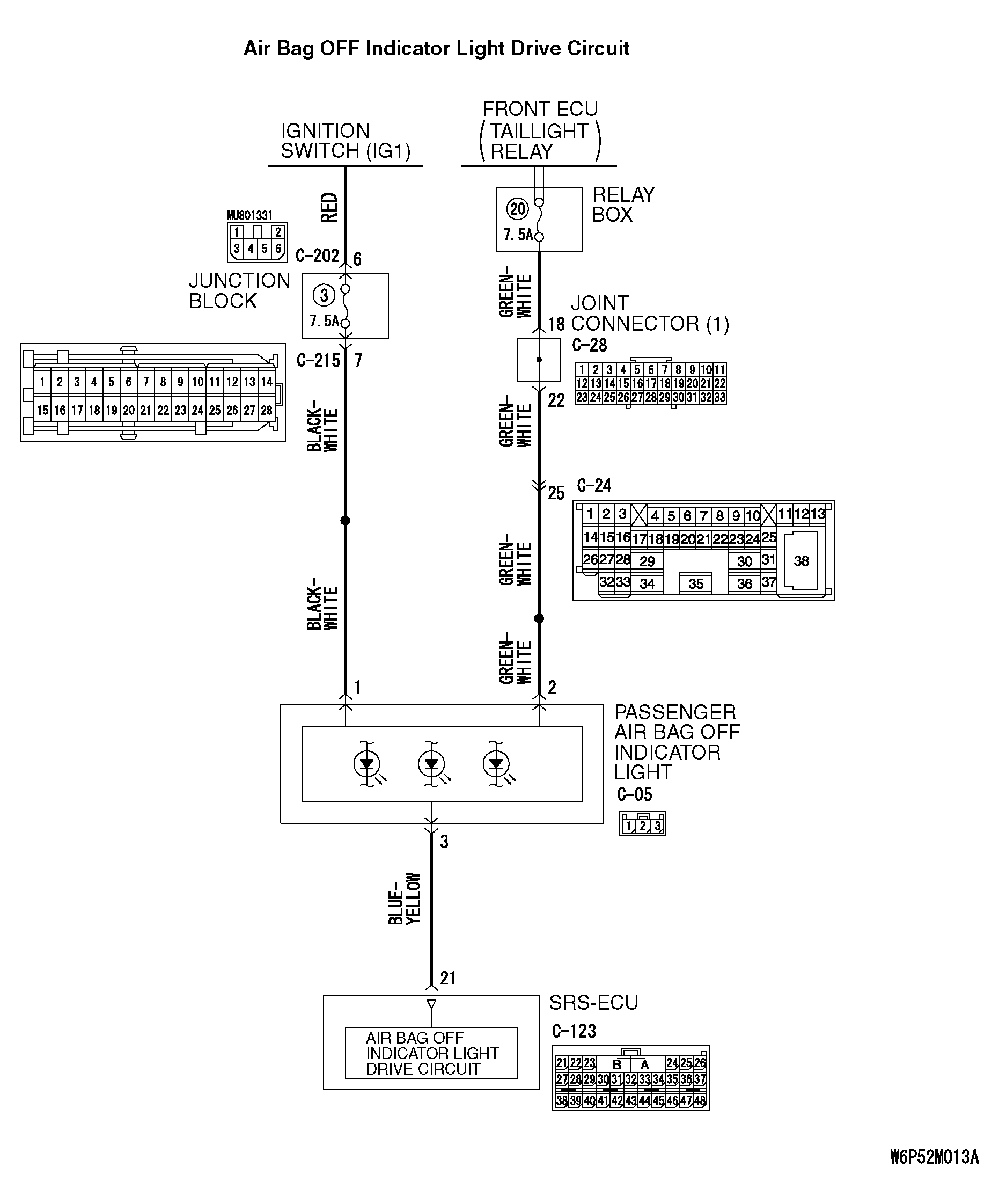

Fig 1: Air Bag OFF Indicator Light Drive Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1488 is set in the SRS-ECU, always diagnose the CAN main bus line.
